DSA E-Series (E2700) Turning on the power and checking for problems in an E2700 controller-drive tray configuration | en 57
Bosch Sicherheitssysteme GmbH Installation manual 2015.10 | V2 | DOC
1 Drive power Green The power is turned
on and the drive is
operating normally.
Drive I/O activity
is taking place.
The power is turned
off.
2 Drive service
action required
Amber An error has
occurred.
Normal status.
3 Drive service
action allowed
Blue The drive canister can
be removed safely
from the controller-
drive tray.
The drive canister
cannot be removed
safely from the
controller-drive tray.
Drive State Represented by LEDs
Drive state Drive power LED
(green)
Drive service action required
LED
(amber)
Power is not applied. Off Off
Normal operation –The power is turned on, but drive
I/O activity is not occurring.
On Off
Normal operation –Drive I/O activity is occurring. Blinking Off
Service action required –A fault condition exists, and
the drive is offline.
On Off

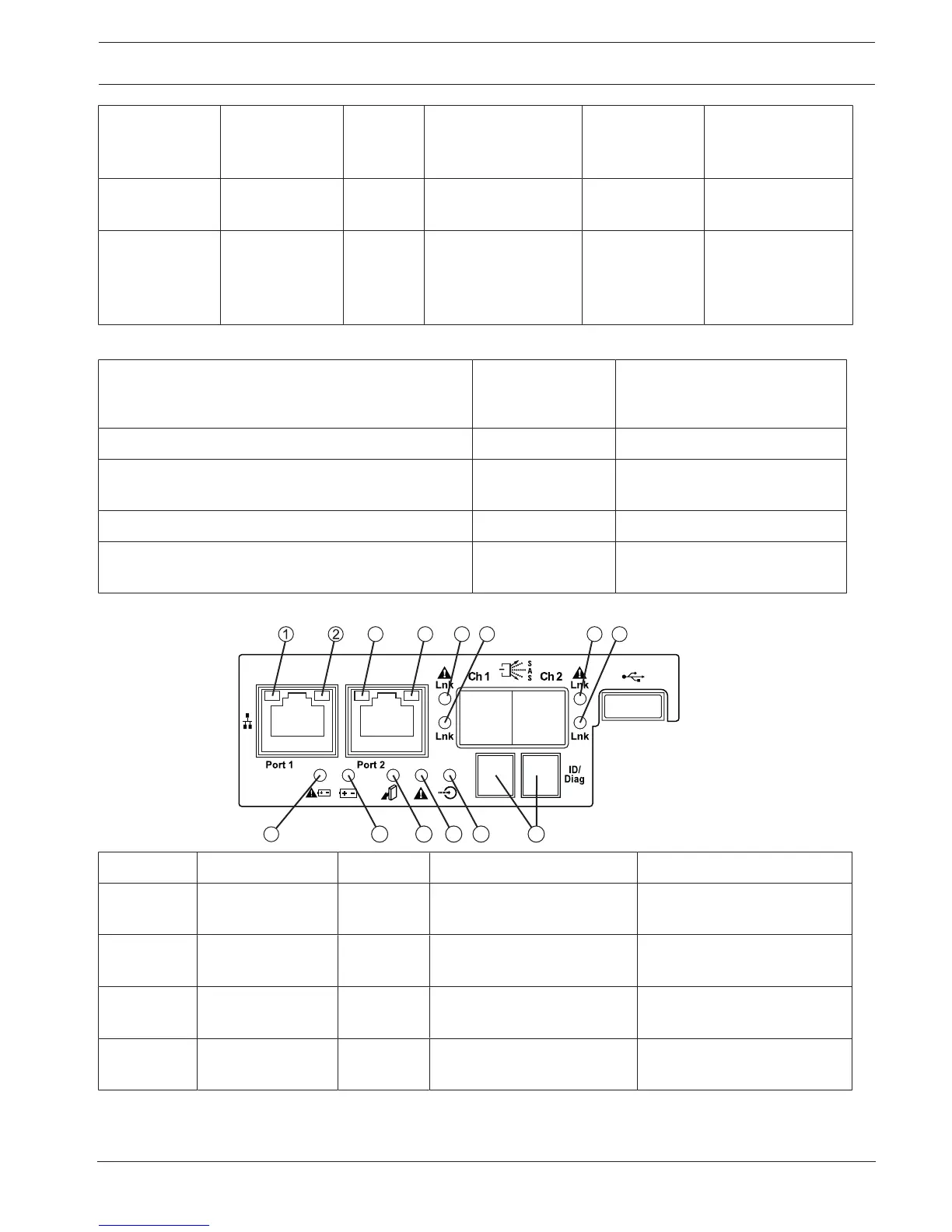

LEDs on the Controller Canister Main Faceplate
49006-15
3 4 7 865
9 10 11 12 13
14
Location LED Color On Off
1 Ethernet
connector1 link
Green There is a 1000 Gb/s rate. There is a 10BASE-T rate.
2 Ethernet
connector1 link
Green The link is up (LED blinks
when there is activity).
The link is not active.
3 Ethernet
connector2 link
Green There is a 1000 Gb/s rate. There is a 10BASE-T rate.
4 Ethernet
connector2 link
Green The link is up (the LED blinks
when there is activity).
The link is not active.
