EV2000 Series Wallbox Charger Installation and Operation Manual
Installation and Operation Manual

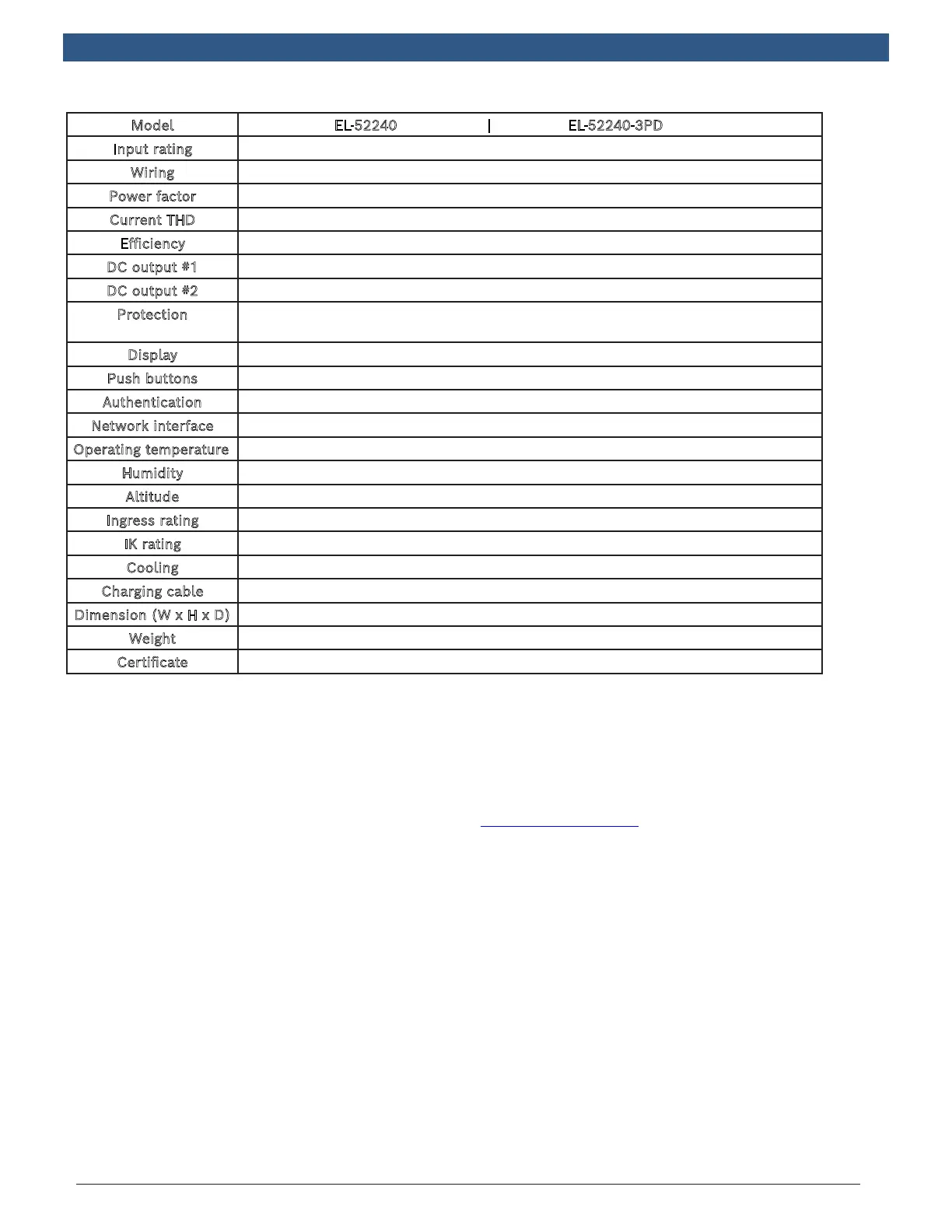

10.0 Specications
Model EL-52240 | EL-52240-3PD
Input rating 200 - 277 Vac; 60Hz; 134A | 480 Vac; 60Hz; 32A
Wiring 1-phase/L1, L2/N, PE | 3-phase/L1, L3, N, PE
Power factor > 0.98
Current THD Compliant with IEEE 519
Efciency 94% at nominal output power
DC output #1 SAE J1772 DC Level 2, 50-500 Vdc, 65A max., 25kW max.
DC output #2 CHAdeMO, 50-500 Vdc, 65A max., 25 kW max.
Protection Over current, under voltage, over voltage, surge protection, short circuit, over
temperature, ground fault
Display 2.7” OLED screen
Push buttons Multi-functional buttons (LED light: Orange, Blue)/Emergency stop button (Red)
Authentication ISO/IEC 14443 Type A/B RFID for user authentication
Network interface Ethernet (Standard); Cellular (Standard, Micro SIM card)
Operating temperature -22 ℉ to +122 ℉ (-30 ℃ to 50 ℃)
Humidity < 95% relative humidity, non-condensing
Altitude Up to 2000 m (6500 ft)
Ingress rating Type 3R (IP54)
IK rating IK08 according to IEC62262
Cooling Forced air
Charging cable Standard: 4 m (13.13 ft)
Dimension (W x H x D) 680 x 430 x 230 mm (27 x 17 x 9 inches)
Weight 43 kg (95 lbs.) excluding plug and cable
Certicate UL, UL 2202, UL 2231
11.0 Limited Warranty
THIS LIMITED WARRANTY IS EXPRESSLY LIMITED TO THE ORIGINAL PURCHASER (“PURCHASER”) OF THE BOSCH POWER
DC CHARGING STATION (“CHARGING STATION”).
IMPORTANT: It is the Purchaser’s obligation to register the Charging Station with Bosch and failure to do so may delay
warranty support. To register a Charging Station online, go to BoschEVSolutions.com or call 1-877-805-3873 for assistance.
Bosch Automotive Service Solutions Inc. (“Bosch”) warrants to the Purchaser that the Charging Station will be free from defects in
materials and workmanship for a period of three years from the date of purchase (“Warranty Period”). This warranty is valid for pur-
chasers located in the U.S.A. and Canada only.
ALL WARRANTY CLAIMS MUST BE MADE WITHIN THE WARRANTY PEROID AND PROOF OF PURCHASE ACCEPTABLE TO
BOSCH MUST BE SUPPLIED.
The sole and exclusive remedy for any Charging Station found to be defective is repair or replacement, at the option of Bosch. The
warranty covers both parts and factory labor necessary to repair the Charging Station, but does not include any on-site labor costs
related to un-installing or reinstalling the repaired or replacement Charging Station. This warranty does not cover cosmetic damage
such as scratches and dents, or normal aging. Repair parts and replacement Charging Stations may be either new or reconditioned
at Bosch’s discretion. Any replacement Charging Stations so furnished will be warranted for the remainder of the original Warranty
Period. Should Bosch be unable to repair or replace the Charging Station with a comparable Bosch product of Bosch’s choice, Bosch
will refund the purchase price of the Charging Station to you.
This warranty does not cover the cost of freight to return the Charging Station to Bosch. This warranty does include freight to ship
repair parts and or a replacement Charging Station to the Purchaser, using a shipping carrier of Bosch’s choice.
