Bosch FLEXIDOME starlight - Installation;Configuration Notes

Installation/configuration notes

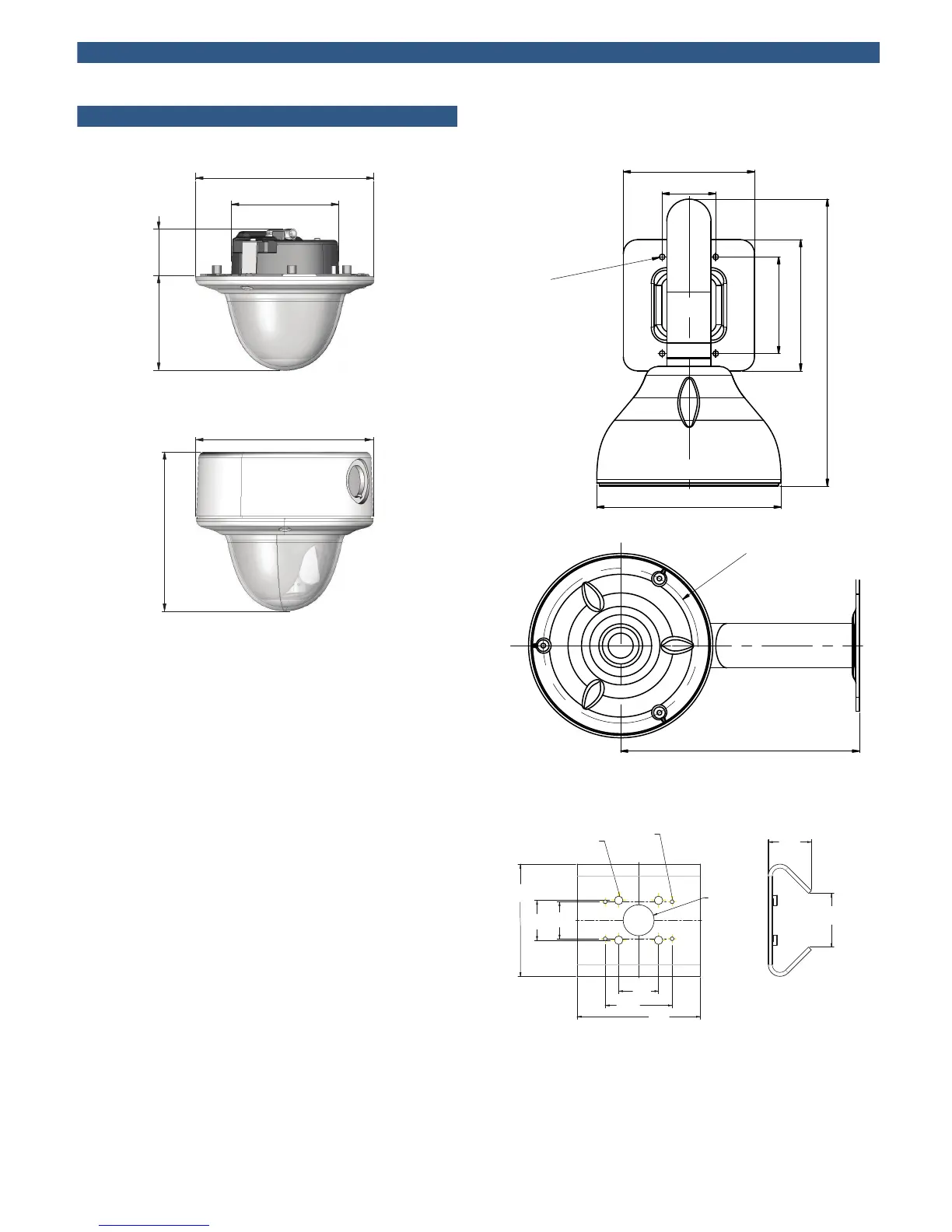

Dimensions flush mounting
Ø158 (6.22)
Ø95 (3.7)
mm (in)
39 (1.54)
85 (3.35)
Dimensions surface mounting
141 (5.55)
Ø158 (6.22)
mm (in)
Brackets (not included)
VDA-WMT-DOME –Pendant Wall Mount
205 (8.07)
mm (in)
247 (9.71)
46 (1.81)
83 (3.27)
Ø133 (5.24)
Ø4.8 (0.19)
Ø158 (6.23)
113 (4.43)
113 (4.43)
LTC 9213/01 Pole Mount Adapter
M8 Thread
Typ 4 Places
6-32 Thread
Typ 4 Places
139.1
(5.48)
53.3
(2.10)
66.5
(2.62)
(1.81)
49.4
(1.95)
49.4
45.8
(1.95)
(6.00)
82.9
(3.27)
152.4
38.4
(1.51)
Hole
mm
(in.)
4
| FLEXIDOME starlight HD 720p60 VR
