VG4 Modular Camera Series Installing the Pendant Arm Wall, Corner, and Mast (Pole) Mounts | en 29
Bosch Security Systems, Inc. Installation Manual F.01U.216.010 | 8.0 | 2011.02

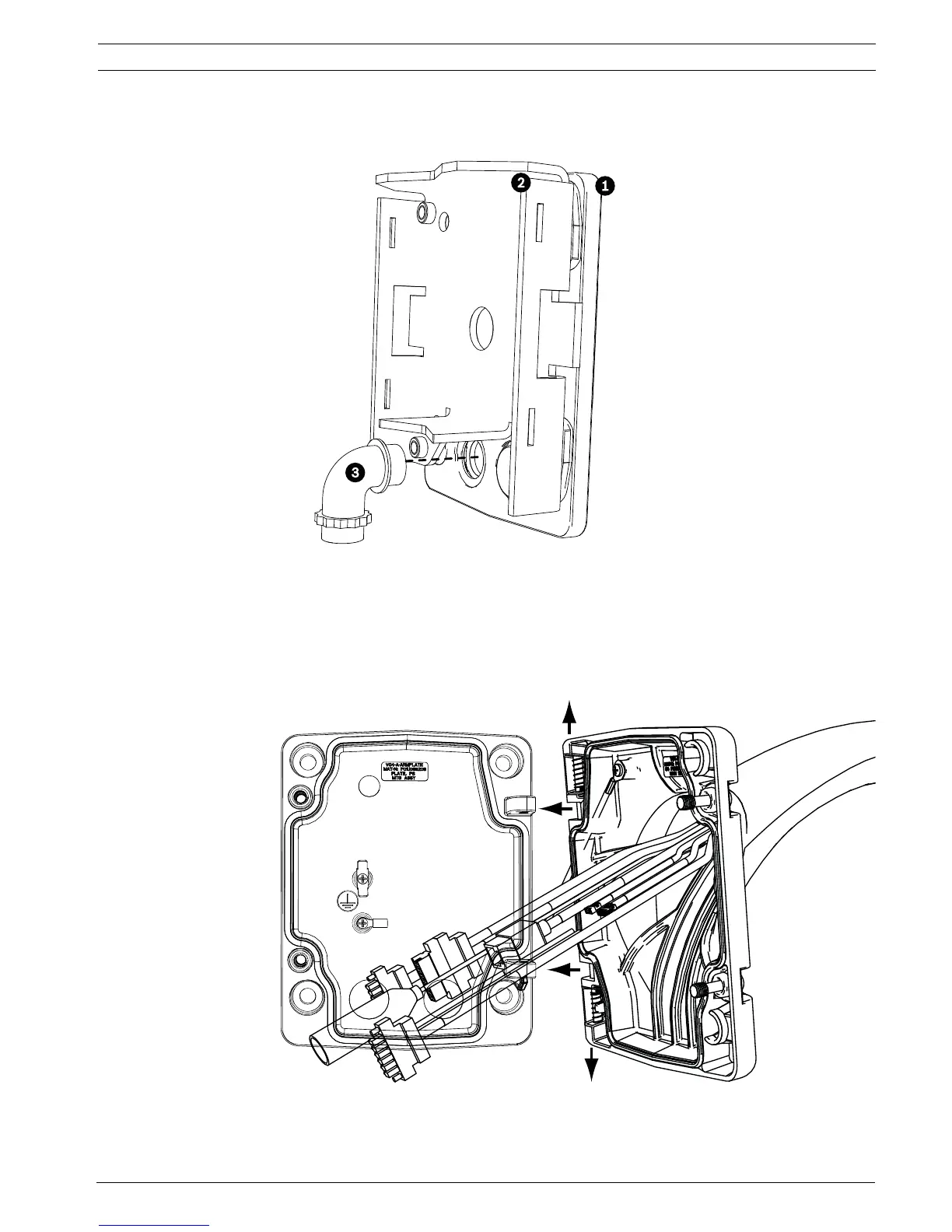

d. Once the Mounting Plate (item 1, below) is attached to the Mast Plate (item 2),
connect the right angle conduit (item 3) to the Mounting Plate through the empty
conduit hole as shown below:
3. Ensure that the mounting plate is secure.
2.8.1 Attach the Pendant Arm to the Mounting Plate
The bottom hinge pin of the Pendant Arm is provided with a Hinge Pin Stop to hold the hinge
open while attaching the arm to the Mounting Plate.
1. Compress the bottom hinge pin by pushing the pin lever downward and rotating it
behind the Hinge Pin Stop.
Figure 2.12 Connect Pendant Arm to Mounting Plate
