2.11.5 Attaching the Housing to the Arm
1. Tilt the bottom of the dome toward the pendant arm base and place the mounting hook,
located on top of the dome housing, over the recessed hinge pin of the arm.

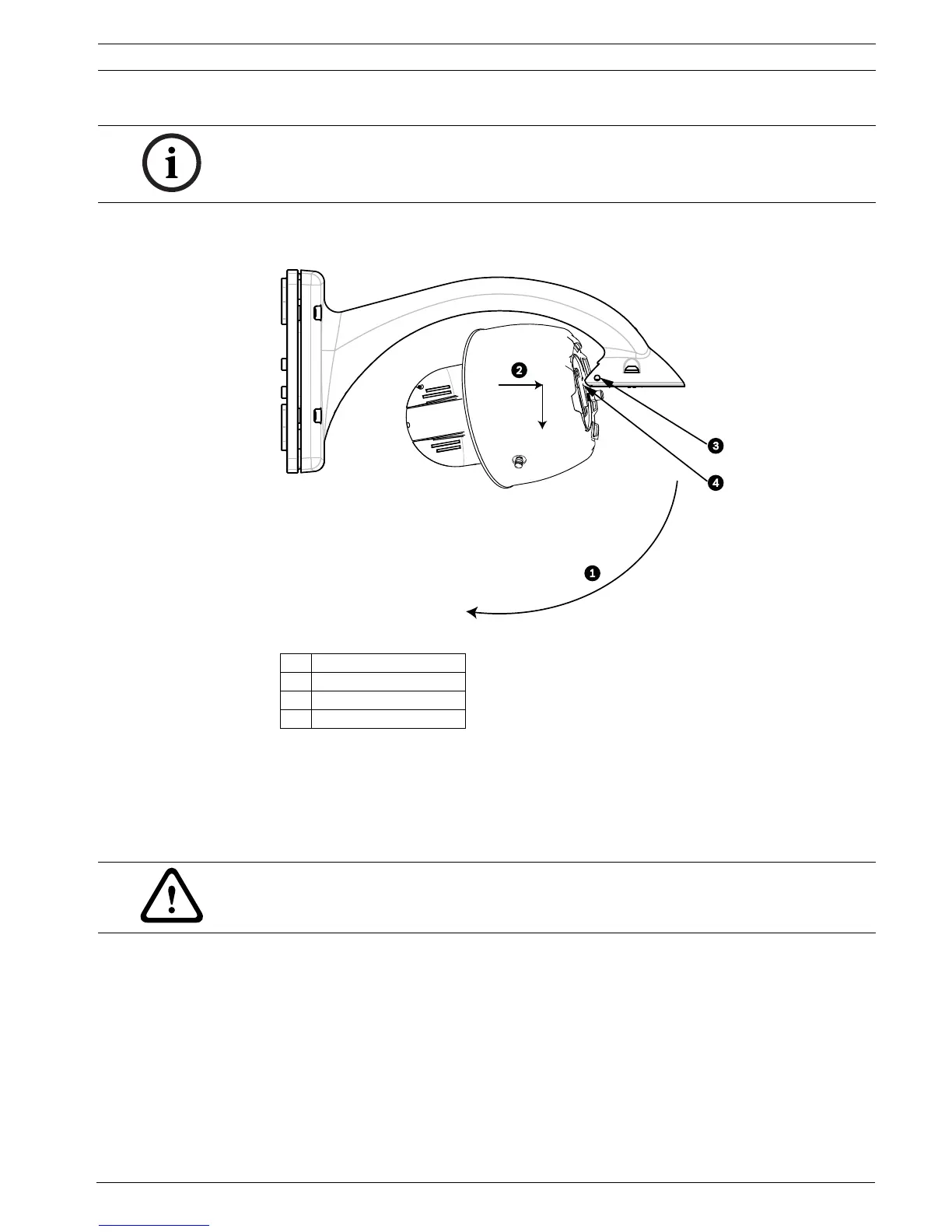

Figure 2.20 Attach AutoDome to Pendant Arm
2. Drop the dome housing down slightly to engage the dome housing hook on the Pendant
Arm hinge pin, allowing the dome to rotate around the pin.
3. Rotate the dome housing down to a vertical position and gently push upward to engage
the connector on top of the dome housing.
4. Hold the housing in position while tightening the two (2) 5-mm Allen head mounting
screws on top of the housing to 10-12 N-m (90-105 in.-lbs).
NOTICE! Before attaching the AutoDome Pendant, visually inspect the dome and arm
connectors for any blocked pin holes or bent pins.
1Tilt up
2 Hook and drop
3 Recessed Hinge Pin
4 Dome Connector
CAUTION!
If you feel any resistance when rotating the dome housing or when engaging the connector,
stop immediately and start over.
