VG4 Modular Camera Series Installing the In-Ceiling Mount | en 79
Bosch Security Systems, Inc. Installation Manual F.01U.216.010 | 8.0 | 2011.02
4.4 Prepare Drywall Ceiling for Installation
1. Choose the desired location to mount the dome.
2. Use the bracket Base Plate as a template or cut a 178 mm (7 in.) hole in the ceiling with
a drywall utility saw or Jig Saw. Proceed to Section 4.6 Wire the Interface Box, page 80, for
further instructions.
4.5 Prepare Suspension Ceiling for Installation
1. Choose the desired location to mount the dome, and remove an adjacent ceiling tile.
2. Loosen the four (4) securing screws, located in the corners of the Bracket Assembly,
enough to hold the suspension bars but still allowing adjustment during installation.
3. Place the Bracket Assembly over the ceiling tile, which is used to mount the In-Ceiling
AutoDome. Then snap the Bar Clips of the bracket to the ceiling rails.

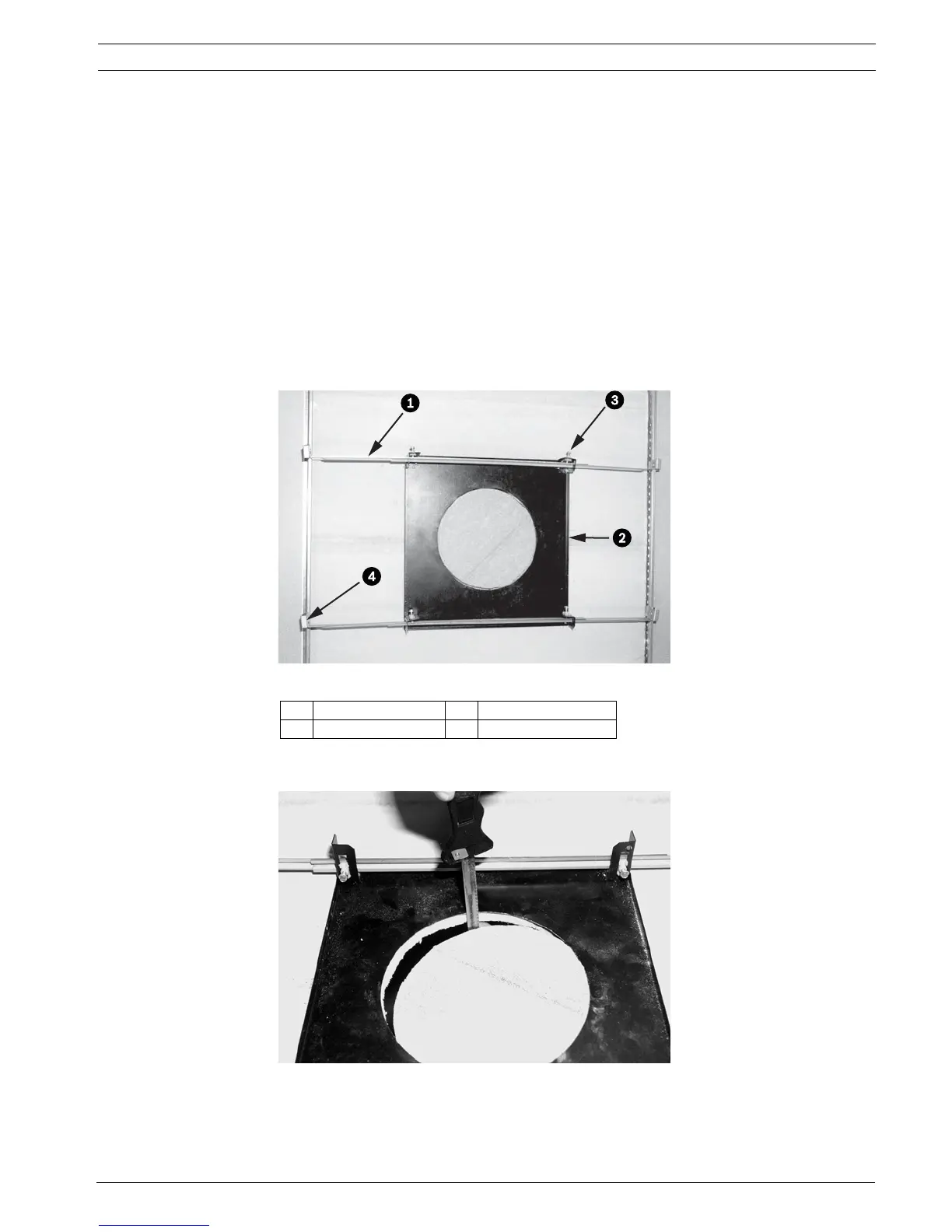

Figure 4.2 Suspension Ceiling Bracket (Top View)
4. Use the bracket Base Plate as a template or cut a 178 mm (7 in.) hole in the center of the
ceiling tile with a drywall utility saw or Jig Saw.
Figure 4.3 Cut Hole in Ceiling Tile
1 Suspension Bars 3 Securing Screw (4)
2 Base Plate 4 Bar Clips
