78 en | Installing the In-Ceiling Mount VG4 Modular Camera Series
F.01U.216.010 | 8.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
4.2 Pre-installation Check List
1. Determine the location and distance for the power supply box based on its voltage and
current consumption. See Section 5 Cable and Wire Standards, page 88 for specifications.
2. Install all rough wiring including: power, control, video, alarms I/O, relay I/O, and fiber
optic cabling.
3. A minimum of 216-mm (8 1/2-inch) of air space above the ceiling is required to install the
In-ceiling Mount.
4. If this AutoDome installation utilizes the AutoTracker feature, refer to
Section A Installation Notes for AutoTracker, page 102, before mounting the AutoDome.
4.3 Dimensions

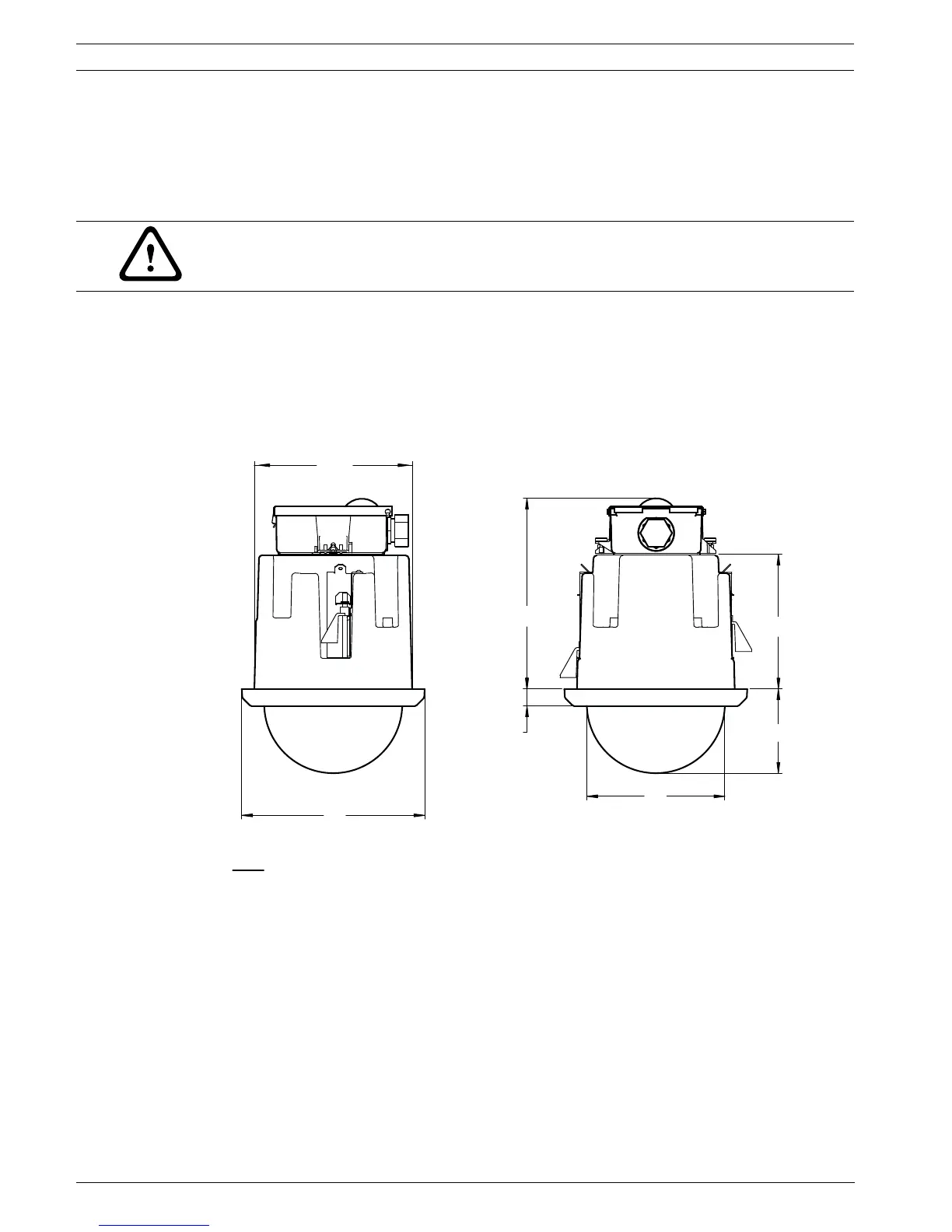

Figure 4.1 In-ceiling Dimensional Outline
WARNING!
24 VAC Class 2 power supply only.
mm
inches
210.7
8.30
19.0
0.75
153.9
6.06
150.2
5.91
94.0
3.70
176.8
6.96
204.3
8.04
DIA.
