64 en | Installing Roof Parapet and Pipe Mounts VG4 Modular Camera Series
F.01U.216.010 | 8.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
3.9 Attach Pendant to Pipe and Tighten
1. Before attaching the Pendant, visually inspect the Pendant dome and the Interface Board
connectors for any blocked pin holes and bent pins.
2. Tilt the Pendant enough to place its mounting hook on top of the its housing, over the
recessed hinge pin of the Dome Cap.

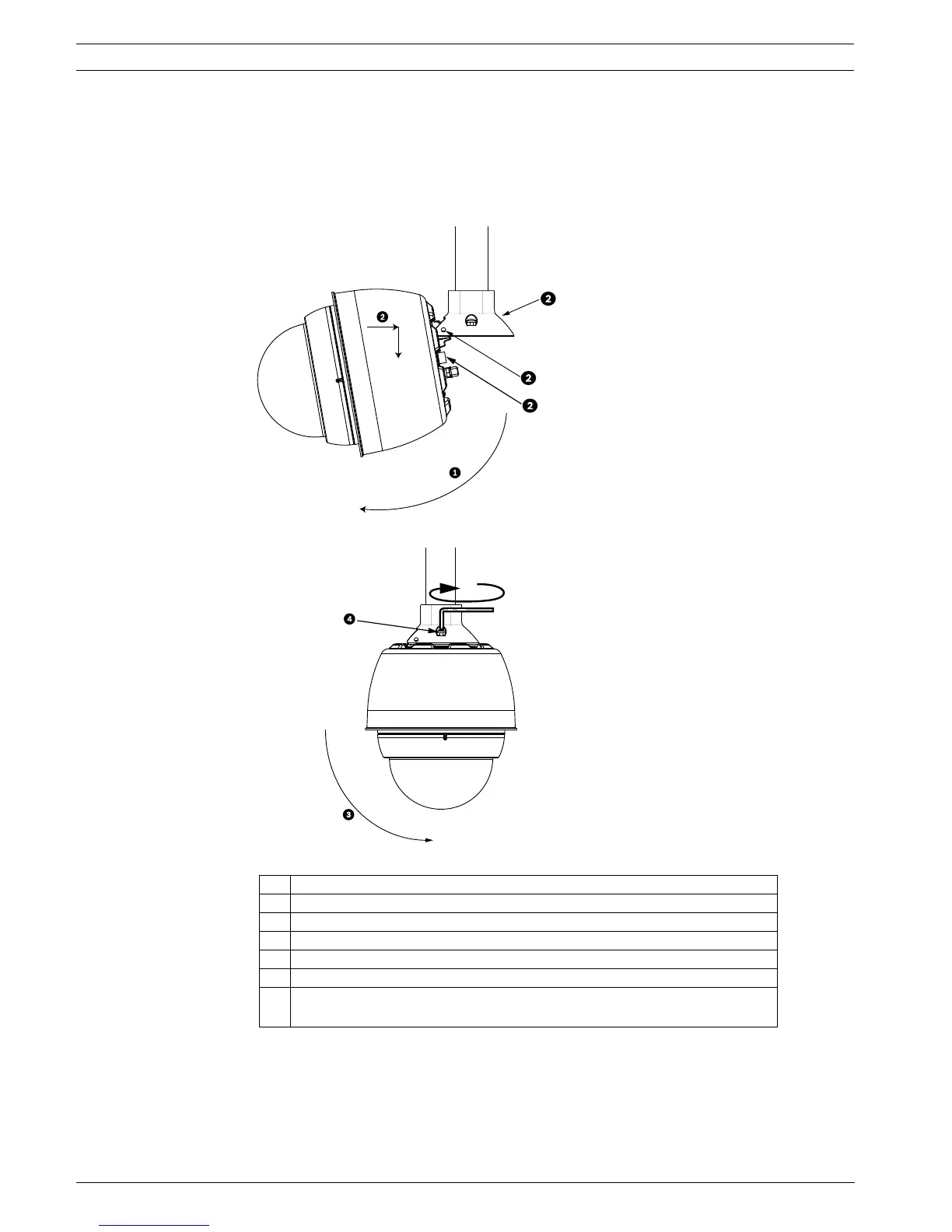

Figure 3.15 Pendant to Roof / Pipe Mount Attachment
3. Drop the Pendant down slightly to engage the dome hook and hinge pin of the Dome
Cap, allowing the dome to rotate around the hinge pin.
4. Rotate the dome housing down to a vertical position and gently push upward to engage
the connector on top of the dome housing.
1Tilt Dome.
2 Hook and drop.
2a Dome Cap
2b Recessed Hinge Pin
2c Dome Connector
3 Rotate down to engage dome connector.
4 Tighten the two (2) mounting screws to a minimum torque of 10-12 N-m
(90-105 in.-lbs).
