4. Align the yellow locking tab on the base of the Camera Module to the yellow label on the
CPU board and gently seat the camera into its connector.

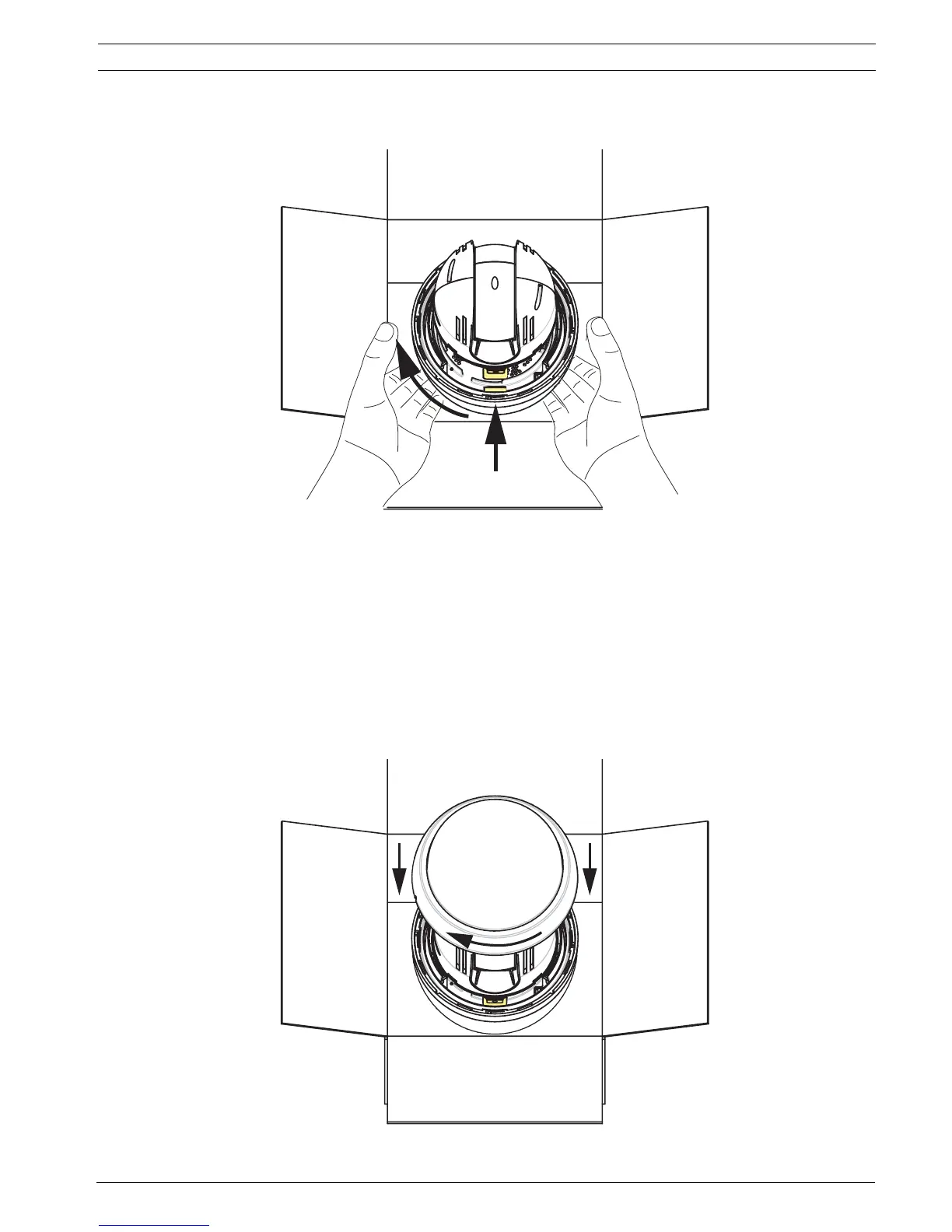

Figure 2.15 Align and Attach Camera Module
5. Rotate the yellow locking tab of the Camera Module clockwise (approximately 60
degrees) until the Camera Module locks in place.
Note: The Camera Module must be able to rotate freely when installed in the housing.
6. If you are installing a VG4 Pressurized Environmental Housing, skip to
Section 2.11 Installing the Pressurized Environmental Housing, page 36. You will attach the
bubble to the housing in a later step.
If you are installing a normal VG4 dome, continue with step 7.
7. Remove the Bubble from its packing box, and remove the protective plastic bag.
8. Place the bubble over the Camera Module and rotate it clockwise (approximately 1/8
turn) until it locks in place. You will hear an audible click when it locks.
Figure 2.16 Attach bubble
