VG4 Modular Camera Series Installing the Pendant Arm Wall, Corner, and Mast (Pole) Mounts | en 35
Bosch Security Systems, Inc. Installation Manual F.01U.216.010 | 8.0 | 2011.02
4. Hold the Pendant housing in position while tightening the two (2) 5-mm Allen head
mounting screws on top of the housing to 10-12 N-m (90-105 in.-lbs).
Removing the Pendant Bubble
To service the AutoDome Pendant, use the following procedure to remove the Bubble:
1. Using both hands, apply a counterclockwise (looking up at the dome) rotational force on
the Pendant Bubble Assembly to set the bubble latch.
2. Insert a small (2 mm) straight blade screw driver into the bubble release opening in the
bubble trim-ring to release the lock, and then remove the screwdriver. See the figure
below.
3. Rotate the Bubble Assembly counterclockwise approximately 20 degrees until the bubble
assembly releases from the Pendant Housing.

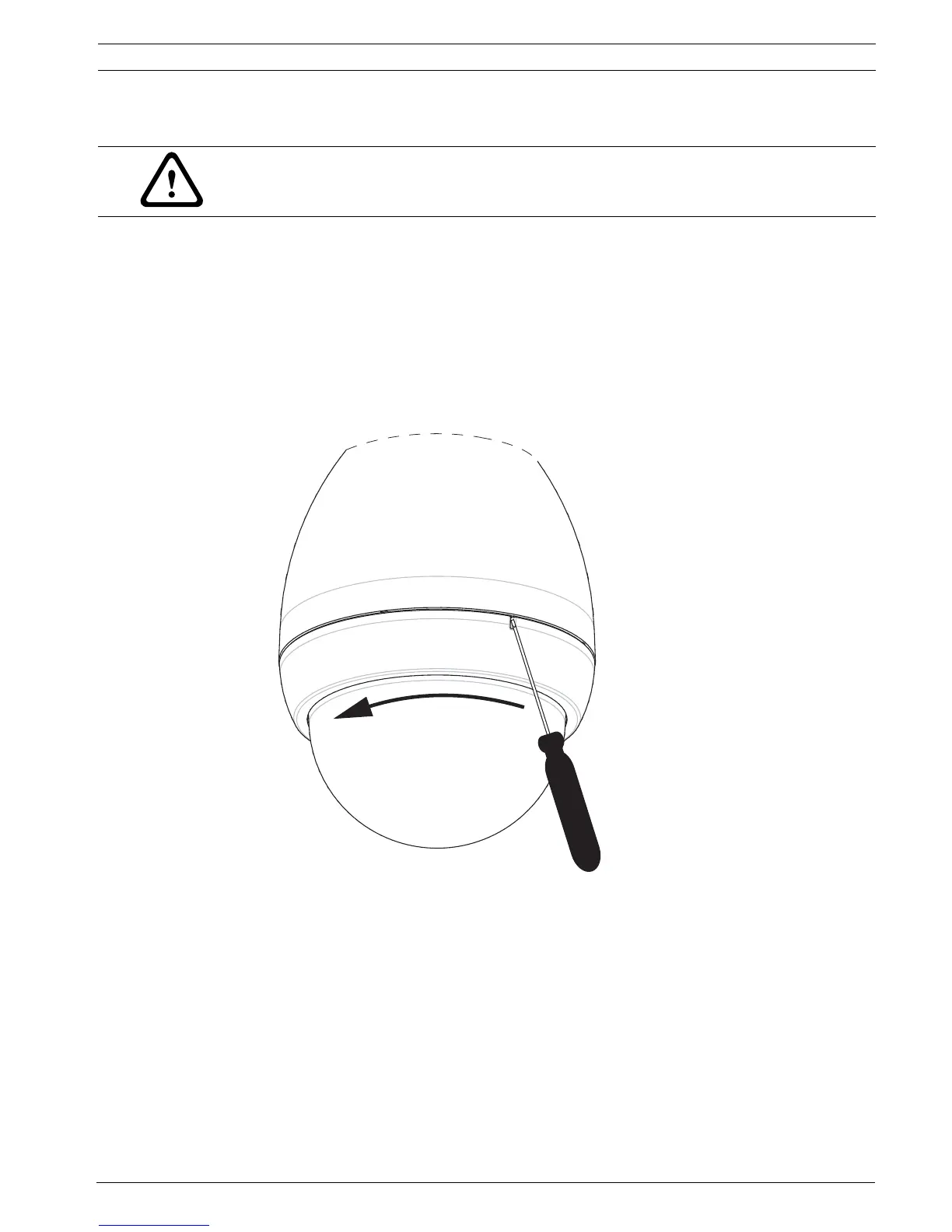

Figure 2.18 Pendant Bubble Release Opening
CAUTION!
You must tighten the two mounting screws to a minimum torque of 10-12 N-m (90-105 in.-lbs)
to ensure a proper seal between the arm and the housing.
