6. Remove the End Cap from the front of the arm and feed the video, control, and power
wires up through the bottom of the pipe arm and out the front end.
Figure 3.7 VG4-A-9230 Parapet Mount
7. Fold the video, control, and power wires back at the front end of the arm and route them
down and out through the Down Pipe. Then replace the End Cap.
8. Wrap at least five layers of Teflon tape around the Down Pipe threads.
9. Apply the supplied thread sealant to the Down Pipe threads:
– Make sure all surfaces are clean and dry.
– Apply a bead of sealant completely around the leading threads of the male fitting.
– Force the adhesive into the threads to thoroughly fill all voids.
10. Thread the Dome Cap onto the down pipe and tighten securely. See the illustration
below.

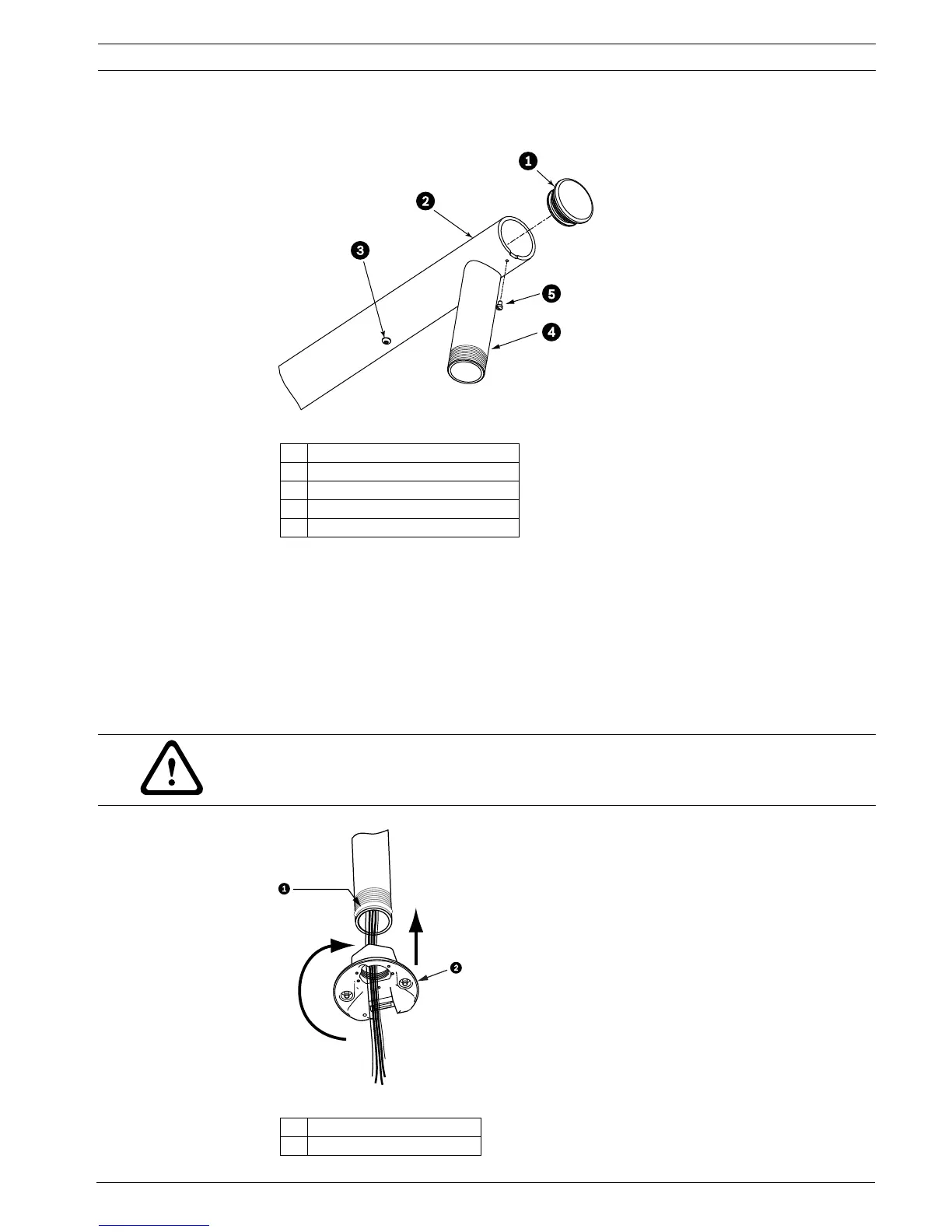

Figure 3.8 Attach Dome Cap
1 End Cap with O-ring
2 Parapet Pipe Arm
3 1/4-20 SS Cap Screw
4Down Pipe
5 10-24 SS Pan Head Screw
WARNING!
You must thread the Dome Cap onto the Down Pipe until it is tight. Failure to do so can result
in damage, serious injury, or death.
1 Thread Sealant or tape
2Dome Cap
