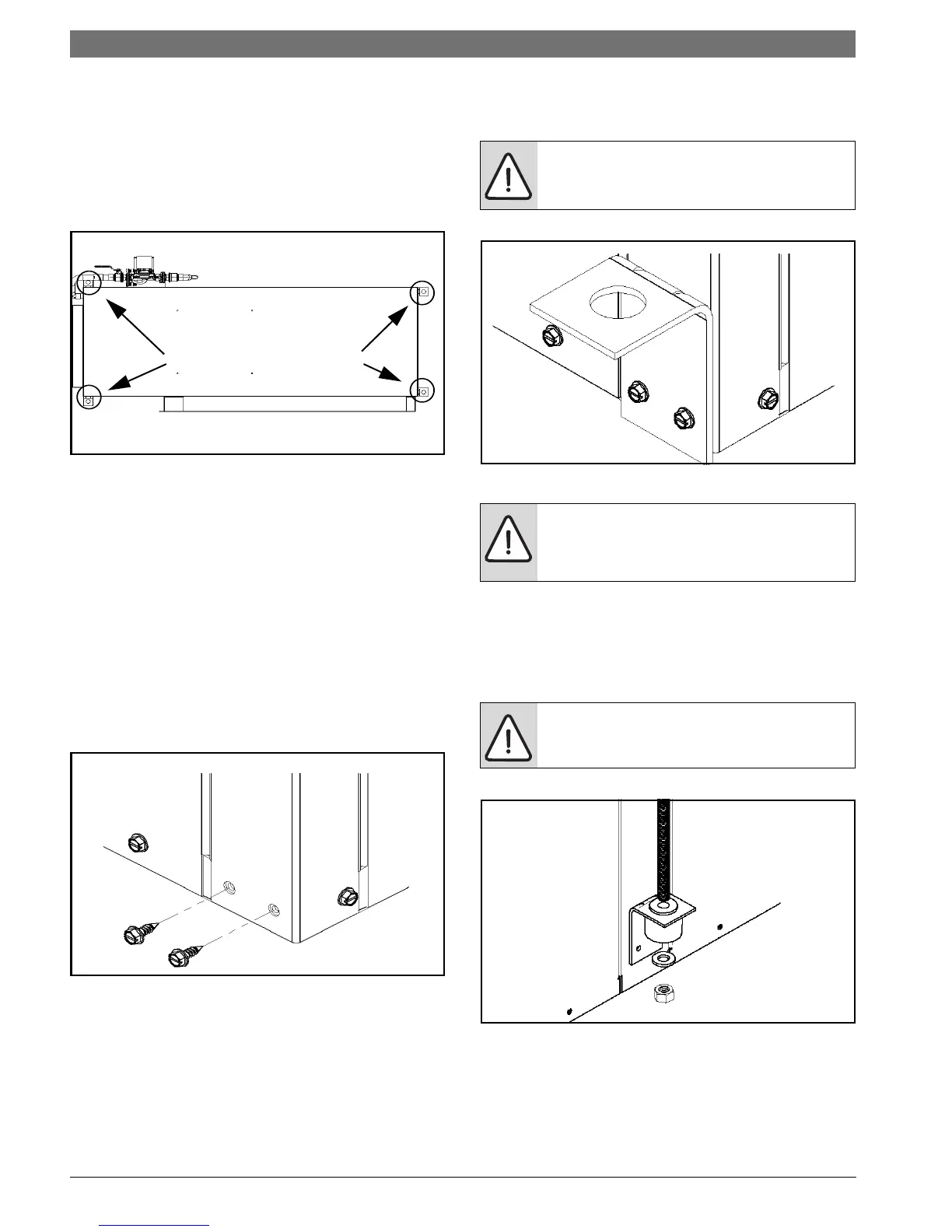

Hanging Bracket Kit
Installation instructions
All horizontal units come with Hanging Bracket Kit
to facilitate suspended unit mounting using threaded
rod. Hanging Brackets are to be installed as shown in
Figure#3
Figure # 3
This kit includes the following:
(5) Brackets
(5) Rubber Vibration Isolators
(8) Screws # 10x1/2”
(10) Bolts 1/4-28x1/2” hex Bolt (not used on this
model)
The following are needed and are to be field provided:
Threaded rod (3/8” max dia)
Hex Nuts
Washers (1-3/4” min O.D.)
1. Remove and discard factory provided screws from
location where Hanging Brackets will be installed shown
in Figure#4
Figure # 4
2. Mount 4 Brackets to unit corner post using the bolts
provided in the kit as shown on Figure # 5
Figure # 5
3. Install Rubber Grommet on the bracket as shown in
Figure# 6.
4. Hang the unit and assemble the field provided Thread
Rod, Nuts and Washers on to the Brackets as shown in
Figure# 6.
Figure # 6
Hanging Brackets Locations
WARNING: Do not re-use screws removed
from the unit on step 1 to mount the
hanging Brackets to the unit.
WARNING: Follow all applicable codes
requirements when hanging this unit.
Selecting threaded rod material, etc.
DANGER: Rods must be securely anchored
to the ceiling.
