56 | Dimensional Drawings LV Heat Pump Series
LV Heat Pump Series8 733 944 336 (2016/09) Subject to change without prior notice

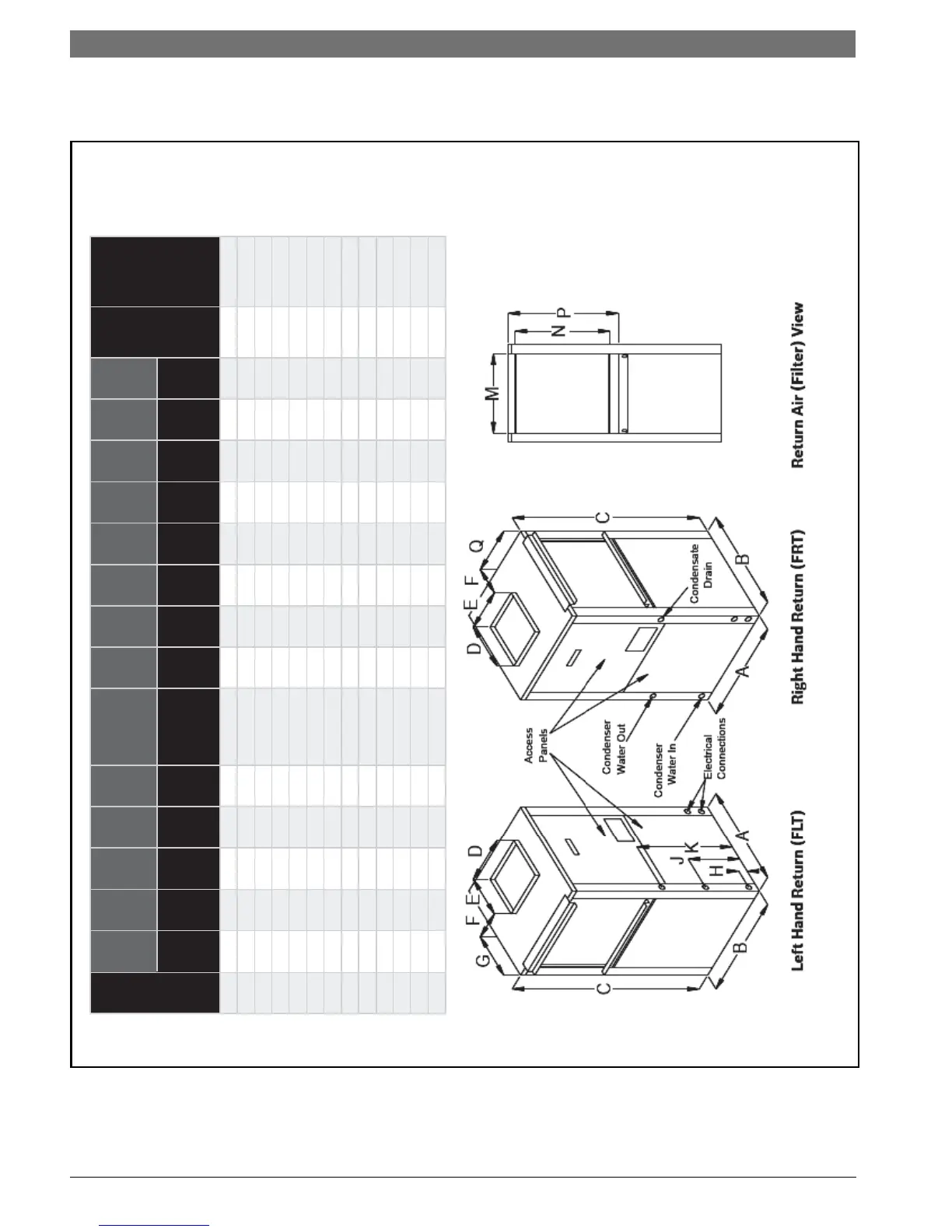

DIMENSIONAL DRAWINGS
Vertical
ABCDE F GHJ KMNPQ
Width
Depth
Height
Discharge
Depth
Discharge
Width
Cabinet Edge
to Discharge
Left Side to
Discharge
Water
Inlet
Water
Outlet
Conden- sate
Drain
R/A Duct
Width
R/A Duct
Flange Height
Filter Rack
Height
Right side to
discharge
LV007
19.0 19.0 24.25 10.0 8.0 4.61(LH)/9.3(RH) 9.3 2.44 9.68 13.87 16.0 8.0 10.0 5.4
3/4"FPT 10 × 16 × 1
LV009
19.0 19.0 24.25 10.0 8.0 4.61(LH)/9.3(RH) 9.3 2.44 9.68 13.87 16.0 8.0 10.0 5.4
3/4"FPT 10 × 16 × 1
LV
012
19.0 19.0 24.25 10.0 8.0 4.61(LH)/9.3(RH) 9.3 2.44 9.68 13.87 16.0 8.0 10.0 5.4
3/4"FPT 10 × 16 × 1
LV015
21.5 21.5 32.25 14.0 14.0 3.1 5.2 2.85 8.45 15.87 20.0 14.0 16.0 5.2
3/4"FPT 16 × 20 × 1
LV018
21.5 21.5 32.25 14.0 14.0 3.1 5.2 2.85 8.45 15.87 20.0 14.0 16.0 5.2
3/4"FPT 16 × 20 × 1
LV024
21.5 21.5 39.25 14.0 14.0 3.1 5.2 2.80 8.45 18.87 20.0 18.0 20.0 5.2
3/4"FPT 20 × 20 × 1
LV030
21.5 21.5 39.25 14.0 14.0 3.1 5.2 2.80 8.45 18.87 20.0 18.0 20.0 5.2
3/4"FPT 20 × 20 × 1
L
V036
21.5 26.0 43.25 16.0 14.0 4.0 5.0 2.75 10.77 18.87 24.0 22.0 24.0 5.0
3/4"FPT 24 × 24 × 1
LV041
21.5 21.5 39.25 16.0 14.0 1.7 4.7 2.80 8.45 18.87 20.0 18.0 20.0 4.7
3/4"FPT 20 × 20 × 1
LV042
21.5 26.0 43.25 16.0 14.0 4.0 5.0 2.75 10.77 18.87 24.0 22.0 24.0 5.0
3/4"FPT 24 × 24 × 1
LV048
24.0 32.5 45.25 18.0 14.0 7.0 6.2 3.26 13.20 20.87 30.0 22.0 24.0 6.2
1"FPT 24 × 30 × 1
LV060
24.0 32.5 45.25 18.0 14.0 7.0 6.2 3.26 13.20 20.87 30.0 22.0 24.0 6.2
1"FPT 24 × 30 × 1
LV070
26.0 33
.25 58.25 18.0 16.0 7.8 7.2 2.92 13.36 25.87 30.0 30.0 32.0 7.2
1"FPT 16 × 30 × 1 (2)
Model
Condenser Water
Connections
Recommen- ded
Replacement Nominal Filter
Size
