Bosch LV060 - Horizontal

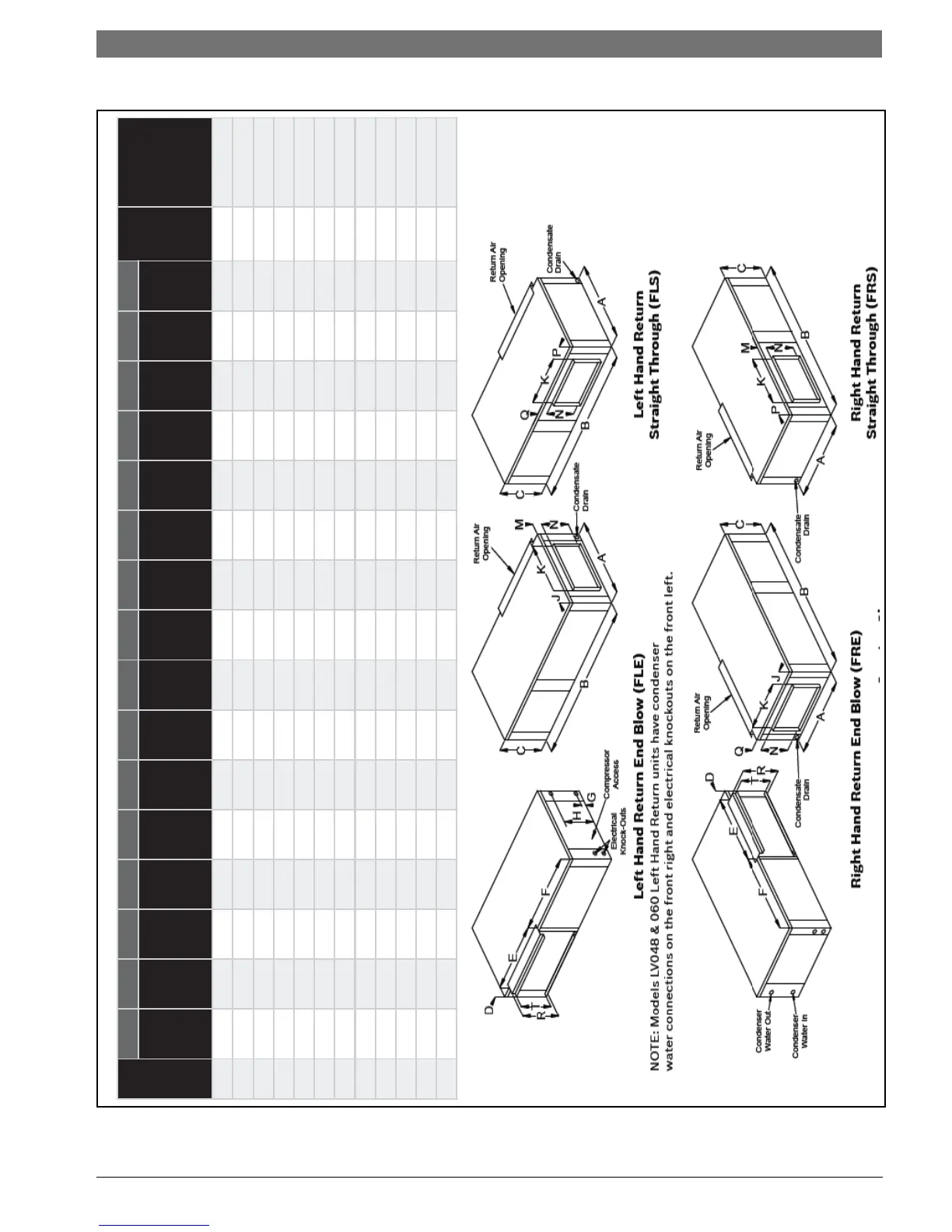

Dimensional Drawings | 57LV Heat Pump Series
8 733 905 683 (2016/09)LV Heat Pump Series
Horizontal
Please See notes on page#57
ABCDEFGH JKMNPQRT
Width
Depth
Height
Cabinet End to
Filter Rack
R/A Duct Width
Cab Front to
Filter Rack
Water
Inlet
Water
Outlet
Side to
Discharge
(End)
Discharge
Width
Top to
Discharge
(FLE & FRS)
Discharge
Height
End to
Discharge
(Straight)
Top to
Discharge
(FRE & FLS)
Filter Rack
Height
R/A Duct
Flange Height
LV007 19,0 33,0 11,5 1,5 16,15 15,35 2,38 9,5 5,375 6,3 5,97 4,1 4,875 1,41 11,3 8,6 3/4" FPT 10 × 16 × 1
LV009 19,0 33,0 11,5 1,5 1
6,15 15,35 2,38 9,5 5,375 6,3 5,97 4,1 4,875 1,41 11,3 8,6 3/4" FPT 10 × 16 × 1
LV012 19,0 33,0 11,5 1,5 16,15 15,35 2,38 9,5 5,25 6,43 6,31 4,1 4,75 1,14 11,3 8,6 3/4" FPT 10 × 16 × 1
LV015 22,0 43,0 17,0 1,5 20,15 21,35 2,86 15,0 8,15 6,43 9,55 4,1 7,65 3,4 16,8 15,0 3/4" FPT 16 × 20 × 1
LV018 22,0 43,0 17,0 1,5 20,15 21,35 2,86 14,13 5,42 9,13 6,11 9,65 4,92 1,23 16,8 15,0 3/4" FPT 16 × 20 × 1
LV024 22,0 43,0 17,0 1,5 25,0 16,5 2,86 14,13 5,42 9,13 6,11 9,65 4,92 1,23 16,8 15,0 3/
4" FPT 16 × 25 × 1
LV030 22,0 43,0 17,0 1,5 25,0 16,5 2,47 15,0 5,42 9,13 6,11 9,65 4,92 1,23 16,8 15,0 3/4" FPT 16 × 25 × 1
LV036 22,0 54,5 19,0 1,5 30,15 22,85 2,86 16,13 6,47 9,13 7,5 10,28 5,97 1,21 18,8 17,0 3/4" FPT 18 × 30 × 1
LV042 22,0 54,5 19,0 1,5 30,15 22,85 2,86 16,13 5,27 10,45 6,46 11,3 4,77 1,22 18,8 17,0 3/4" FPT 18 × 30 × 1
LV048 25,0 54,5 21,0 1,5 34,6 18,4 2,86 18,52 7,25 10,45 7,46 11,36 6,75 2,16 20,8 19,0 1" FPT 20 × 34.5 × 5 × 1
LV060 25,0 54,5 21,0 1,5 3
4,6 18,4 2,86 18,52 6,32 11,76 6,81 12,5 5,82 1,68 20,8 19,0 1" FPT 20 × 34.5 × 5 × 1
LV070 25,0 65,0 21,0 1,5 48,1 15,4 2,86 18,52 6,32 11,76 6,81 12,5 5,82 1,68 20,8 19,0 1"F PT 20 × 24 × 1 (2)
Model
Condenser W ater
Connections
Recom men- ded
Replacement
Nominal Filter
Size
