Bosch NIN-73013 - Mounting to Ceiling with SMB-IP

Ø 8 mm
x3
105 (4.13)
STP Cat5e
RJ45
Ethernet
(PoE)
Earth+12 VDC
Power
Alarm
Audio
BNC
female
75 Ohm
CVBS

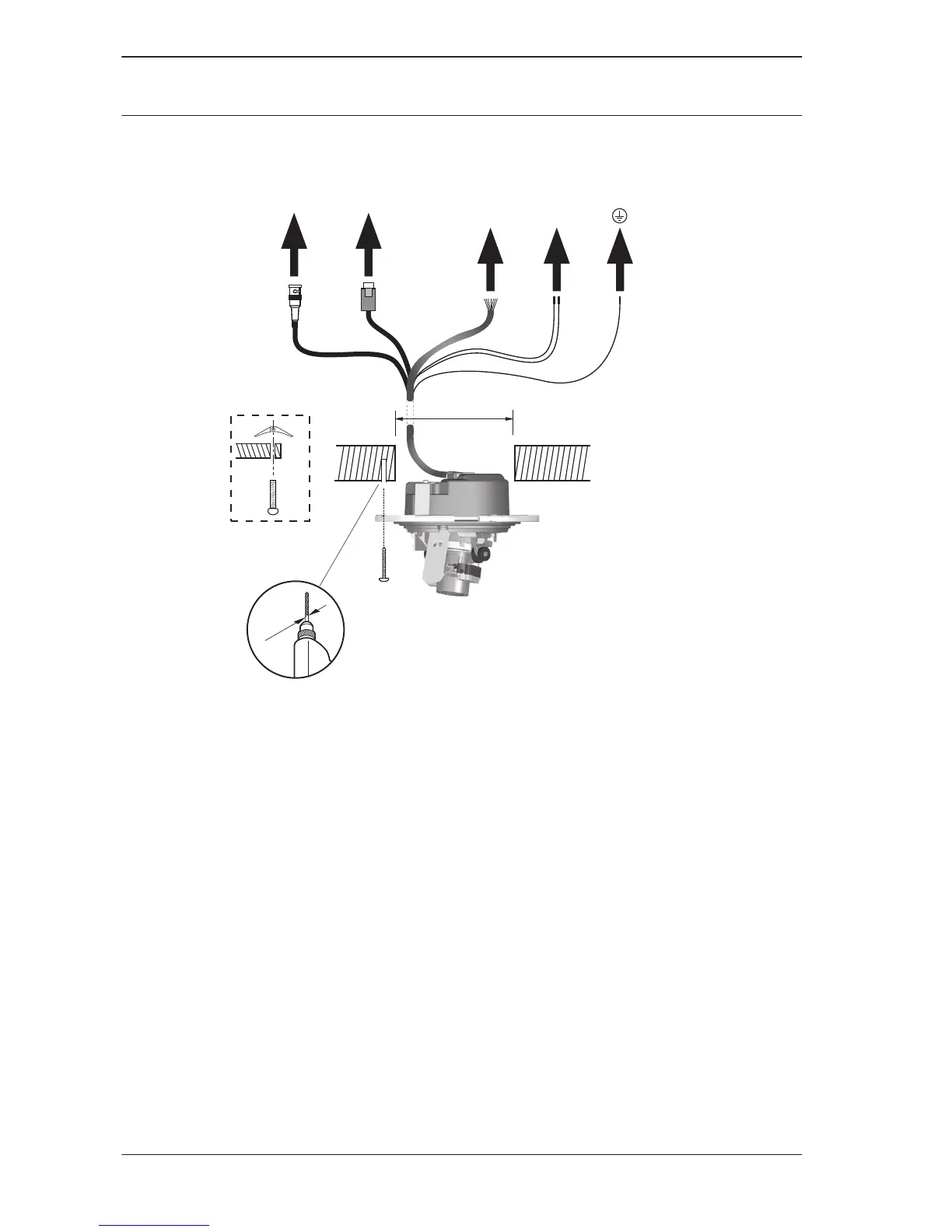

Note:
If using a recessed 4s mounting box, attach the camera to the
box using two screws and washers (M4 x 14).
Mounting to ceiling with SMB-IP
To mount the camera using a Surface Mount Box and cable
conduit:
1. Use the SMB to mark out the cable hole in the ceiling and
to mark the three mounting holes. The mounting holes are
equally spaced around a diameter of 133 mm (5.25 in).
2. Cut out the cable hole in the ceiling, and use a 8 mm
(0.31 in) bit to drill the three mounting holes.
3. Insert the supplied mounting plugs (8 x 40) into the
mounting holes.
5.4.2
18 en | Installation
FLEXIDOME IP starlight
7000 VR
2016.06 | v1.0 | AM18-Q0710 Bosch Security Systems
