Tilt

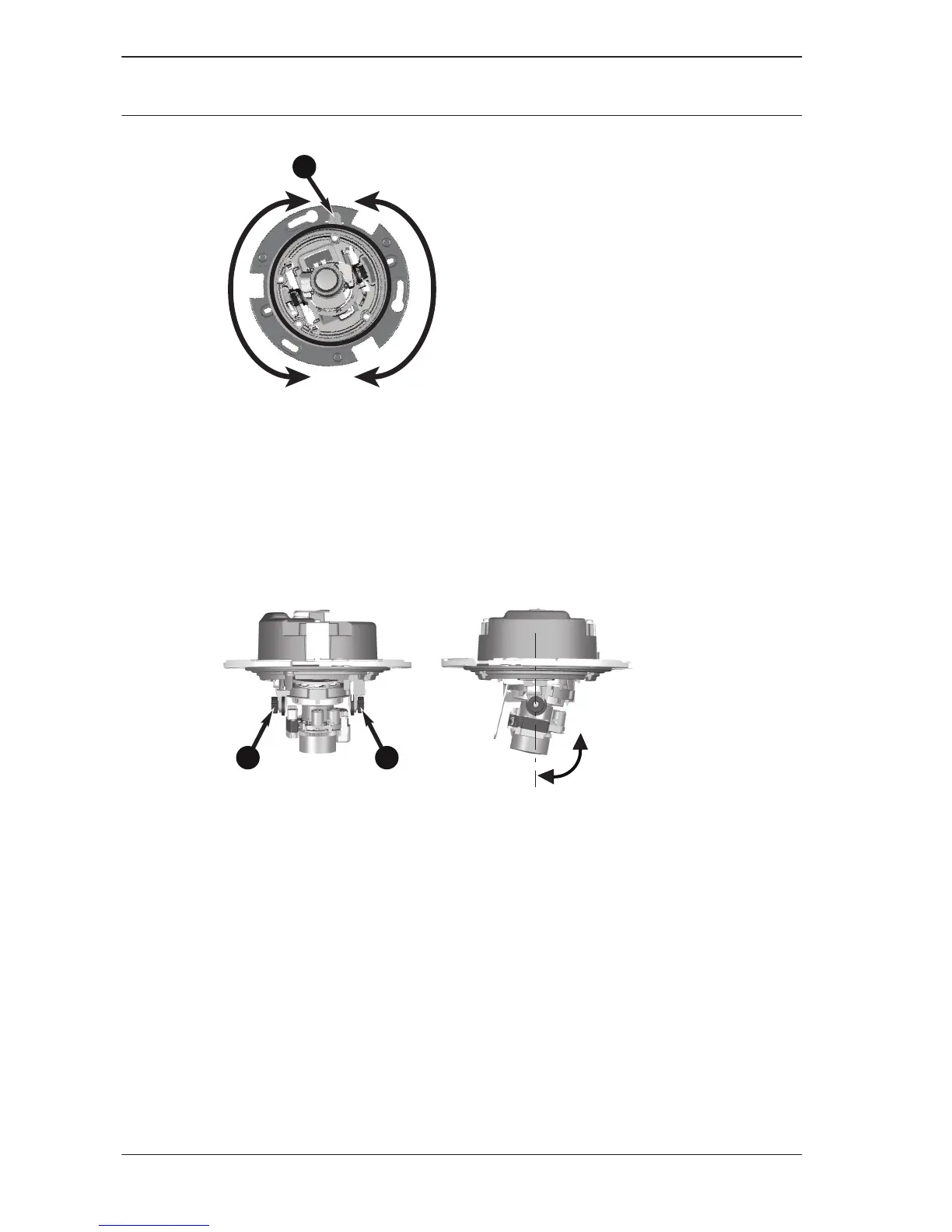

For vertical adjustment (tilt):
1. Loosen the two thumbwheels (1).
2. Swing the camera module between the wings. Do not
rotate more than 90°.
3. Tighten the two thumbwheels (1).
≤90°
1 1
Twist
To obtain a horizontal horizon (for tilted ceilings or sidewall
mounting), twist the camera module to align the picture shown
on the monitor.
