569217 | REV. A | 05.22.2013
Bosch Automotive Service Solutions
Installation and Operating Instructions
|
Power Max Level 2 Charging Station | 9
|
en

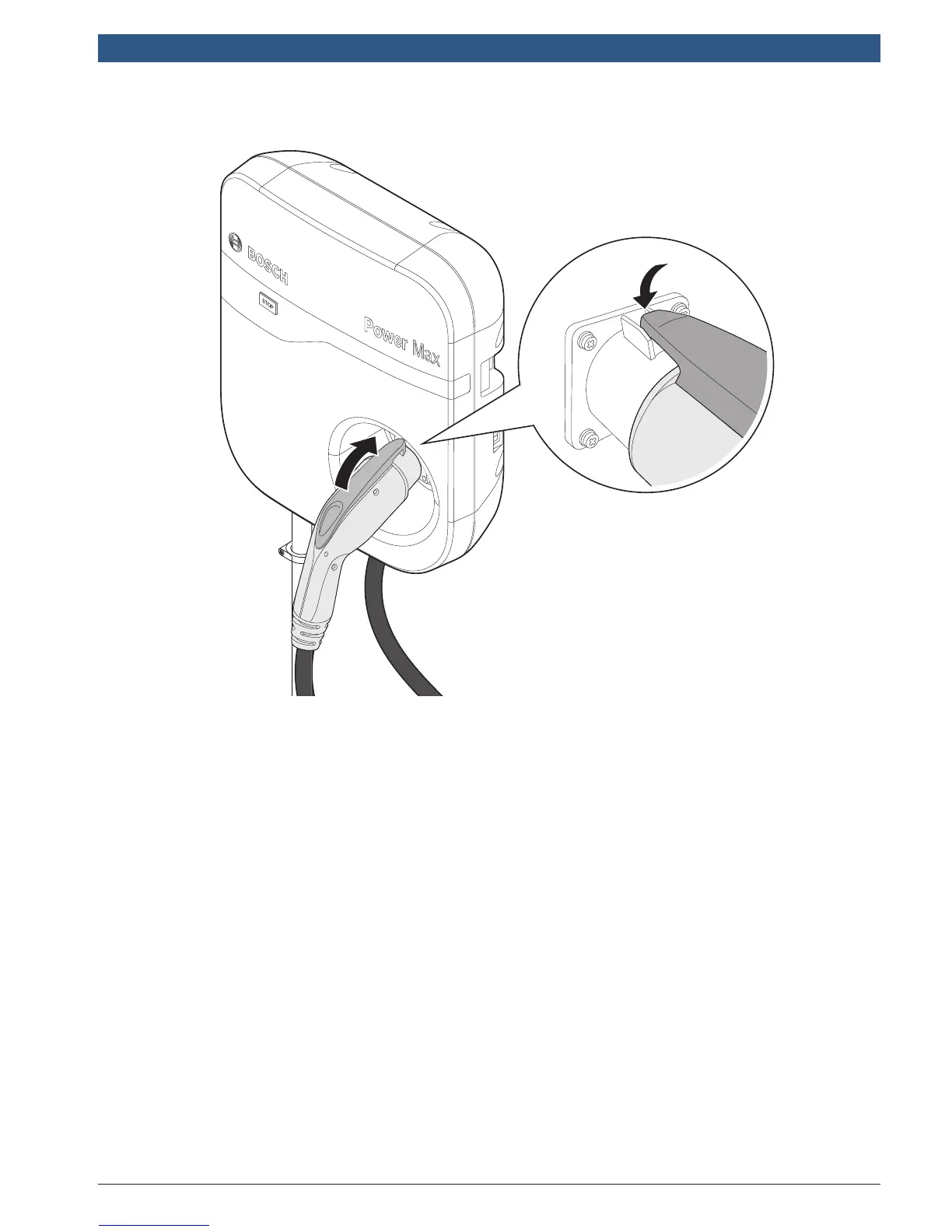

7. SeeFigure4-7.SecurethechargingplugtotheLevel2ChargingStation.
Figure4-7.Plugattachmentwithdetailofplugdock
