Installation and Operating Instructions
|
Power Max Level 2 Charging Station
569217 | REV. A | 05.22.2013
Bosch Automotive Service Solutions

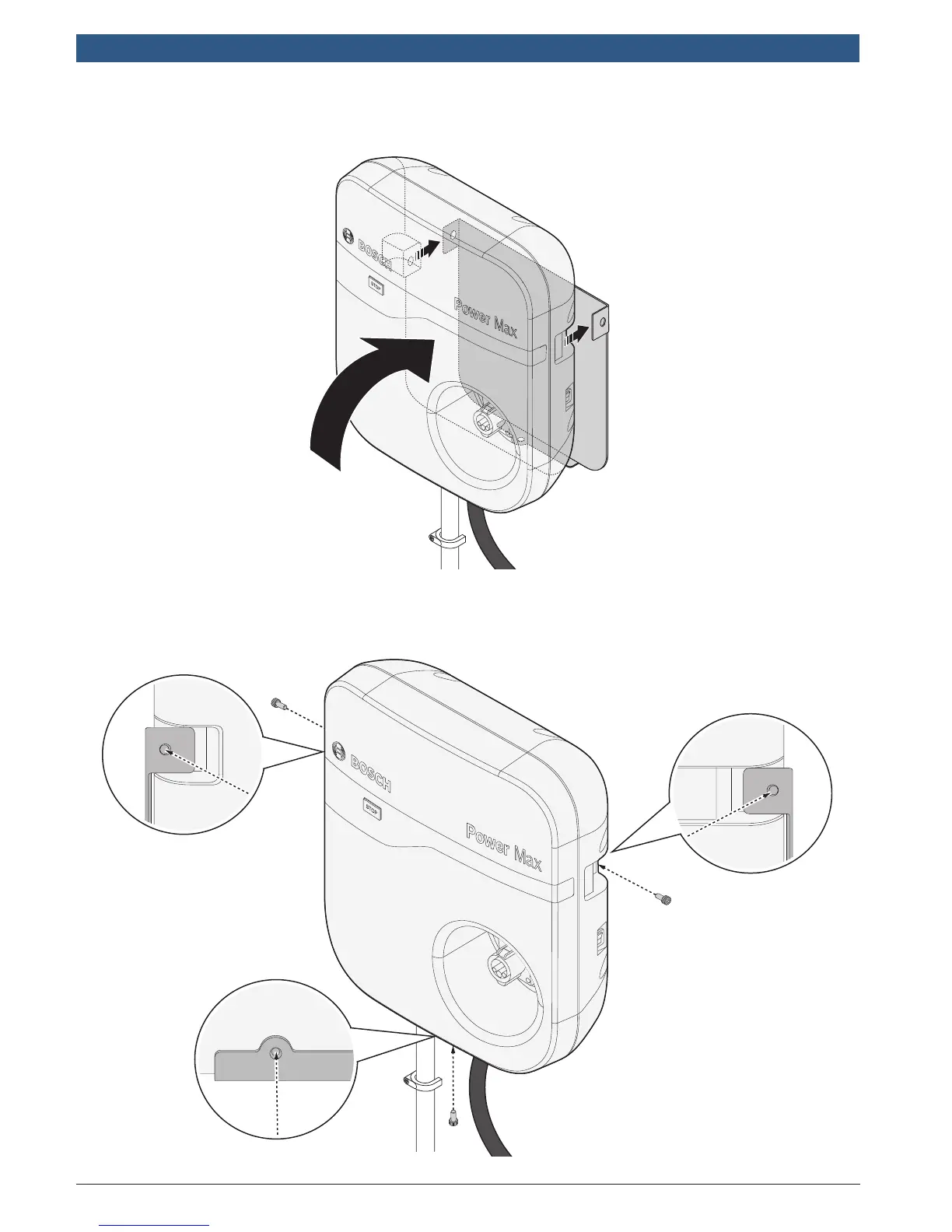

5. SeeFigure4-5.AlignthescrewholesofthemountingbracketwiththeLevel2ChargingStation.
Figure4-5.Alignmentofchargingstationonmountingbracket
6. SeeFigure4-6.Installandsecurethechargingstationtothemountingbracketwiththethree(3)screws
supplied.
Figure4-6.Installationscrewlocations
