Installation and Operating Instructions
|
Power Max Level 2 Charging Station | 7
|
en

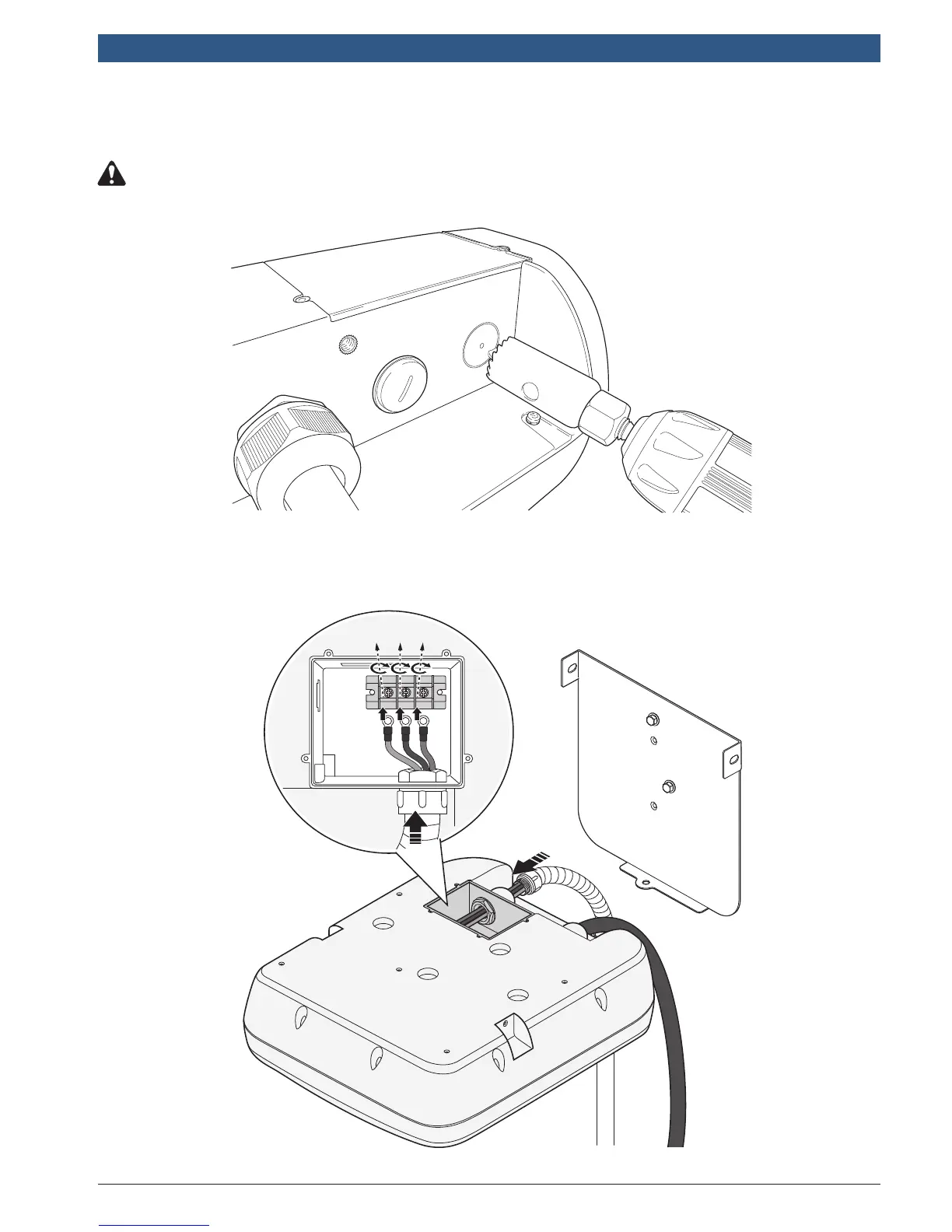

3. SeeFigure4-3.Drillaholeofanappropriatesizetoaccommodatetheconduitsystemttinginthebottomof
the plastic housing as shown.
CAUTION
Drill the hole carefully to avoid punching through the housing and damaging internal components
Place the Level 2 Charging Station on a soft surface during drilling to avoid damage.
Figure4-3.Drillingholeforconduit
4. SeeFigure4-4.Installringterminaleyeletsoneachwireendandconnecteachtothecorrectterminalinput
blockconnector.UsecopperwireoftheappropriatesizetooperatetheEVSEatitsratedamperageoutput.
Replacethecompartmentcoverandtorqueto4.6lb·in(0.5N·m).
G L2 L1
Figure4-4.Electricalwiringwithdetailofinputterminalblock
