11
Remote control installation
6 720 606 990
Remote control transceiver PCB
installation

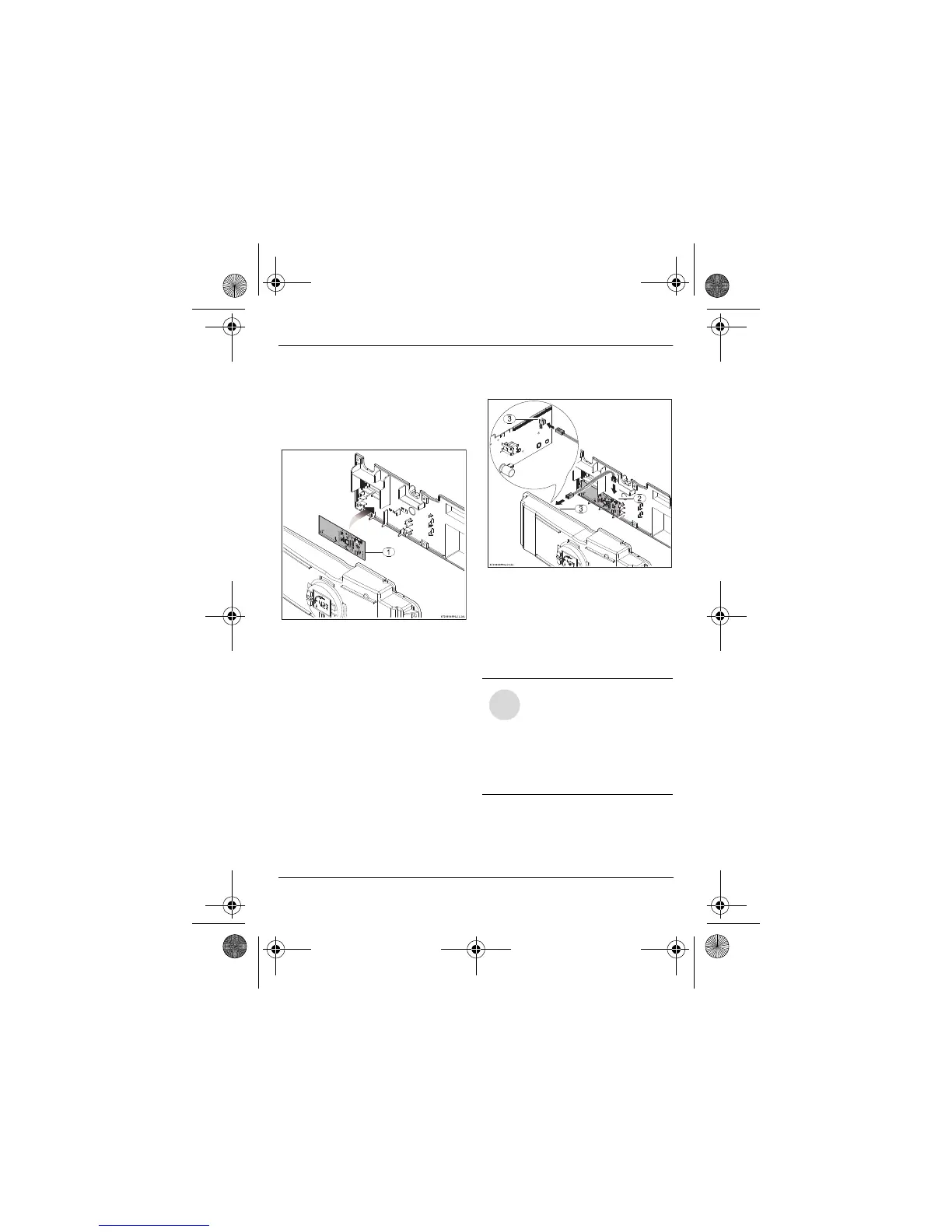

B Place the remote control PCB in the
back cover of the control unit as
shown in Fig. 8.
Fig. 8
B Connect the supplied cable
between the main PCB and the
remote control PCB as shown in Fig.
9.
Fig. 9
B Reassemble all parts in the reverse
order.
5.2 Remote control
activation
B Connect power to heater.
B Press ON / OFF button on the
appliance to OFF.
Before the remote
control will work, it must
be activated using the
procedure described
below with the operator
standing in front of the
appliance.
6720606990-1005_(Remote control).fm Page 11 Thursday, July 1, 2010 11:46 AM
