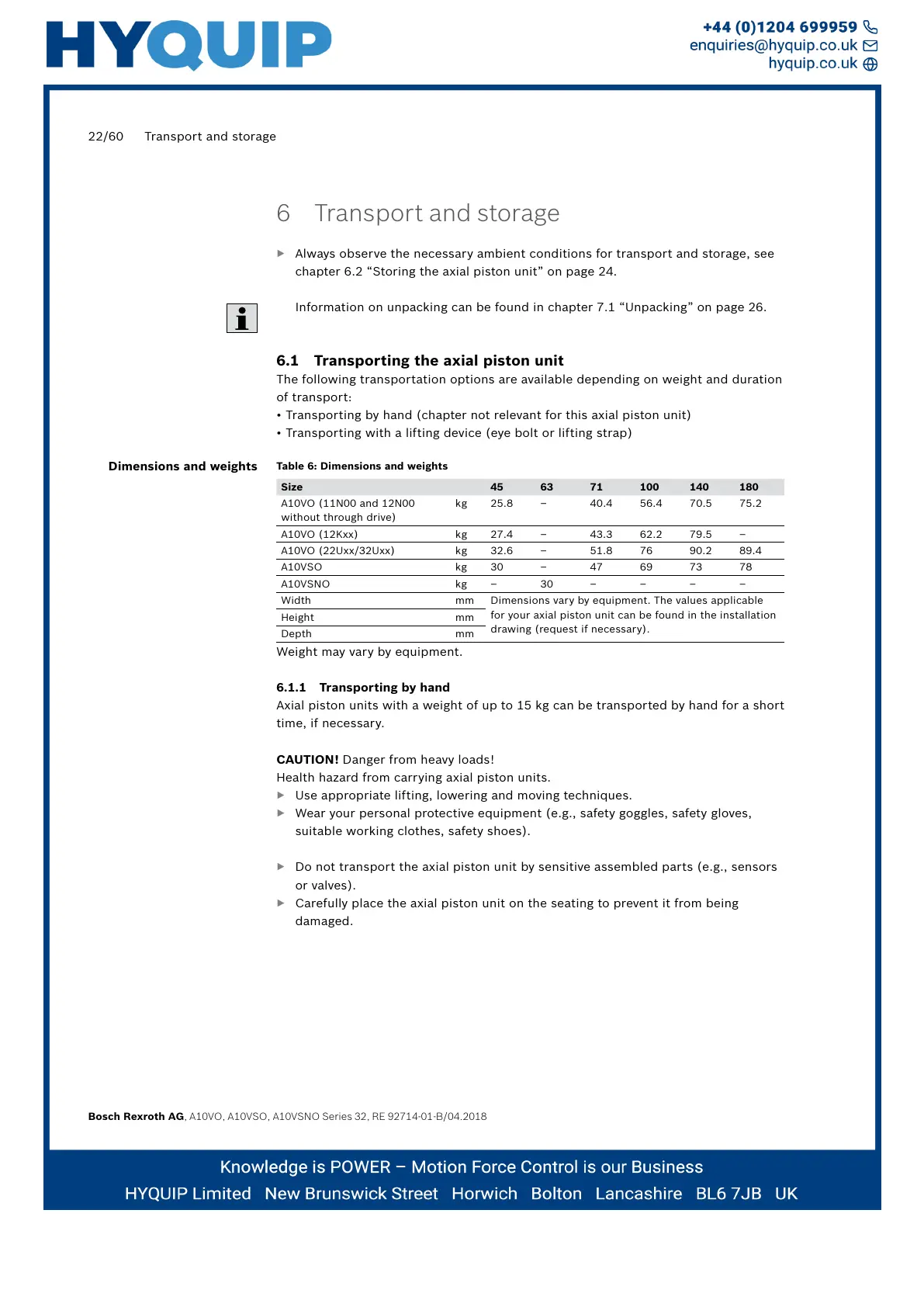

22/60 Transport and storage
Bosch Rexroth AG, A10VO, A10VSO, A10VSNO Series 32, RE 92714-01-B/04.2018
6 Transport and storage
▶ Always observe the necessary ambient conditions for transport and storage, see
chapter 6.2 “Storing the axial piston unit” on page 24.
Information on unpacking can be found in chapter 7.1 “Unpacking” on page 26.
6.1 Transporting the axial piston unit
The following transportation options are available depending on weight and duration
of transport:
• Transporting by hand (chapter not relevant for this axial piston unit)
• Transporting with a lifting device (eye bolt or lifting strap)
Table 6: Dimensions and weights
Size 45 63 71 100 140 180
A10VO (11N00 and 12N00
without through drive)
kg 25.8 – 40.4 56.4 70.5 75.2
A10VO (12Kxx) kg 27.4 – 43.3 62.2 79.5 –
A10VO (22Uxx/32Uxx) kg 32.6 – 51.8 76 90.2 89.4
A10VSO kg 30 – 47 69 73 78
A10VSNO kg – 30 – – – –
Width mm Dimensions vary by equipment. The values applicable
for your axial piston unit can be found in the installation
drawing (request if necessary).
Height mm
Depth mm
Weight may vary by equipment.
6.1.1 Transporting by hand
Axial piston units with a weight of up to 15 kg can be transported by hand for a short
time, if necessary.
CAUTION! Danger from heavy loads!
Health hazard from carrying axial piston units.
▶ Use appropriate lifting, lowering and moving techniques.
▶ Wear your personal protective equipment (e.g., safety goggles, safety gloves,
suitable working clothes, safety shoes).
▶ Do not transport the axial piston unit by sensitive assembled parts (e.g., sensors
or valves).
▶ Carefully place the axial piston unit on the seating to prevent it from being
damaged.
Dimensions and weights
