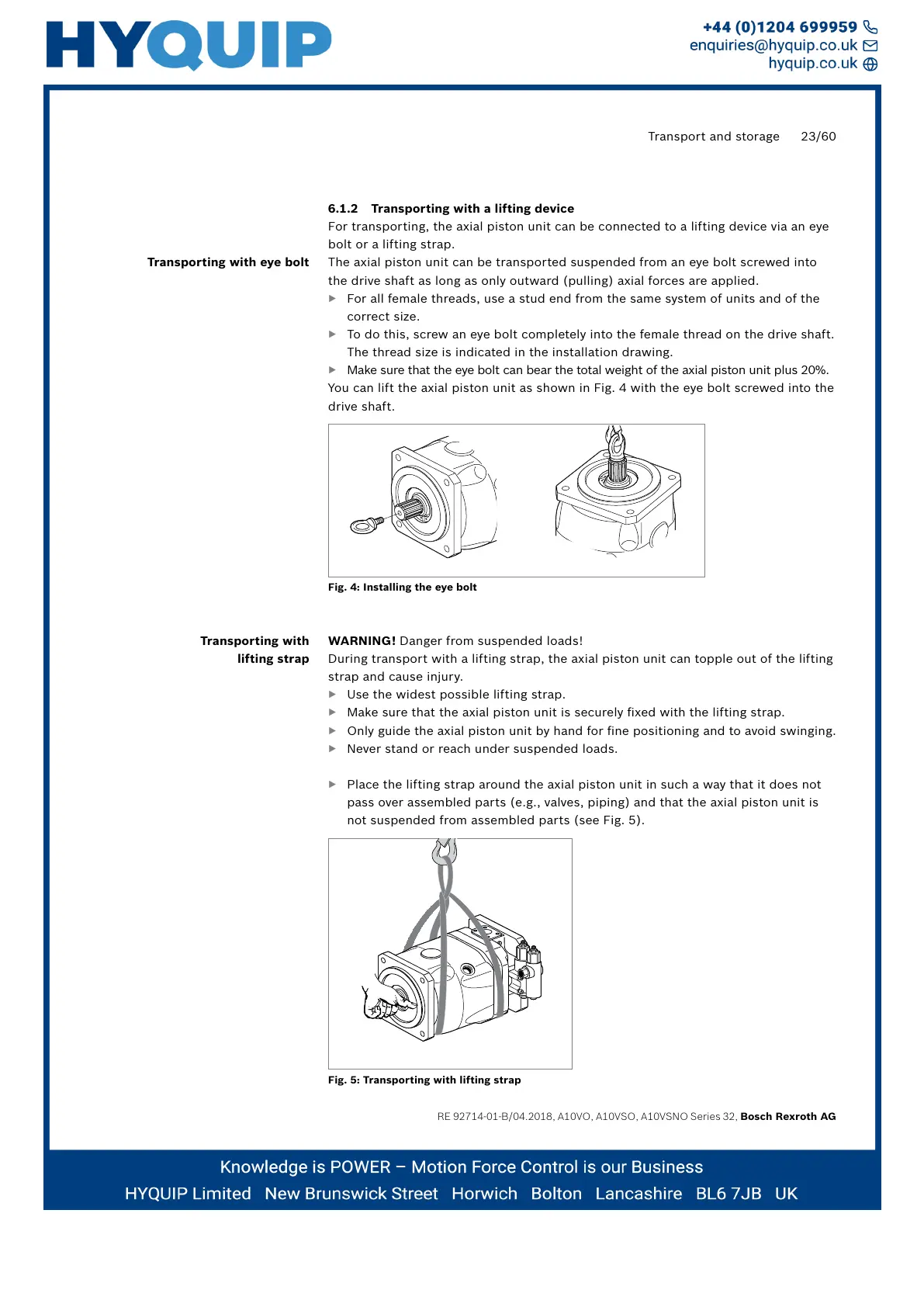

Transport and storage 23/60
RE 92714-01-B/04.2018, A10VO, A10VSO, A10VSNO Series 32, Bosch Rexroth AG
6.1.2 Transporting with a lifting device
For transporting, the axial piston unit can be connected to a lifting device via an eye
bolt or a lifting strap.
The axial piston unit can be transported suspended from an eye bolt screwed into
the drive shaft as long as only outward (pulling) axial forces are applied.
▶ For all female threads, use a stud end from the same system of units and of the
correct size.
▶ To do this, screw an eye bolt completely into the female thread on the drive shaft.
The thread size is indicated in the installation drawing.
▶ Make sure that the eye bolt can bear the total weight of the axial piston unit plus 20%.
You can lift the axial piston unit as shown in Fig. 4 with the eye bolt screwed into the
drive shaft.
Fig. 4: Installing the eye bolt
WARNING! Danger from suspended loads!
During transport with a lifting strap, the axial piston unit can topple out of the lifting
strap and cause injury.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit is securely fixed with the lifting strap.
▶ Only guide the axial piston unit by hand for fine positioning and to avoid swinging.
▶ Never stand or reach under suspended loads.
▶ Place the lifting strap around the axial piston unit in such a way that it does not
pass over assembled parts (e.g., valves, piping) and that the axial piston unit is
not suspended from assembled parts (see Fig. 5).
Fig. 5: Transporting with lifting strap
Transporting with eye bolt
Transporting with
lifting strap
