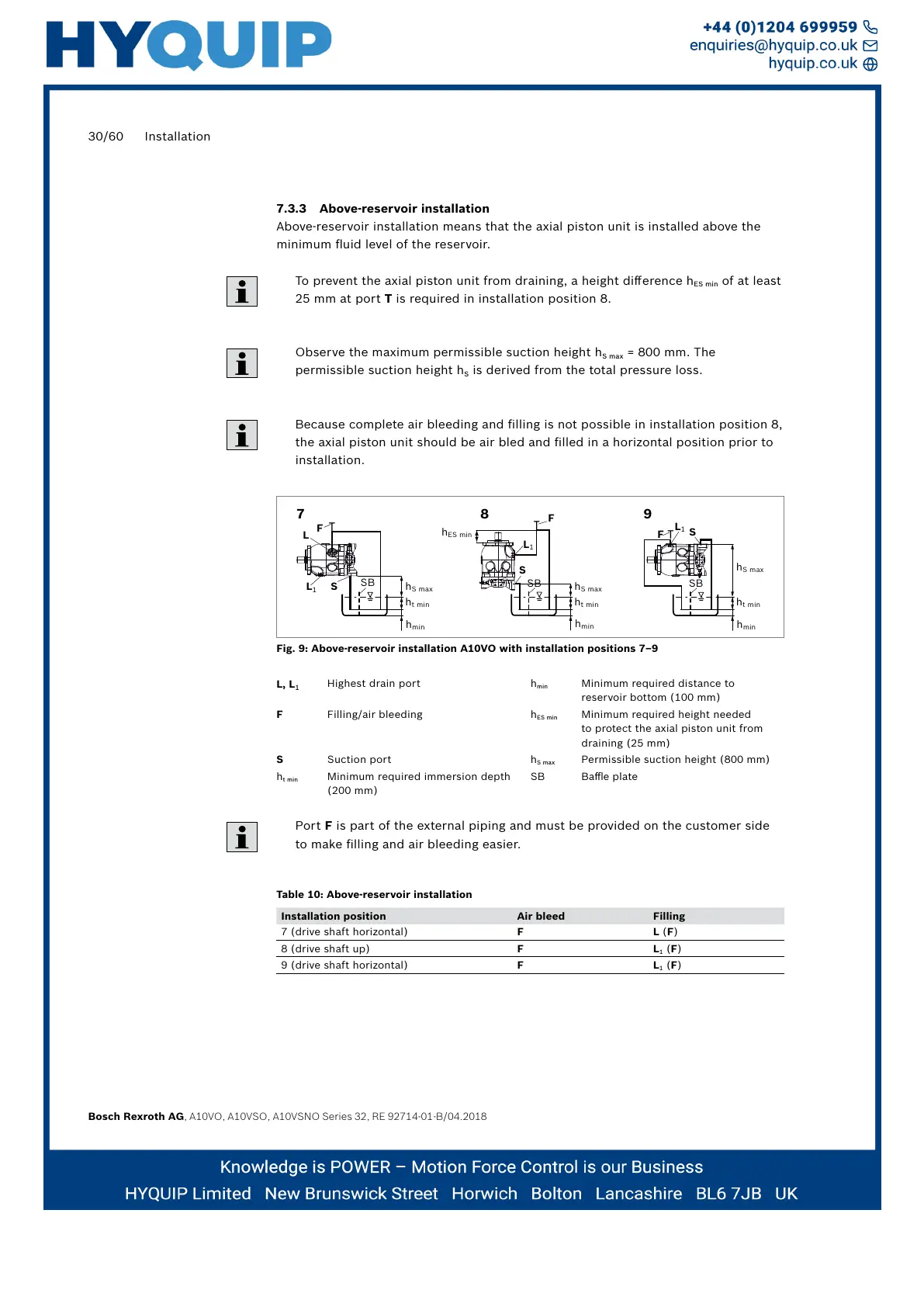

7.3.3 Above-reservoir installation
Above-reservoir installation means that the axial piston unit is installed above the
minimum fluid level of the reservoir.
To prevent the axial piston unit from draining, a height difference h
ESmin
of at least
25 mm at port T is required in installation position8.
Observe the maximum permissible suction heighth
Smax
= 800 mm. The
permissible suction heighth
S
is derived from the total pressure loss.
Because complete air bleeding and filling is not possible in installation position 8,
the axial piston unit should be air bled and filled in a horizontal position prior to
installation.
h
ES min
7
h
t min
h
min
L
1
L
S
8
L
1
S
9
S
L
1
h
S max
h
t min
h
min
SB
h
S max
F
T
F
T
h
t min
h
min
SB
h
S max
F
T
SB
Fig. 9: Above-reservoir installation A10VO with installation positions 7–9
L, L
1
Highest drain port h
min
Minimum required distance to
reservoir bottom (100 mm)
F Filling/air bleeding h
ES min
Minimum required height needed
to protect the axial piston unit from
draining (25 mm)
S Suction port h
S max
Permissible suction height (800 mm)
h
t min
Minimum required immersion depth
(200 mm)
SB Baffle plate
Port F is part of the external piping and must be provided on the customer side
to make filling and air bleeding easier.
Table 10: Above-reservoir installation
Installation position Air bleed Filling
7 (drive shaft horizontal) F L (F)
8 (drive shaft up) F L
1
(F)
9 (drive shaft horizontal) F L
1
(F)
