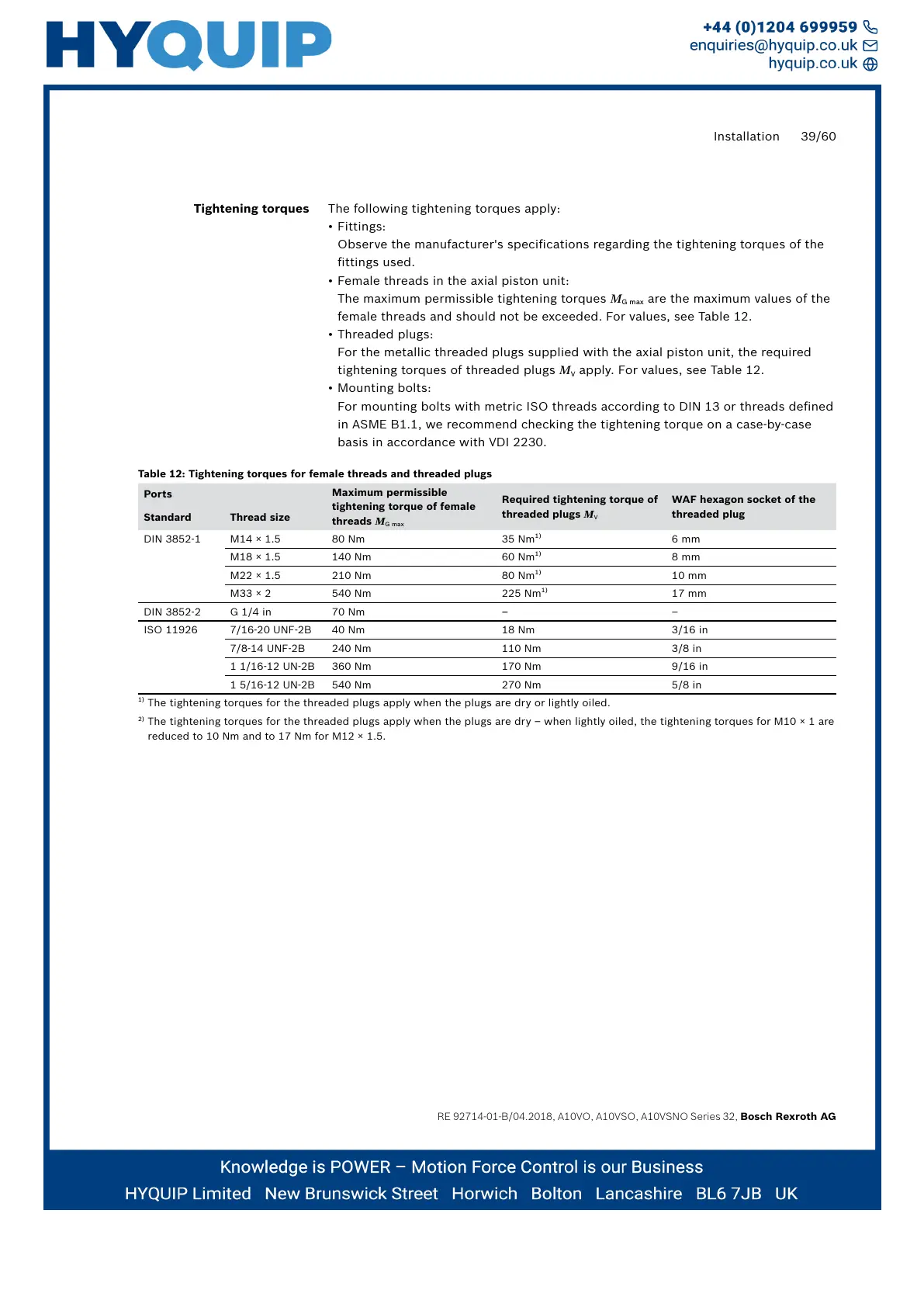

Installation 39/60
RE 92714-01-B/04.2018, A10VO, A10VSO, A10VSNO Series 32, Bosch Rexroth AG
The following tightening torques apply:
• Fittings:
Observe the manufacturer's specifications regarding the tightening torques of the
fittings used.
• Female threads in the axial piston unit:
The maximum permissible tightening torques M
Gmax
are the maximum values of the
female threads and should not be exceeded. For values, see Table 12.
• Threaded plugs:
For the metallic threaded plugs supplied with the axial piston unit, the required
tightening torques of threaded plugs M
V
apply. For values, see Table 12.
• Mounting bolts:
For mounting bolts with metric ISO threads according to DIN 13 or threads defined
in ASME B1.1, we recommend checking the tightening torque on a case-by-case
basis in accordance with VDI 2230.
Table 12: Tightening torques for female threads and threaded plugs
Ports
Maximum permissible
tightening torque of female
threads M
G max
Required tightening torque of
threaded plugs M
V
WAF hexagon socket of the
threaded plug
Standard Thread size
DIN 3852-1 M14 × 1.5 80 Nm 35 Nm
1)
6 mm
M18 × 1.5 140 Nm 60 Nm
1)
8 mm
M22 × 1.5 210 Nm 80 Nm
1)
10 mm
M33 × 2 540 Nm 225 Nm
1)
17 mm
DIN 3852-2 G 1/4 in 70 Nm – –
ISO 11926 7/16-20 UNF-2B 40 Nm 18 Nm 3/16 in
7/8-14 UNF-2B 240 Nm 110 Nm 3/8 in
1 1/16-12 UN-2B 360 Nm 170 Nm 9/16 in
1 5/16-12 UN-2B 540 Nm 270 Nm 5/8 in
1)
The tightening torques for the threaded plugs apply when the plugs are dry or lightly oiled.
2)
The tightening torques for the threaded plugs apply when the plugs are dry – when lightly oiled, the tightening torques for M10×1 are
reduced to 10 Nm and to 17 Nm for M12×1.5.
Tightening torques
