ctrlX CORE X7
Interface description
Bosch Rexroth AG
R911419122, Edition 01
9 Interfaces
9.1 Interface description
1
2
4
567
8
9
11
3
10

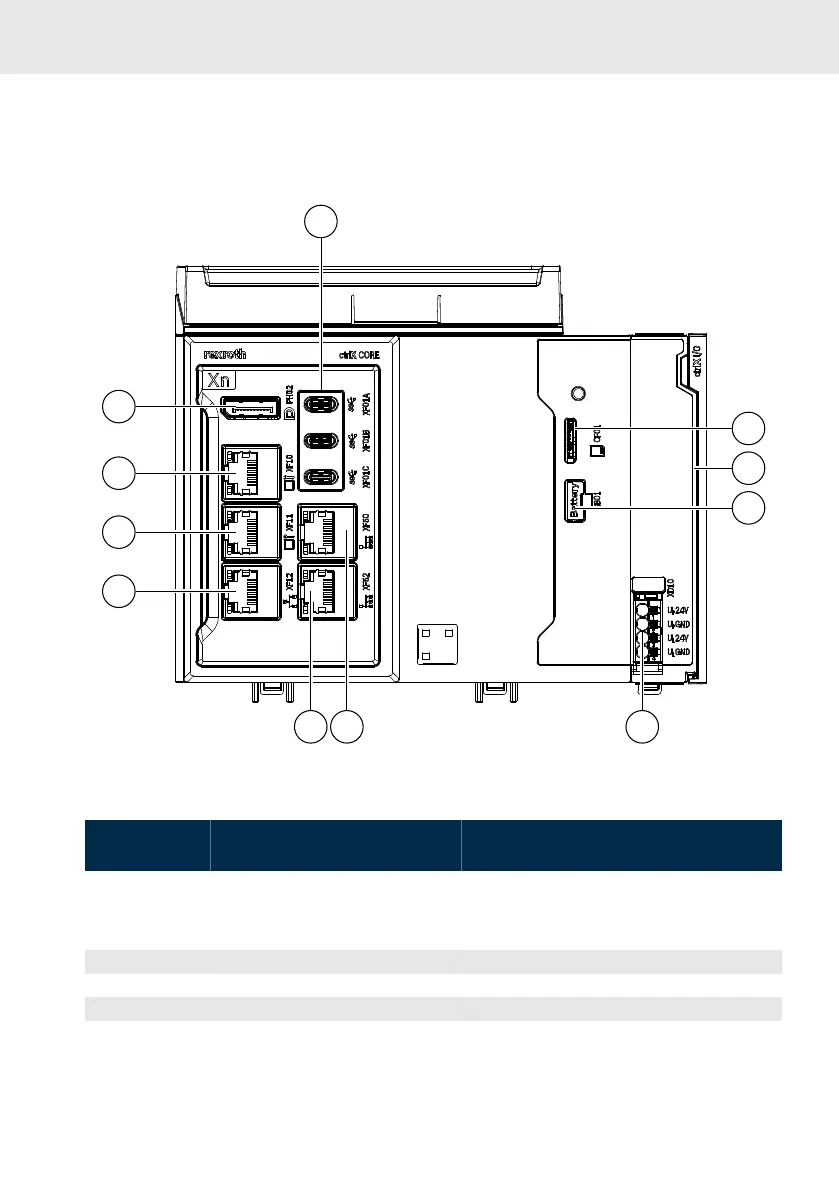

Fig. 4: Interfaces
Table 5: Control interfaces
No. Name Connection type Connector type
(integrated)
Mating connector and cable
(From outside)
①
XF01A
XF01B
XF01C
USB host
USB 3.1
USB socket,
Type C
USB plug,
Type C
②
CF01 Slot for SD card
‒
SD card
③
Local bus interface for EtherCAT
‒ ‒
④
GB01 Battery case
‒ ‒
⑤
XD10 24 V plug U
L
, U
P
4-pin 4-pin
