7 Examples of application
7.1 Examples of application for ctrlX DRIVE
The diagrams of the passive safety units show the safety function
in its deselected state. The switches in the passive safety units
are for exemplary purposes only. The decisive factor is that the
passive safety unit complies with the safety level the application
requires.
7.1.1 STO function in the case of selection via passive safety units
Dual-channel wiring

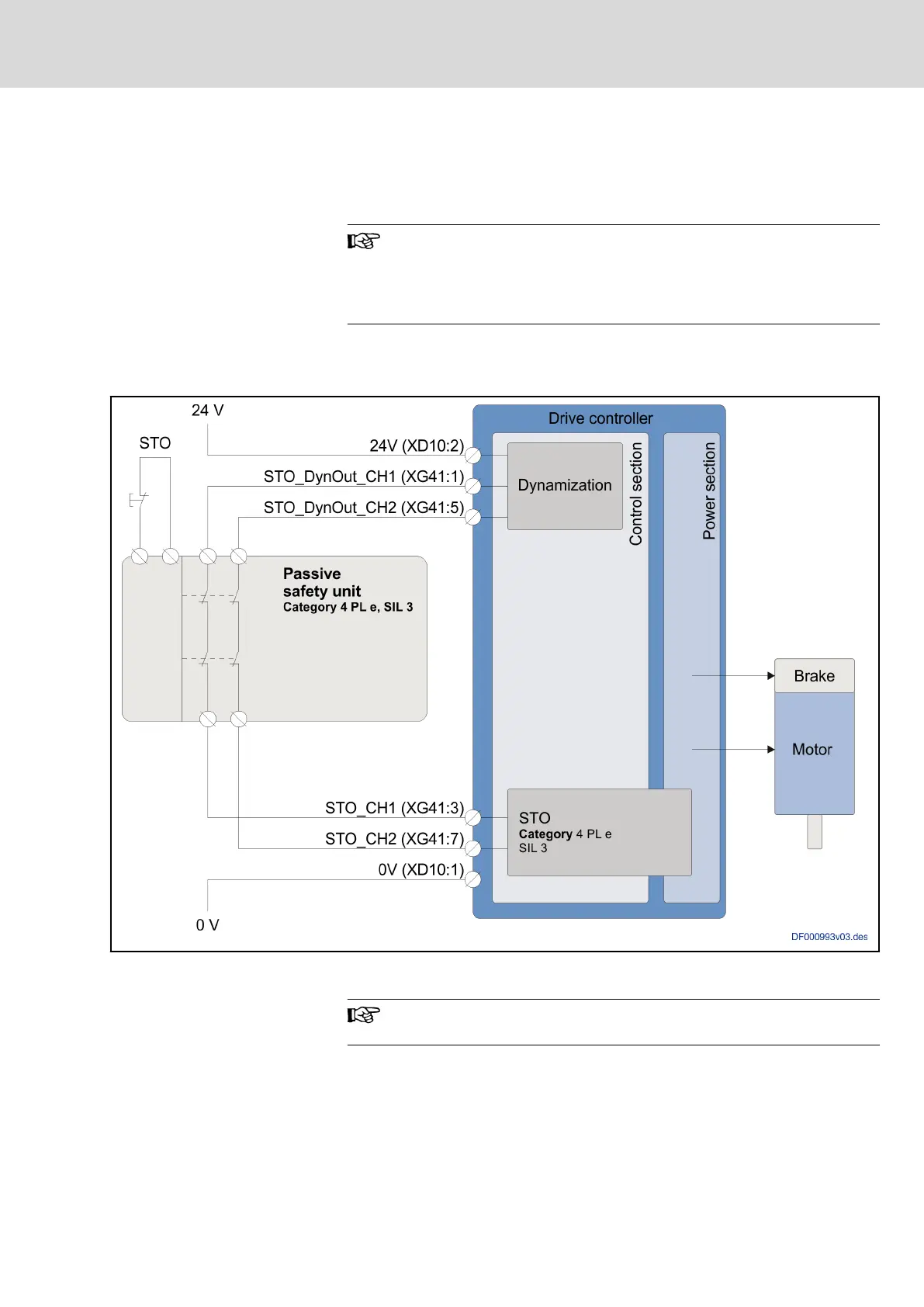

Fig. 7-1: STO function with dual-channel wiring for single-axis devices and
passive safety unit
The assignment of the dynamization signals can be selected as
desired.
ctrlX SAFETY "Safe Torque Off" Safety Option in ctrlX DRIVE
31/65
Examples of application
R911383774_Edition 03 Bosch Rexroth AG
