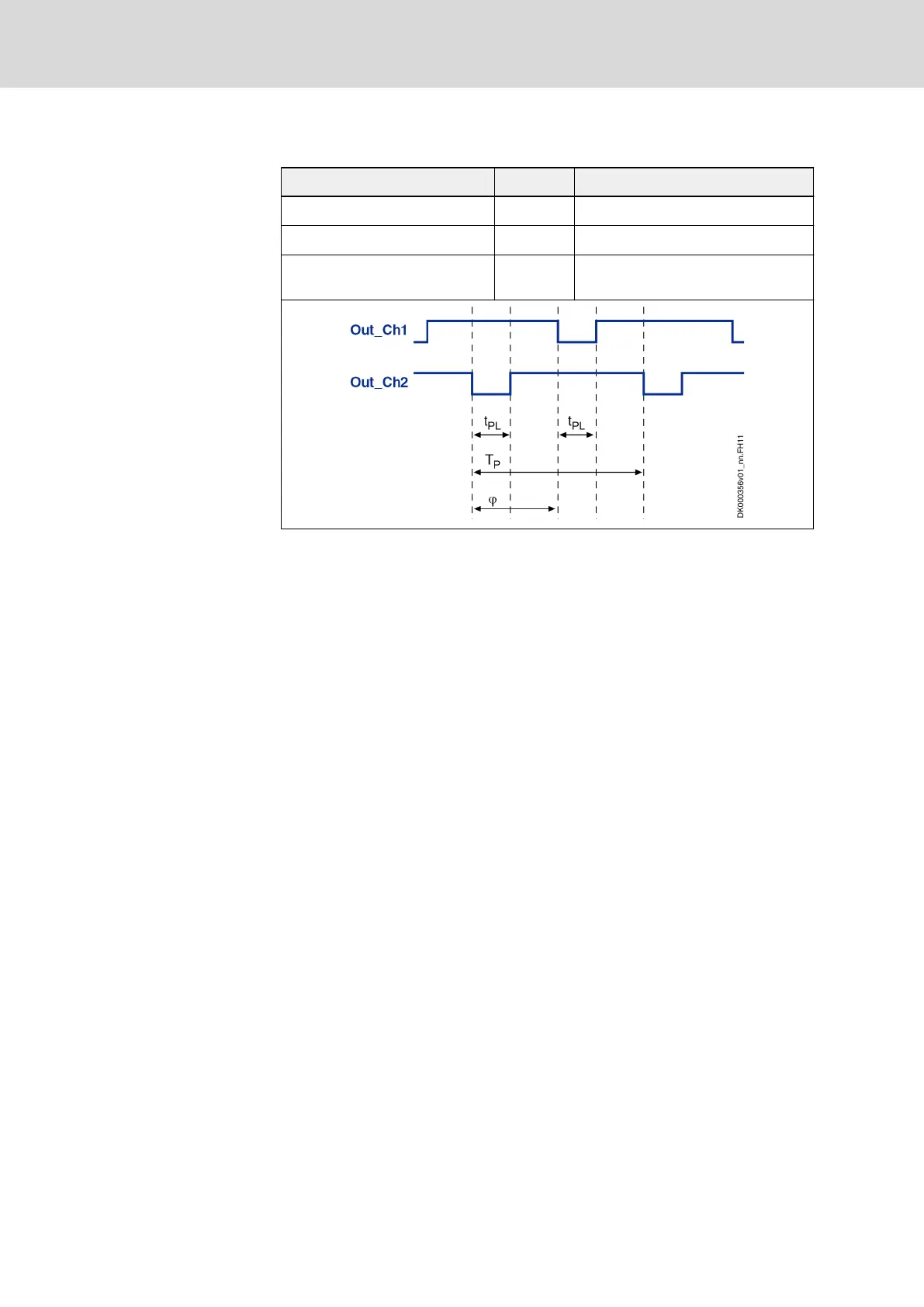

Time behavior
Description Unit typ.
Test pulse width (t
PL
) μs 400
Periodic time (T
P
) ms 500
Phase shift between two test
pulses on both channels (φ)
° 180
Tab. 12-5: Time behavior
