20/84 Bosch Rexroth AG IM24V | 3 609 929 B37/2008-09
4 Product description
4 Product description
Performance description
The IM24V interface module makes it
possible to control a tightening system via a
24 V interface or to output 24 V status
signals from the tightening system. Actuators
and initiators can also be connected at this
interface. Several of these modules can be
used within a tightening system. The
appropriate function is simply selected in the
operating program.
The IM24V offers the option to completely
isolate the inputs and outputs galvanically.
A power pack, which is not included in the
delivery contents, is necessary to do this.
Device description
The module provides 10 inputs and 13
outputs. The outputs are short circuit-proof
and protected against reverse polarity.

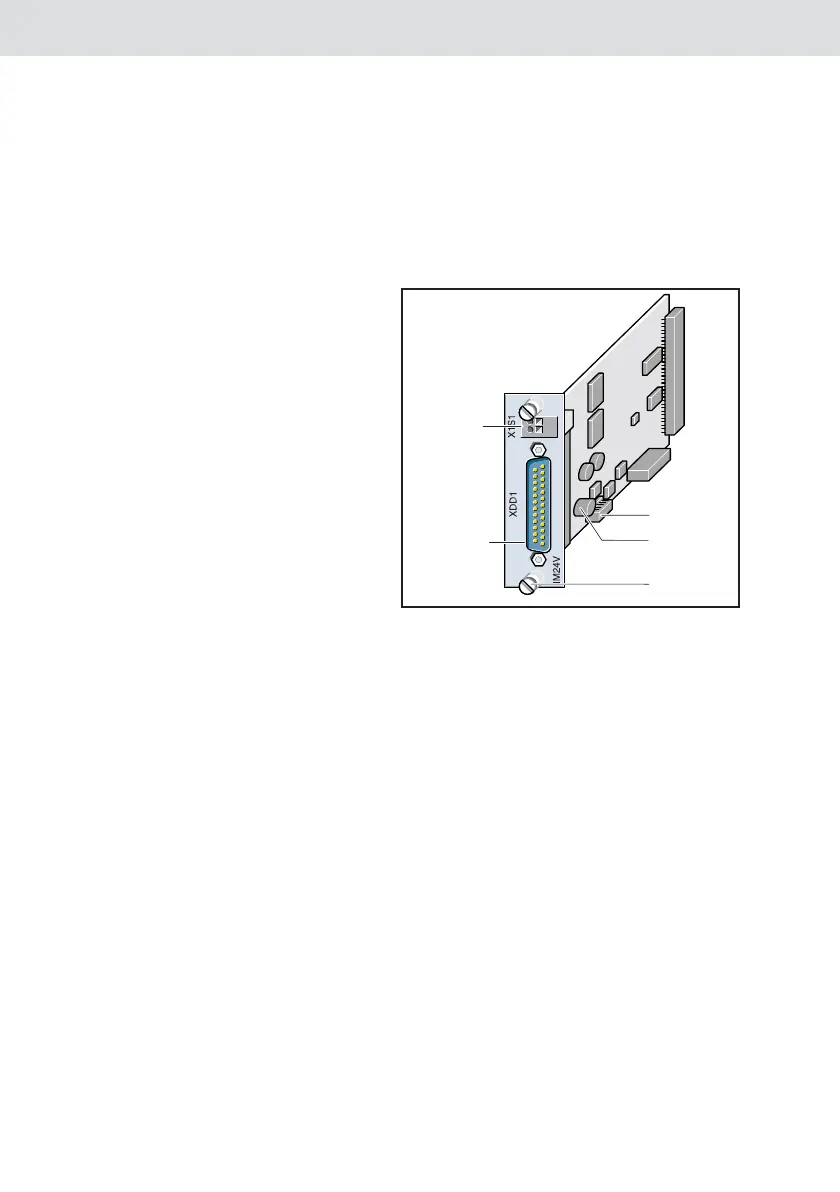

Fig. 1: IM24V interface module
1 X1S1 interface
2 XDD1 interface
3 Jumper for internal/external power
supply
4 Fuse
5 Screws
1
2
3
4
5
4V
GND
