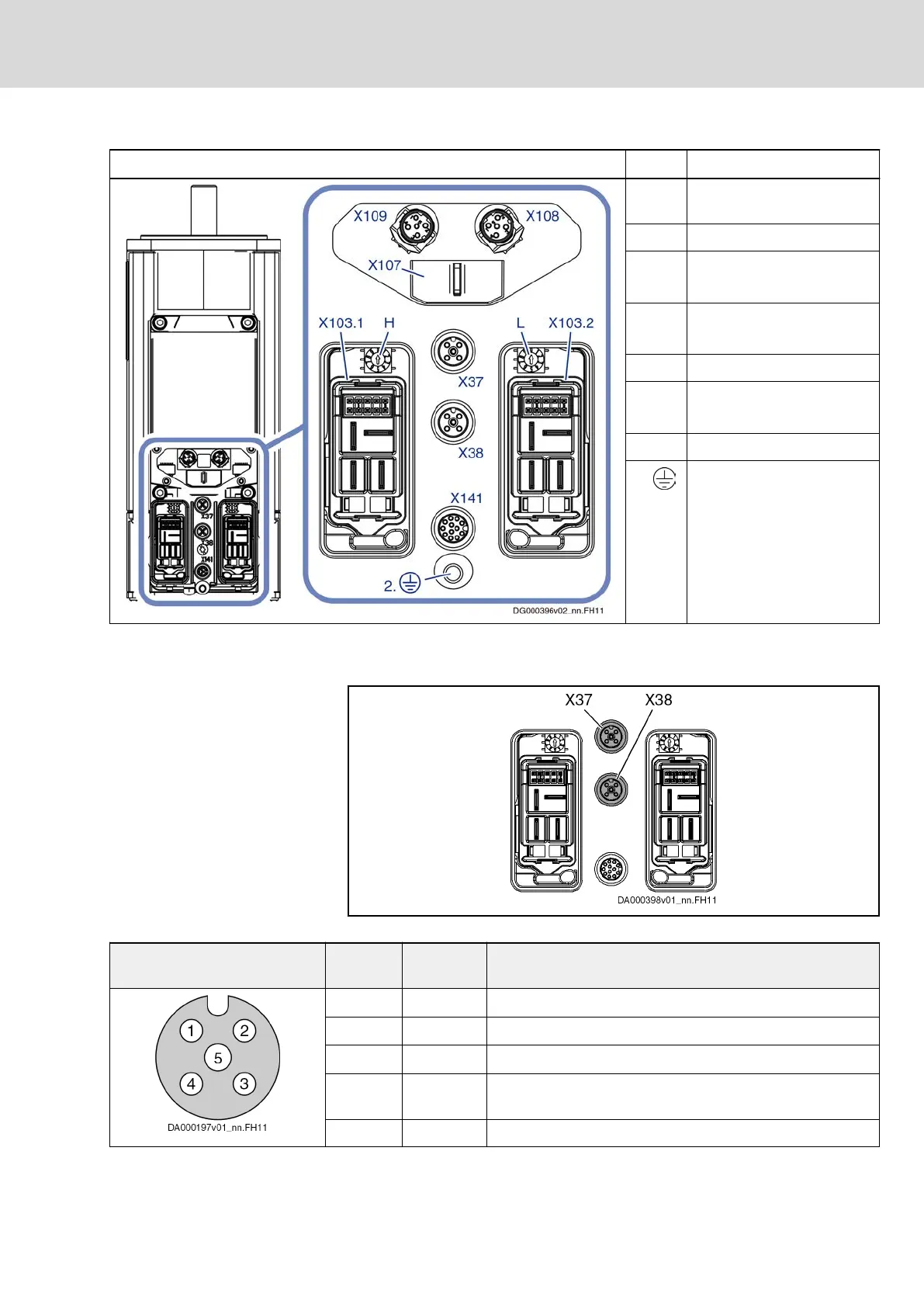

Figure Element Significance
H Address selector switch
(10×)
L Address selector switch (1×)
X37
X38
Digital inputs/outputs
X103.1
X103.2
Hybrid cable
X107 Programming module
X108
X109
Communication output
coupling (optional)
X141 Safety technology (optional)
2.
Second connection point of
equipment grounding
conductor
Tab. 12-9: Connection Points KSM02
X37, X38, Digital Inputs/Outputs
Fig. 12-2: X37 and X38
View Connectio
n
Signal
name
Function
X37.1
U
ext
External supply 19 … 30 V, max. 1 A, connected to X38.1
X37.2 I/O_3 Dig. I/O, configurable
X37.3
0 V
ext
Reference potential; external supply, connected to X38.3
X37.4 I/O_1
Dig. I/O, configurable,
can be used as probe
X37.5 PE For cable shield
DOK-INDRV*-SI3-**VRS**-AP06-EN-P
Rexroth IndraDrive Integrated Safety Technology "Safe Torque Off" (as of MPx-16)
Bosch Rexroth AG 127/149
Project planning
