Function 17/54
3 842 358 814/2017-01, MIT: LU 2, Bosch Rexroth AG
6.2 PULSE mode
In PULSE mode delivery volume can be entered in defi ned steps.
According to the volume of the oil container entered LC 2 (= LC250),
a certain number of lubricant deliveries follow, with the appropriate
delivery volume.

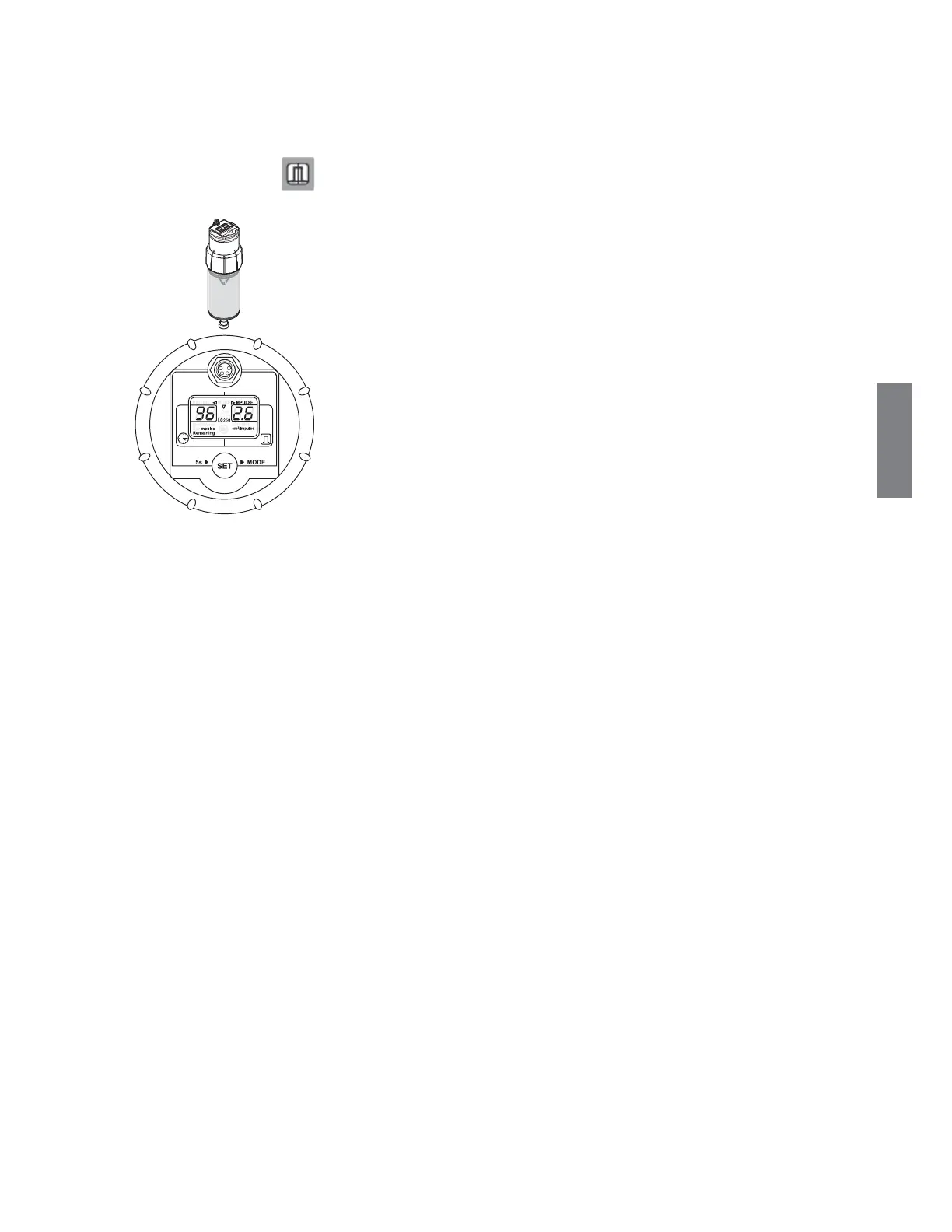

• The operating mode, the oil container used LC 2 (LC250), and the required delivery
volume per pulse (delivery) are entered via the display using the SET button.
• If the number of remaining pulses (deliveries) is 100 or greater, the following
indicator appears in the display
>
99 (Field in the table with a gray background).
• The delivery is carried out once with supply voltage (rising fl ank).
• The supply voltage must be present at least as long enough for the delivery
process to be completed (min. 2 minutes).
• Before the following delivery the supply voltage must be shut down for > 1 s.
• The signaling/display of system states and errors is only possible when the
supply voltage is present.
