Bosch Rexroth LU 2 - Installing the Product

Installation 29/54
3 842 358 814/2017-01, MIT: LU 2, Bosch Rexroth AG
8.5 Installing the product
8.5.1 Install the holder for the lubrication unit LU 2

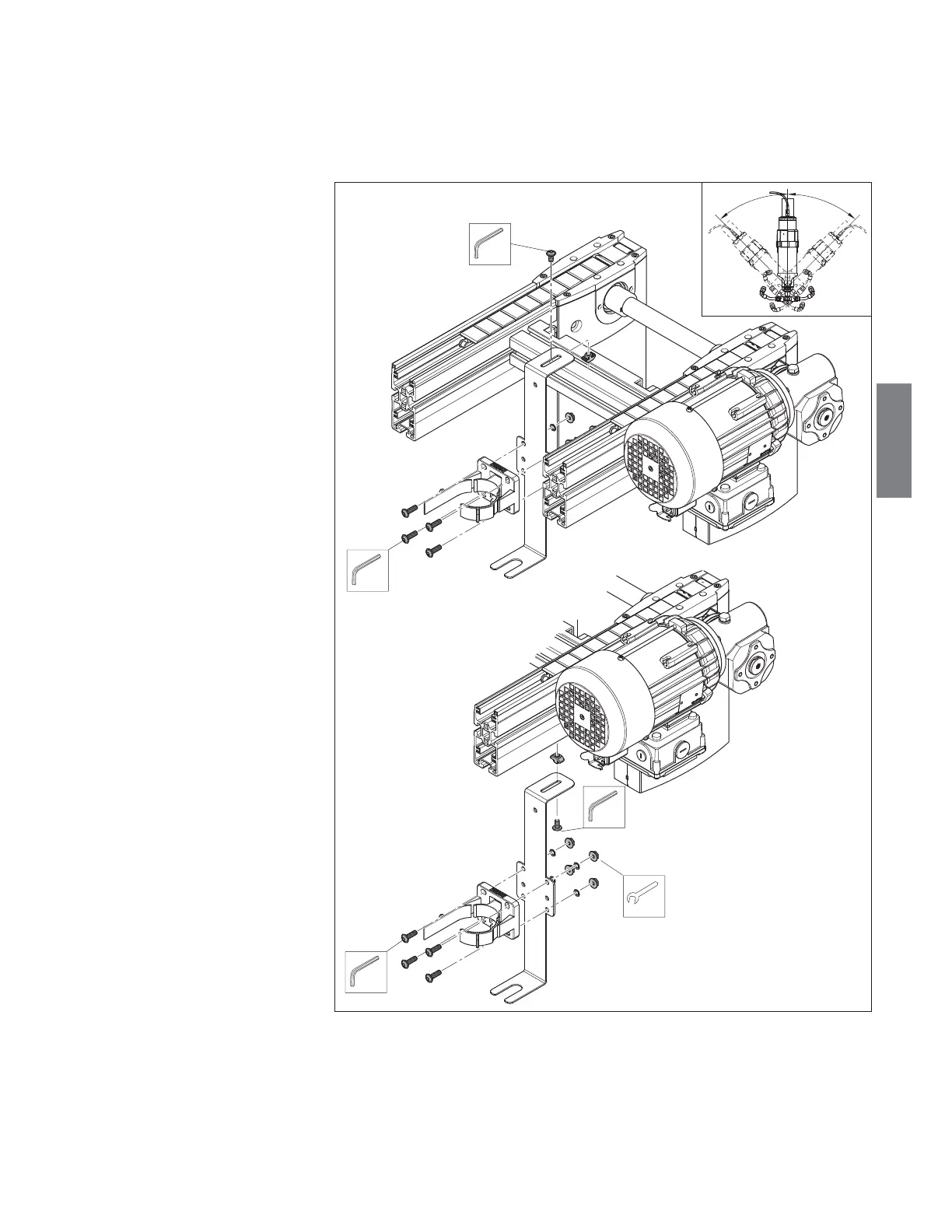

Fig. 9:
M
D
= 10Nm
SW4
M
D
= 10Nm
SW4
M
D
= 10Nm
SW4
SW10
358 814-02
M
D
= 10Nm
B
A
SW4
max.
±45°
max.
±45°
Install the holder for the lubrication unit LU 2
f Mount the holder
vertically near the drive,
either
- at a transverse
connector (A) or
- below the
section profi le (B).
