38/54 Installation
Bosch Rexroth AG, MIT: LU 2, 3 842 358 814/2017-01
8.6 Make the electrical connection to the product
WARNING
High electrical voltage!
Risk of serious injury or death from electric shock.
f Make sure the relevant system component is not under pressure or voltage
before electrically connecting the product.
f Secure the system against being switched on unintentionally.
NOTICE
Damage to the product caused by faulty electrical connection
The product can be damaged.
f Electrical connection requires basic mechanical and electrical knowledge.
f The product may only be operated by qualifi ed personnel (see page 8).
f The voltage supply must comply with the connection data of the lubrication unit
(see “Technical data” on page 52).
• Choose control and sensor elements in accordance with EN ISO 13849.
• Observe VDE specifi cation VDE 0100 in Germany or the appropriate specifi cations
in the country of use.

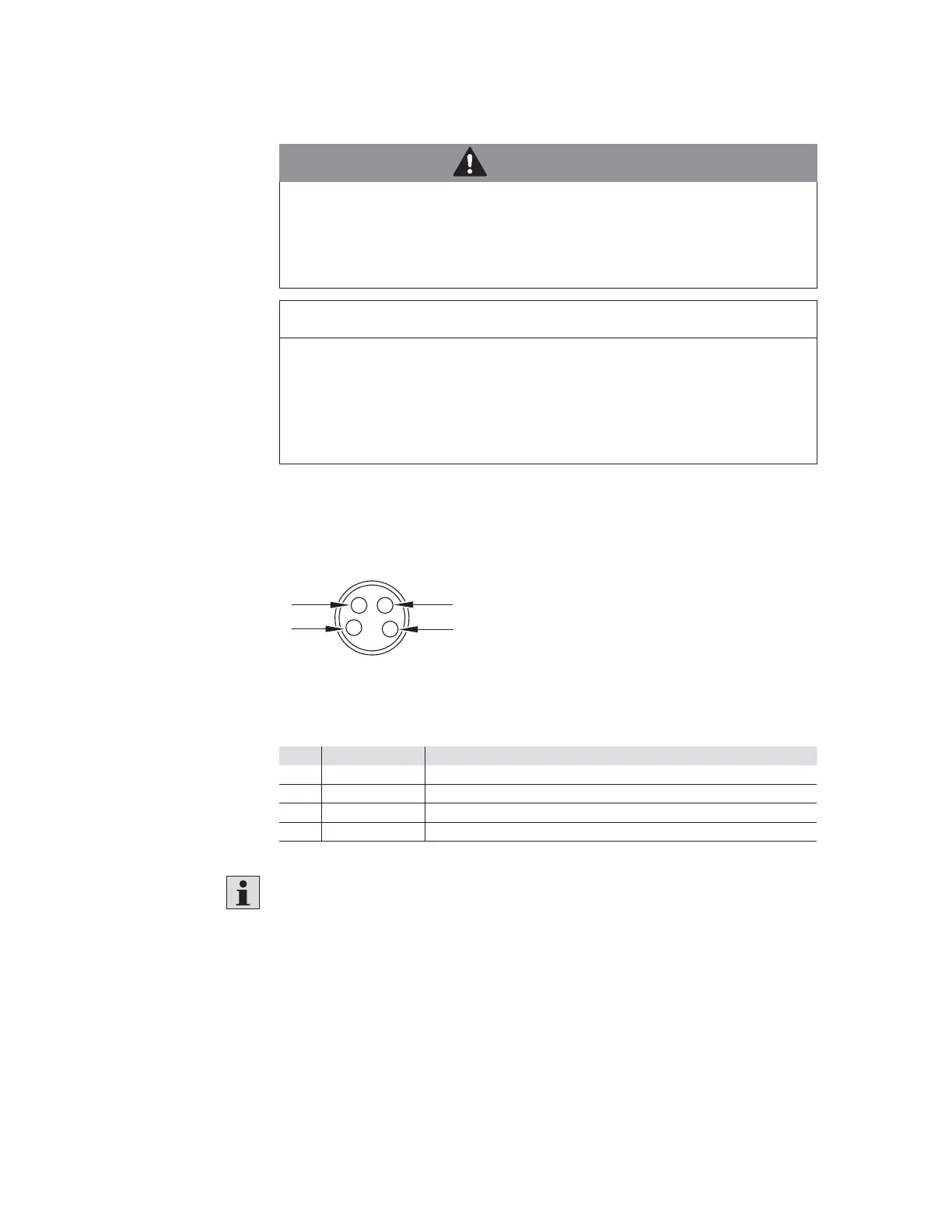

Fig. 18:
358 814-10
4
3
2
1
Plug assignment (view of the drive socket)
Table 10: Plug assignment
Pin Cable color Signal
1 brown Voltage supply + V DC
2 white Signal output
3 blue Voltage supply GND
4 black Signal output Err
Signal states for the outputs OK and Err see Table 8 on page 25.
