Maintenance and repair 47/54
3 842 358 814/2017-01, MIT: LU 2, Bosch Rexroth AG

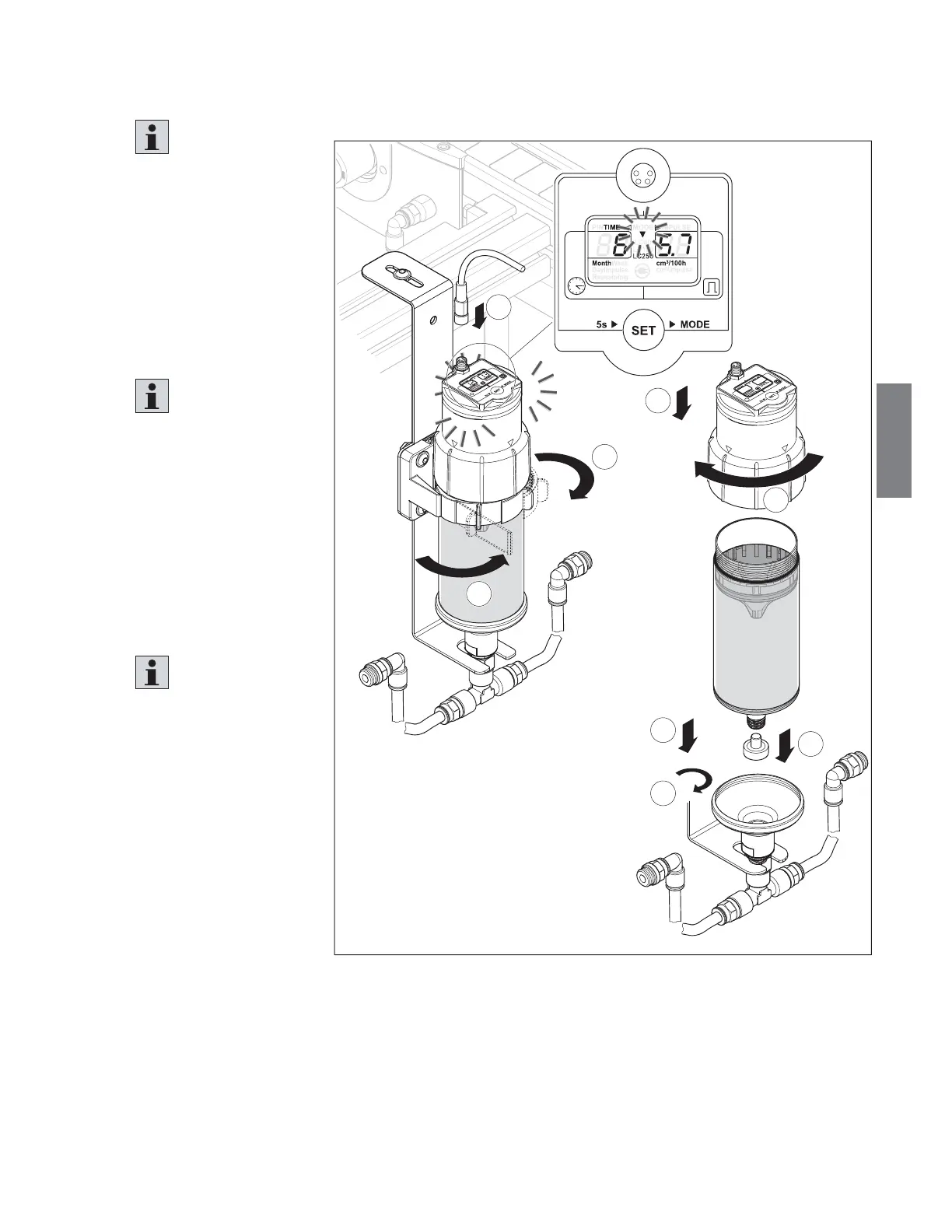

Fig. 23:
5
4
3
358 814-24
GN
GN
6
6
7
2
1
Assemble oil container LC 2
Please note:
The oil container may only
be screwed in 1x.
f Install drive on oil
container LC 2
see page 31.
f Install drive with oil
container LC 2 in
support bracket
see page 32.
Please note:
• After connecting the
power cable and with
supply voltage present,
the LED indicators
fl ash green (GN) in
5 s intervals.
•A fl ashing arrow icon
appears d in the display.
• The lubricating unit is ready
for operation with the
parameters previously set.
Please note:
Only in pulse mode
: After
re-establishing the supply
voltage
a delivery process
is carried out. During the
delivery the drive and the
LED indicators fl ash at
1 s intervals.
ENGLISH
358814_2017_01_EN.indd 47 16.01.2017 13:38:19
