Subject to change without prior notice Revised 05-12
6 720 220 046
18 TA Series
Well Water Application

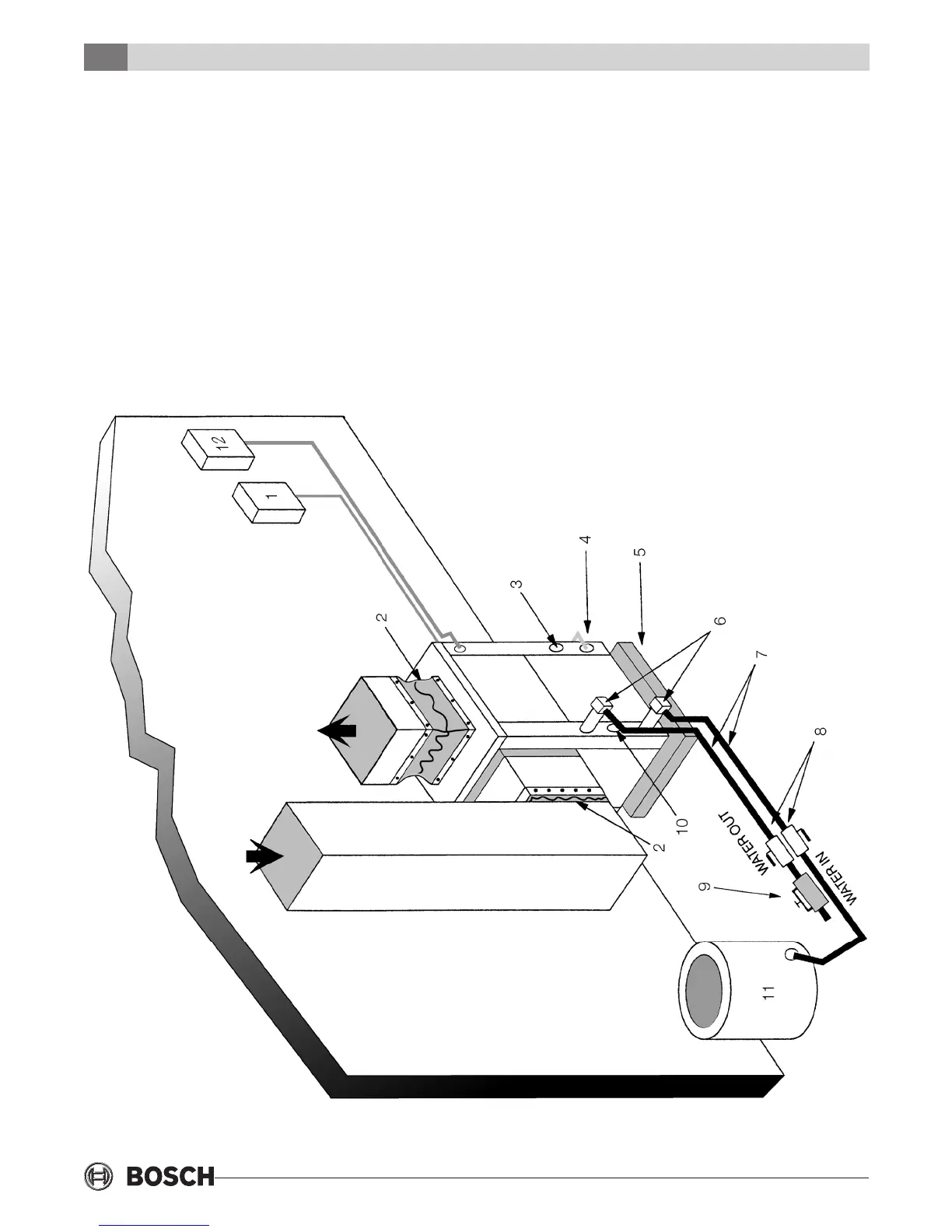

Figure 10: Well Water Application
WELL WATER APPLICATIONS (50°F EWT MIN.)
1. LINE VOLTAGE DISCONNECT (UNIT)
2. FLEX DUCT CONNECTION
3. LOW VOLTAGE CONTROL CONNECTION
4. LINE VOLTAGE CONNECTION
5. VIBRATION PAD
6. P/T PORTS
7. HOSE KITS (Optional)
8. BALL VALVES
9. SOLENOID VALVE SLOW CLOSING
10. CONDENSATE DRAIN CONNECTION
11. PRESSURE TANK (Optional)
12. LINE VOLTAGE DISCONNECT (ELECTRIC HEATER)
NOTE: SEE FIGURE #3 FOR CONDENSATE DRAIN CONNECTION
