12/48 Bosch Rexroth AG | Hydraulics Installation and operation | RE 30523-B/09.13
2 Installing the VSPD
2.4 Installing the card
Only take the card from its packaging at a protected workplace.
Do not touch electrical components and install the controller card as shown in Fig. 2
Installing the controller card in the card holder provided for this purposes.
Installing the VSPD controller card correctly:
¾ De-energize the rack used.
¾ Hold the controller card by the front panel and take it out of the packing.
¾ Slide the controller card into the guard rails of the rack as shown in Fig. “Installing
the controller card” without using excessive force.
¾ Snap the edge connector in place by gently pressing on the front panel.
HACD_HW_EN_2-2
mounting
screws
male connector
card
Faceplate
guide rails

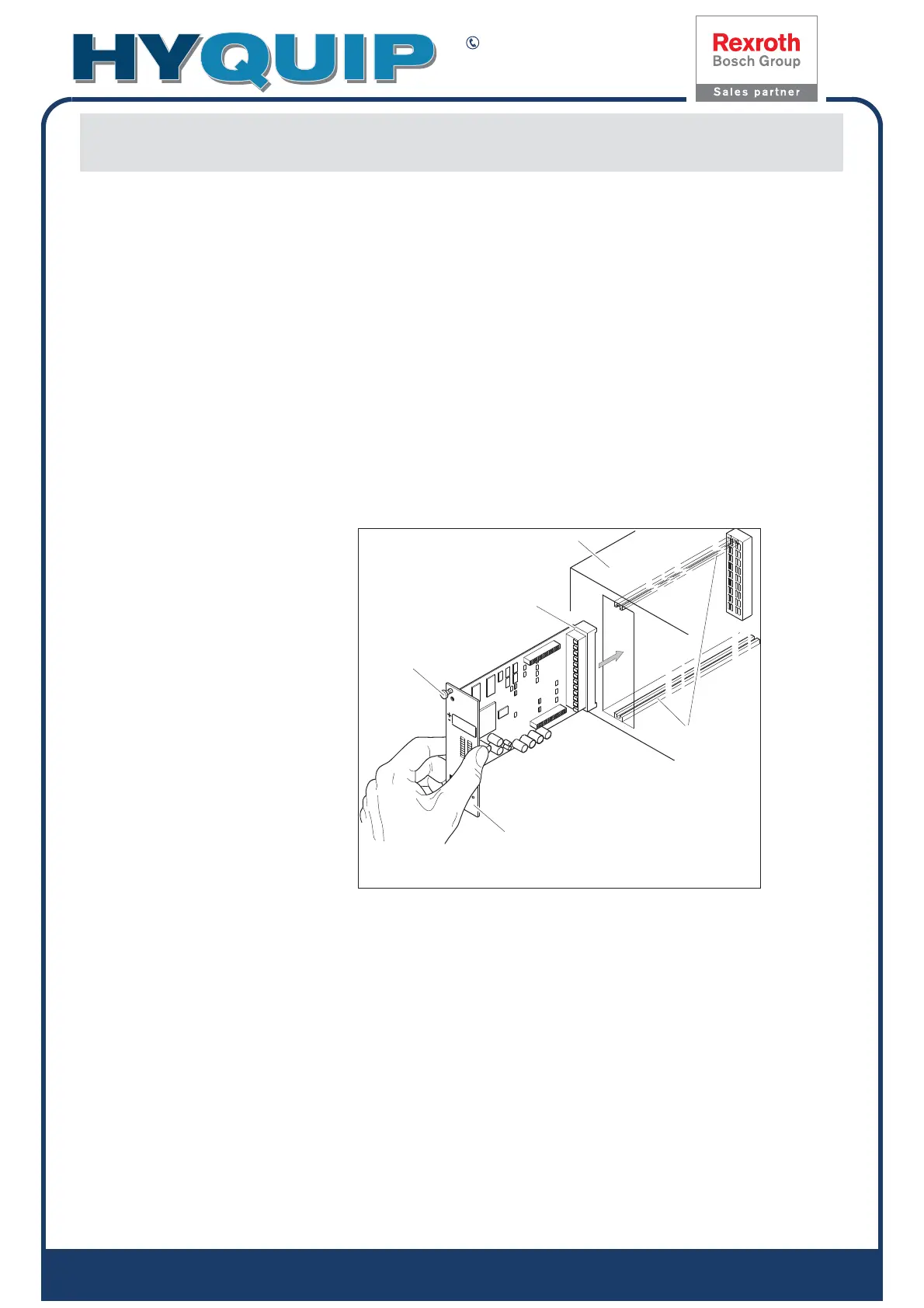

Fig. 2 Installing the controller card
¾ Tighten the two mounting screws on the front panel.
9 The controller card is now correctly installed.
