36/48 Bosch Rexroth AG | Hydraulics Installation and operation | RE 30523-B/09.13
4 Operating the VSPD

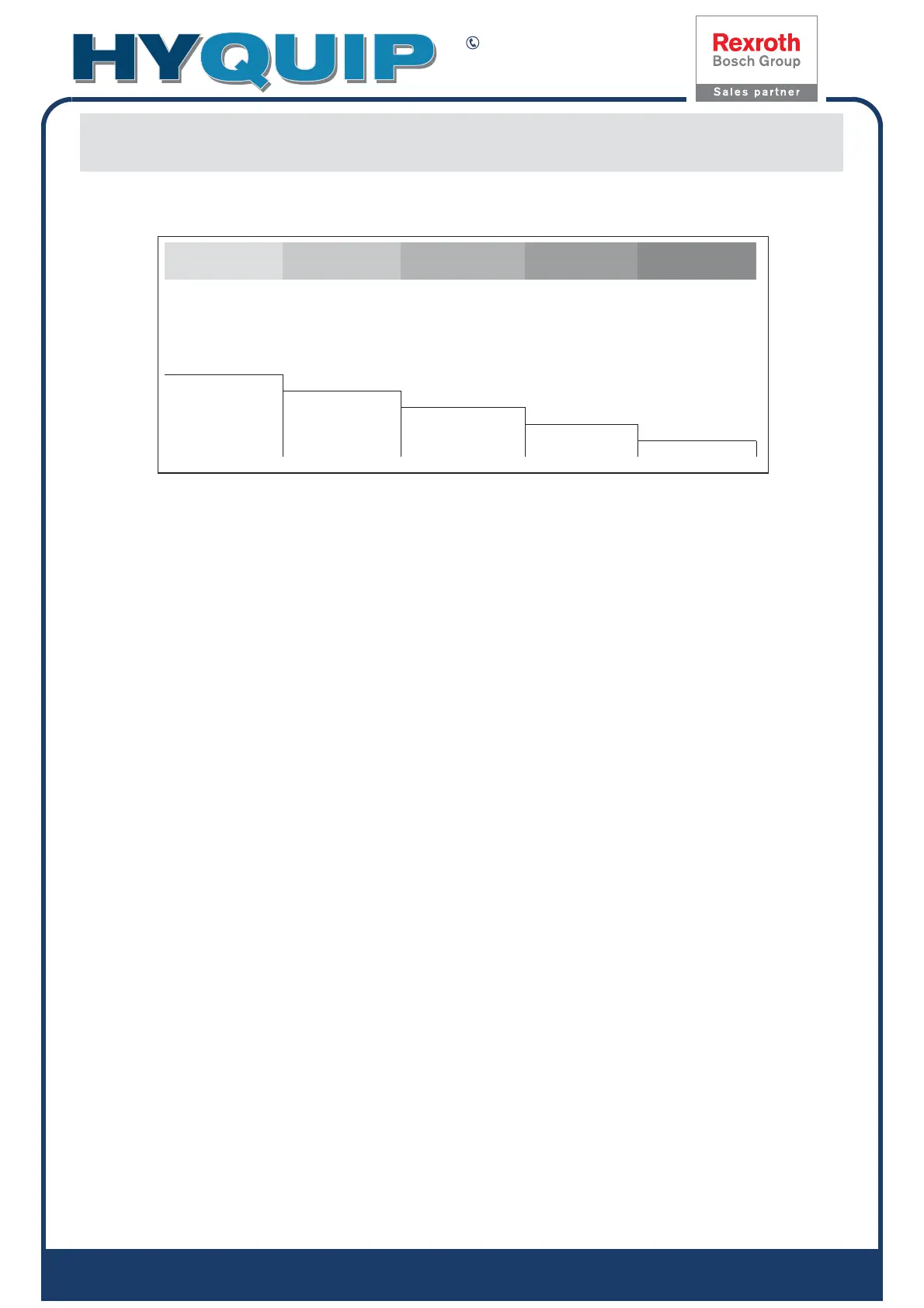

The following figure illustrates the menu level structure.
Ebene 1 Ebene 2 Ebene 3 Ebene 4 Ebene 5
One Level down: ŷŹENTER ŷŹENTER ŷŹENTER ŷŹENTER
One Level up: ŻŷESCAPE ŻŷESCAPE ŻŷESCAPE ŻŷESCAPE
Parameter
Block 1-32
Loop 1
parameter
command
Fig. 18 Example of the menu levels in configuration mode
Changing from Run Mode to Configuration Mode – "EDIT Param-
eters":
The card must be in run mode.
The display will show scrolling text to display the manufacturer’s name, the software
version for the controller, or a custom configured text string.
¾ Press and hold "Enter“ and "ESCAPE“ simultaneously for at least 2 seconds
(except when in "EDIT Parameter” mode, see above) until the display reads "Set-
up”.
9 The controller card is now in "EDIT Parameter" mode.
Changing from Run Mode to Configuration Mode:
The card must be in run mode.
The display will show scrolling text to display the manufacturer’s name, the software
version for the controller, or a custom configured text string.
9 Press and hold "Enter" and "ESCAPE" simultaneously for at least 2 seconds
(except when in "EDIT Parameter“ mode, see above) until the display reads
“Setup“.
