Bose ControlSpace ESP-88C - Page 79

79

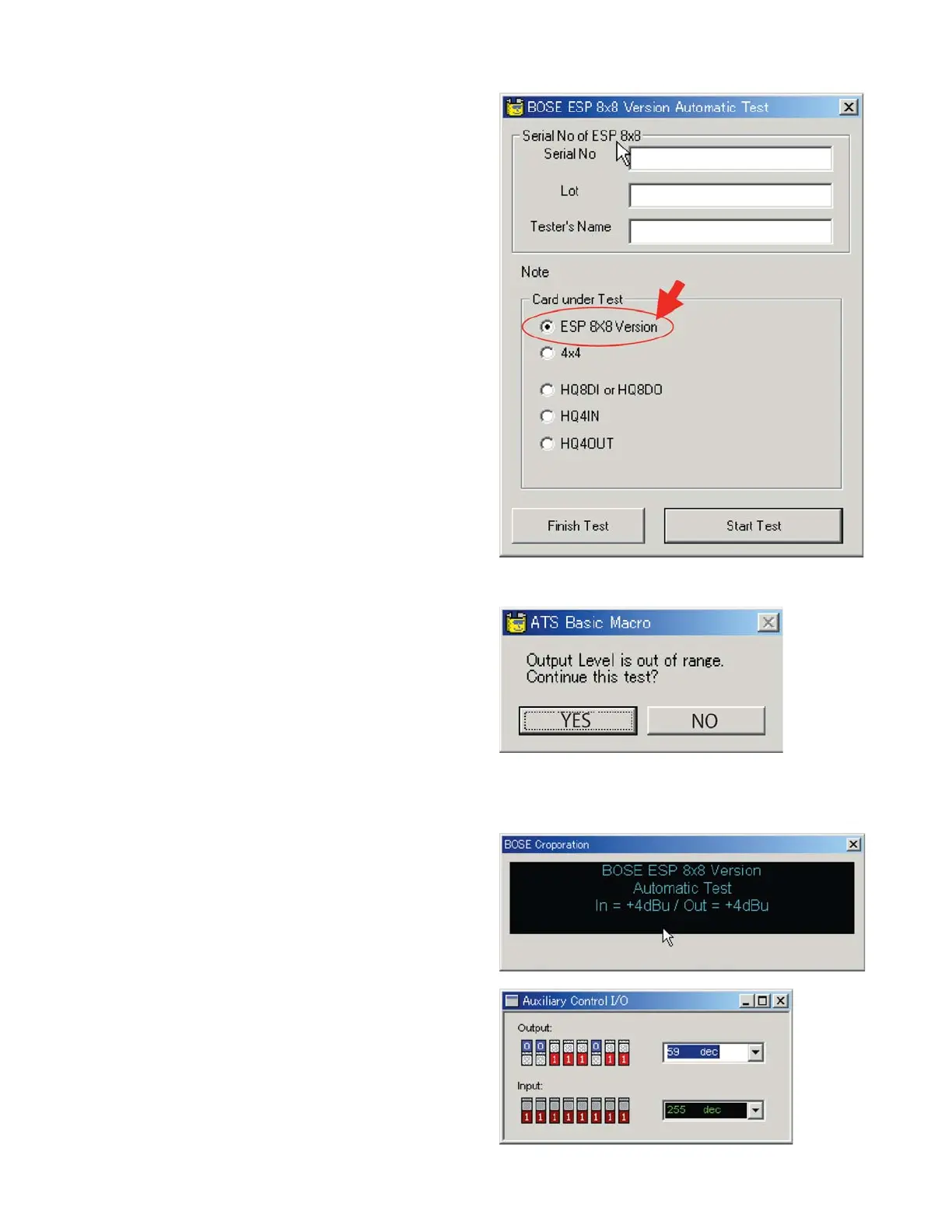

4-3. The order of testing. The table below lists the tests that are automatically performed by the
ATS-2 test station test macro.
These tests are added when the card is a 4x4 Series II.
TEST PROCEDURES
No
Test
No
Test Gain or test item Test Channel 1k 20 20k
1 Input 1/2 ~ Output 1/2 Do Do Do
2 Input 3/4 ~ Output 3/4 Do Do Do
3 Input 5/6 ~ Output 5/6 Do Do Do
4
5-1 Input 0dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do Do Do
5 Input 1/2 ~ Output 1/2 Do - -
6 Input 3/4 ~ Output 3/4 Do - -
7 Input 5/6 ~ Output 5/6 Do - -
8
5-2 Input +14dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
9 Input 1/2 ~ Output 1/2 Do - -
10 Input 3/4 ~ Output 3/4 Do - -
11 Input 5/6 ~ Output 5/6 Do - -
12
5-3 Input +24dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
13 Input 1/2 ~ Output 1/2 Do - -
14 Input 3/4 ~ Output 3/4 Do - -
15 Input 5/6 ~ Output 5/6 Do - -
16
5-4 Input +42dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
17 Input 1/2 ~ Output 1/2 Do Do Do
18 Input 3/4 ~ Output 3/4 Do Do Do
19 Input 5/6 ~ Output 5/6 Do Do Do
20
5-5 Input 48dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do Do Do
21 Input 1/2 ~ Output 1/2 Do - -
22 Input 3/4 ~ Output 3/4 Do - -
23 Input 5/6 ~ Output 5/6 Do - -
24
5-6 Input 54dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
25 Input 1/2 ~ Output 1/2 Do Do Do
26 Input 3/4 ~ Output 3/4 Do Do Do
27 Input 5/6 ~ Output 5/6 Do Do Do
28
5-7 Input 64dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do Do Do
29 Input 1/2 ~ Output 1/2 Do Do Do
30 Input 3/4 ~ Output 3/4 Do Do Do
31 Input 5/6 ~ Output 5/6 Do Do Do
32
5-8 Input 0dB / Output -10dBu
Input 7/8 ~ Output 7/8 Do Do Do
33 6 Phantom test (Hand Pass/Fail) Input 1 ~ 8 - - -
34 7 GIO GIO bit 0 ~ 7 - - -
35 8 Time ESP internal time - - -
36 9 LAN
37 10 RS232C
38 11 RS485(Hand Pass/Fail)
9a Input 1/2 ~ Output 1/2 Do - -
10a Input 3/4 ~ Output 3/4 Do - -
11a Input 5/6 ~ Output 5/6 Do - -
12a
5-3-1 Input +30dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
9b Input 1/2 ~ Output 1/2 Do - -
10b Input 3/4 ~ Output 3/4 Do - -
11b Input 5/6 ~ Output 5/6 Do - -
12b
5-3-2 Input +36dB / Output +4dBu
Input 7/8 ~ Output 7/8 Do - -
