Bose FreeSpace IZA 190-HZ Service Manual

13

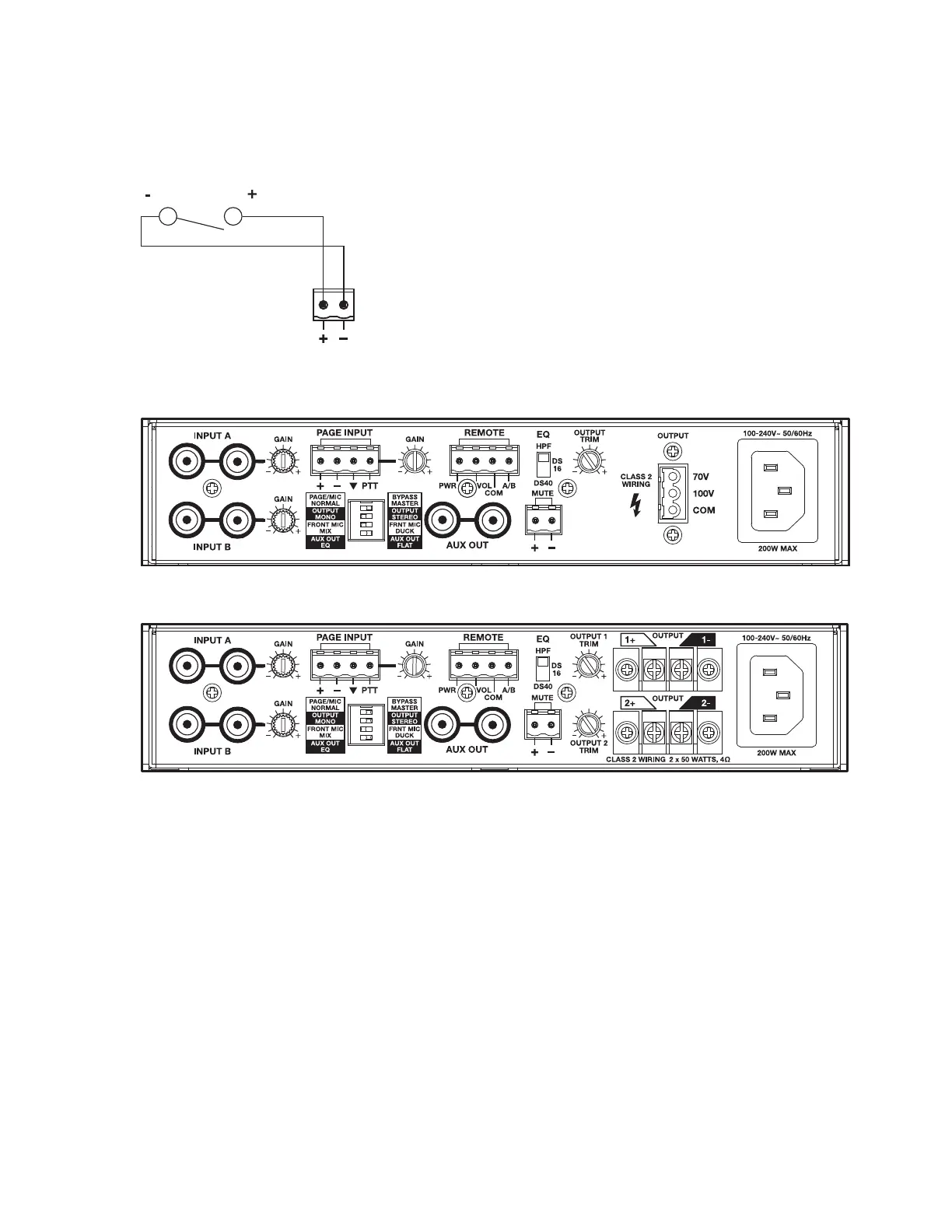

Mute with Standard Contact Closure
The amplifier is designed to mute all outputs (including AUX OUT) when a trigger is detected via
the MUTE connector. This is triggered from a standard contact closure. Use the included 2-pin
Euroblock.
Setup – Rear Panel Controls
Amplifier mode DIP switches
Page/Mic Normal – Bypass Master
Determines if page input source will follow the master level output or can be set at an indepen-
dent output level to ensure announcements are heard.
Output Mono - Output Stereo
Determines if stereo input sources will be output in mono or stereo via loudspeaker connectors
and Aux Out RCA connectors.
Note: On the IZA 250-LZ amplifier, Output 1 is the left channel and Output 2 is the right channel
when set to Output STEREO. On the IZA 190-HZ, the left channel is routed to the loudspeaker
output when set to OUTPUT STEREO.
Front Mic Mix - Front Mic Duck
Determines if front-panel microphone input will be mixed in with music source or if the music
output level will be automatically lowered (“ducked”) when someone speaks into microphone.
PRODUCT DESCRIPTION
FreeSpace IZA 190-HZ
FreeSpace IZA 250-LZ

Bose FreeSpace IZA 190-HZ Specifications

General

Amplifier class	D
RMS rated power	90 W
Channels quantity	1 channels
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
XLR in	Yes
Line inputs (RCA)	2
Line outputs (RCA)	1
Speakers connectivity type	RCA
Product color	Silver
Rack capacity	1U
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power protection features	Overheating, Short circuit
Power consumption (typical)	15 W
Package weight	4100 g

Weight and Dimensions

Depth	310 mm
Width	214 mm
Height	45 mm
Weight	3200 g
