Bose FreeSpace IZA 190-HZ Service Manual

18
PACKAGING PART LIST
FreeSpace
®
IZA / ZA System (refer to Figure 1)

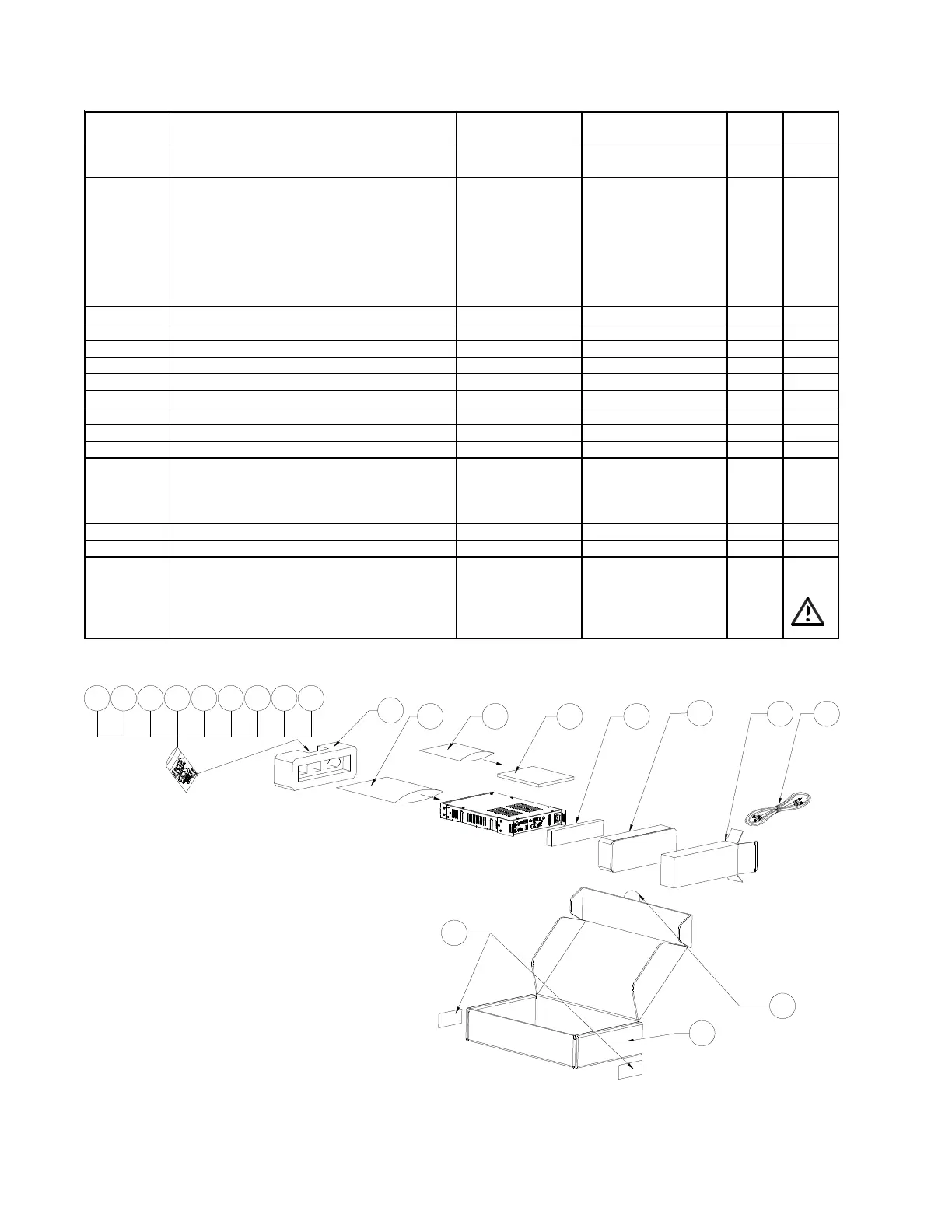

Figure 1. FreeSpace IZA / ZA System Packing View
1ABCDEFGH
2
3
4
56
7
8
9
10
11
12
Item
Number
Description Bose
©
P/N
V
endor P/N Qty. Note
1 CONNECTOR KIT
(
INCLUDES ITEMS A
-
H BELOW
)
348624-001S SVC-
LOMIC04+CONK
A ZIP BAG - 1497-5152+0 1 4
B FEMALE PLUG, 4P, GREEN - 2113-3147+0 1 4
C FEMALE PLUG, 4P, BLACK - 2113-3365+0 1 4
D FEMALE PLUG, 2P, BLACK - 2113-3366+0 1 4
E FEMALE PLUG, 3P, GREEN - 2113-3367+0 1 4
F RUBBER FOOT 348623-0010 4157-1981+0 4
G SPADE LUGS, BLUE - 2113-3391+0 4 4
H SPADE LUGS, RED - 2113-3390+0 4 4
2 PE FOAM, FRONT 350489-0010 1493-2391+0 1
3 POLY BAG - 1497-7132+0 1 4
4 MANUAL POLYBAG - 1497-1062+0 1 4
5 GUIDE, INSTALL / USER, FS ZONE AMP 350900-0010 - 1
6 INNER PAD 348620-0010 1451-0650+1 1
7 PE FOAM, REAR 350490-0010 1493-2511+0 1
8 WIRE BOX 348621-0010 1439
-
4101+1-1 1
9 RCA CABLE - 7013-2380+0 1
10 TAPE, CLEA
R
, CIRCLE - 3100-6801+1 1 4
11 CARTON BOX, FS IZA 190
-
HZ 348622-0010 1439
-
4201+0-2 1
CARTON BOX, FS ZA 190
-
HZ 350486-0010 1439
-
6501+0-2
CARTON BOX, FS IZA 250
-
LZ 350487-0010 1439
-
6601+0-2
CARTON BOX, FS ZA 250
-
LZ 350488-0010 1439
-
6701+0-2
12 SKU LABEL - - 1 4
- AUS/NZ WARR SLIP SHEET 8.5 X 5.5 355731-0010 - 1
- AC POWER CORD, US/CAN 350745-0010 - 1 3
AC POWER CORD, EURO 350747-0010 - 1
AC POWER CORD, JAPAN 350749-0010 - 1
AC POWER CORD, UK 350748-0010 - 1
AC POWER CORD, AUS 350746-0010 - 1
Note: Not all versions of the amplifiers use all of the connectors or spade lugs.


Bose FreeSpace IZA 190-HZ Specifications

General

Amplifier class	D
RMS rated power	90 W
Channels quantity	1 channels
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
XLR in	Yes
Line inputs (RCA)	2
Line outputs (RCA)	1
Speakers connectivity type	RCA
Product color	Silver
Rack capacity	1U
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power protection features	Overheating, Short circuit
Power consumption (typical)	15 W
Package weight	4100 g

Weight and Dimensions

Depth	310 mm
Width	214 mm
Height	45 mm
Weight	3200 g
