SYSTEM SETUP
Extending the Loudspeaker Array

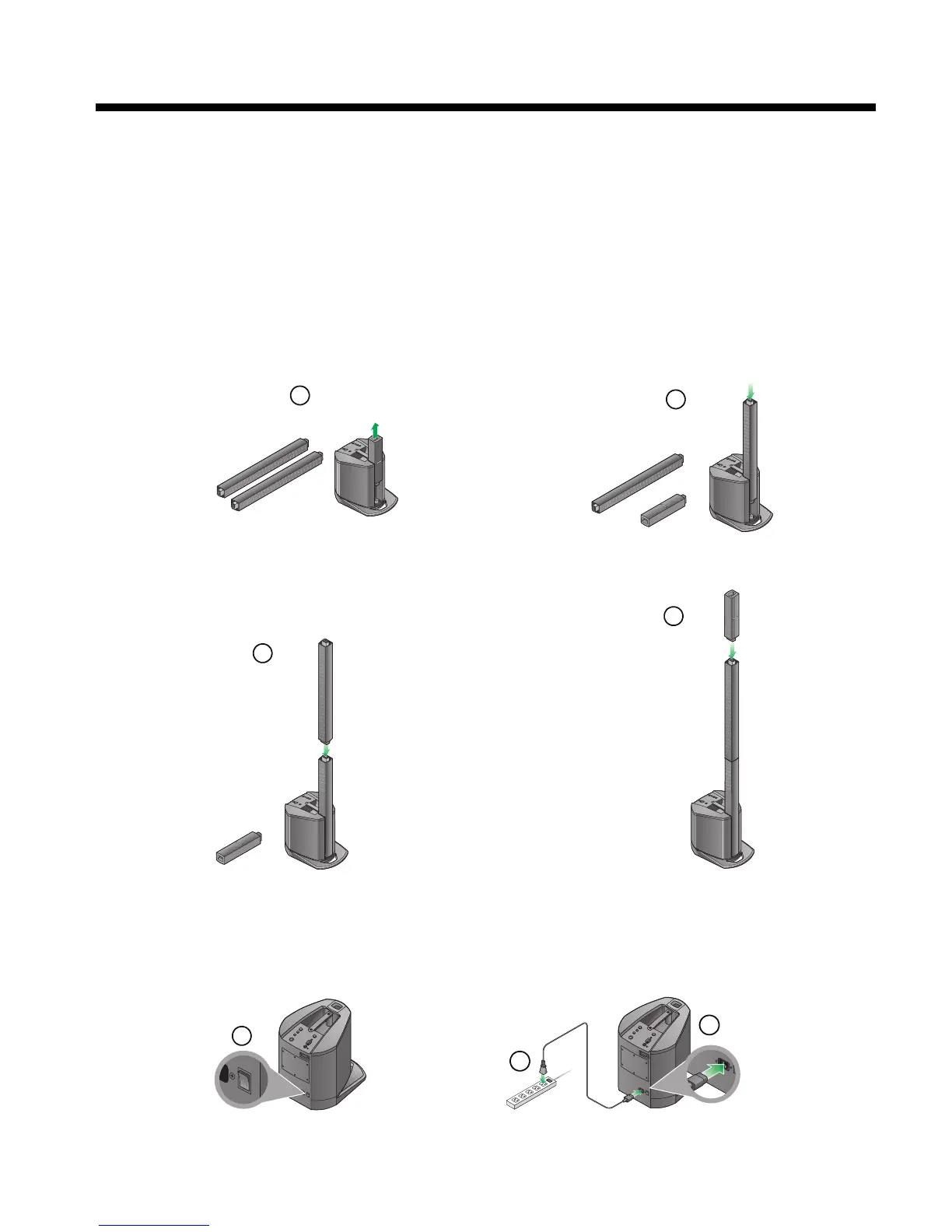

Once you have set the system in place:
1. Slide the Loudspeaker Array up and out of the Power Stand and temporarily lay
it aside.
Note: The two L1
®
Compact Extensions are identical to each other. Either one can
be used on the top or bottom, but if one extension is used, both must be used.
2. Align the plug on the bottom of the Extension with the socket on the Power
Stand, then slide the extension into the power stand.
Be sure to fully insert the extension into the Power Stand socket to assure
stability and a good connection.
3. Align the remaining Extension and push it firmly in place.
4. Align the Loudspeaker Array and push it firmly in place.
Connecting power to the system
1. Make sure the power switch is off (down position).
2. Plug one end of the power cord into the connector on the power stand.
3. Plug the other end into a live electrical receptacle.
4. Before turning the system on, connect your sound sources. See “Operating
Information” on page 6, and “Plugging in your sources” on page 7.
1
2
3
4
1
2
3
CajunOG.book Page 5 Monday, December 15, 2008 11:15 AM

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
