Bose L1 Compact User Manual

6
OPERATING INFORMATION

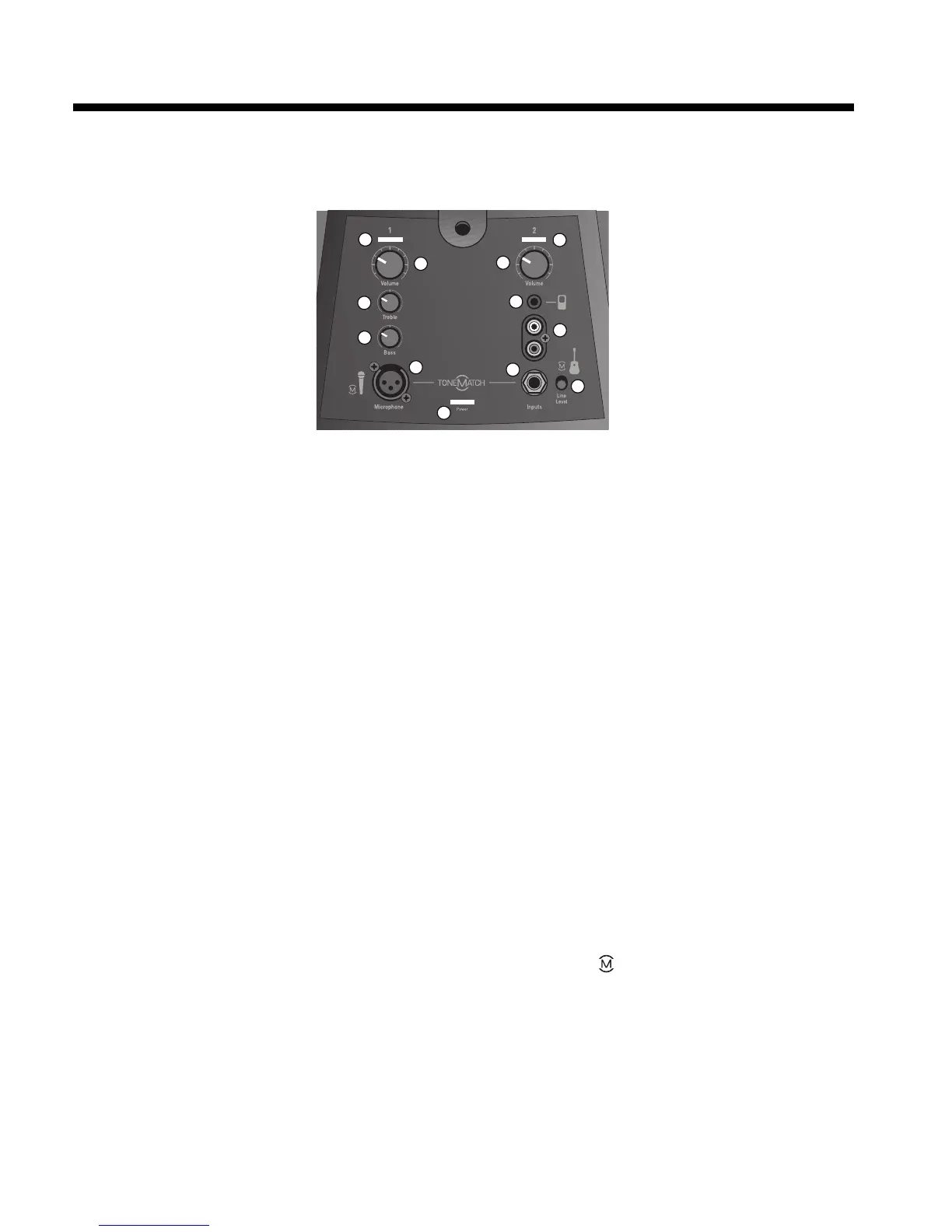

Connections and controls
The power stand control panel provides all the necessary connectors, controls, and indicators
for operation.
1
2
3
4
5
6
7
8
9
10
11
12
Channel 1 (Microphone input) Channel 2 (Utility channel – multiple input)
The channel 1 input is for use only with a
microphone. Integrated ToneMatch
®
signal
processing provides a high level of tone
customization to provide a listening experience
that most musicians can only achieve using a
recording studio.
6. Signal/Clip indicator – Displays the input
signal status in color.
• Green: Input signal present
• Red: Input signal clipping
1. Signal/Clip indicator – Displays the input
signal status in color.
• Green: Input signal present
• Red: Input signal clipping
7. Volume control – Adjusts the overall volume
of all input sources connected to Channel 2.
2. Volume control – Adjusts the volume of
your microphone.
8.
⅛-inch stereo input – Balanced analog input
for connecting audio sources such as portable
mp3 players, satellite radio, laptop computers,
video projectors, and smart boards.
3. Treble control – Adjusts the amount of
treble on your microphone.
9. RCA stereo input – Analog input for connect-
ing audio sources such as DVD players, VCR
players, video game consoles, DJ mixers,
Keyboards and other instruments. For best
results, connect both the left and right signals.
4. Bass control – Adjusts the amount bass on
your microphone.
10. ¼-inch input – Balanced analog input for
connecting guitars and other instruments.
Accepts either ¼-inch TRS balanced or TS
unbalanced cables.
5. Microphone input – Analog input for
connecting a balanced XLR microphone cable.
A ToneMatch
®
microphone preset is built in.
11. ToneMatch
®
switch – When connecting an
acoustic guitar to the ¼-inch input, move the
switch to the position to enable a
ToneMatch
®
preset. When connecting anything
other than an acoustic guitar to the ¼-inch
input, move the switch down to the Line Level
position.
12. Power LED – Indicates power status.
Blue: Power on
Cajun_AppOperation.fm Page 6 Tuesday, January 6, 2009 3:12 PM

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
