Bose L1 Pro16 Service Manual

16
I/O Panel Assy Exploded View
20
21
22
24
25
26
27
29
28
30
31
32
33
34
35
36
37
38
40
39
41
42
43
44
45
47
46
48
49
50
53
54
51
52
23
58
55
19
18
56
17
57
62
60
64
59
66
65
69
15
61
63
74
73
72
67
70
1
2
3
4
71
5
7
6
8
68
10
9
11
12
14
13
16

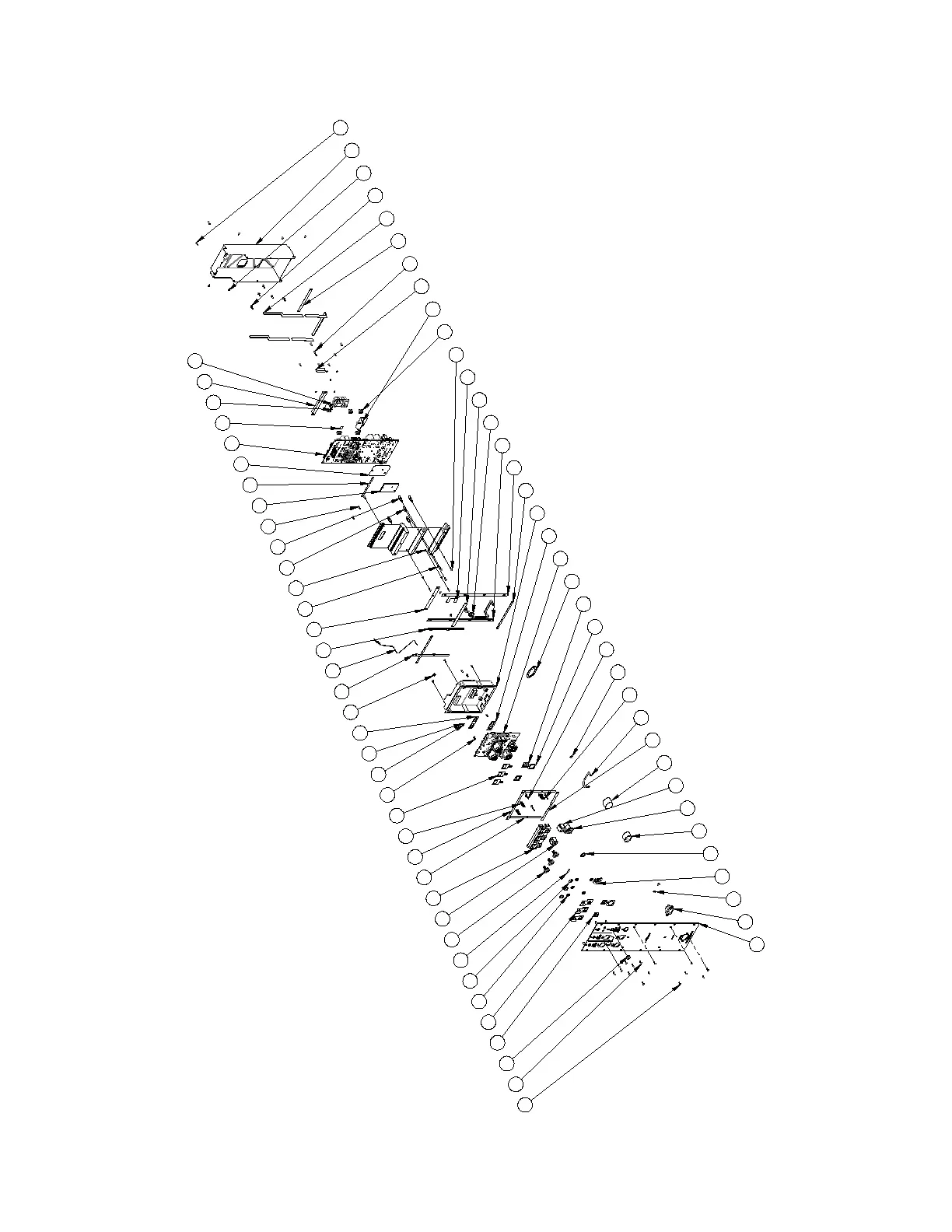

Figure 3. L1 Pro16 I/O Panel Assy Exploded View

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
