DISASSEMBLY PROCEDURE
1.4 Use your hands and lift up on the
Enclosure bottom as indicated in Figure 9.
2. Grille Removal
2.1 Perform procedure 1.
2.2 Pull the Grille out gently. Figure 10.
Note: When installing the Grille, make sure
the Grille inserted into the Grille guides.
3. I/O Panel Assy Removal
3.1 Remove the 12 screws securing the I/O
panel assy as indicated in Figure 11.

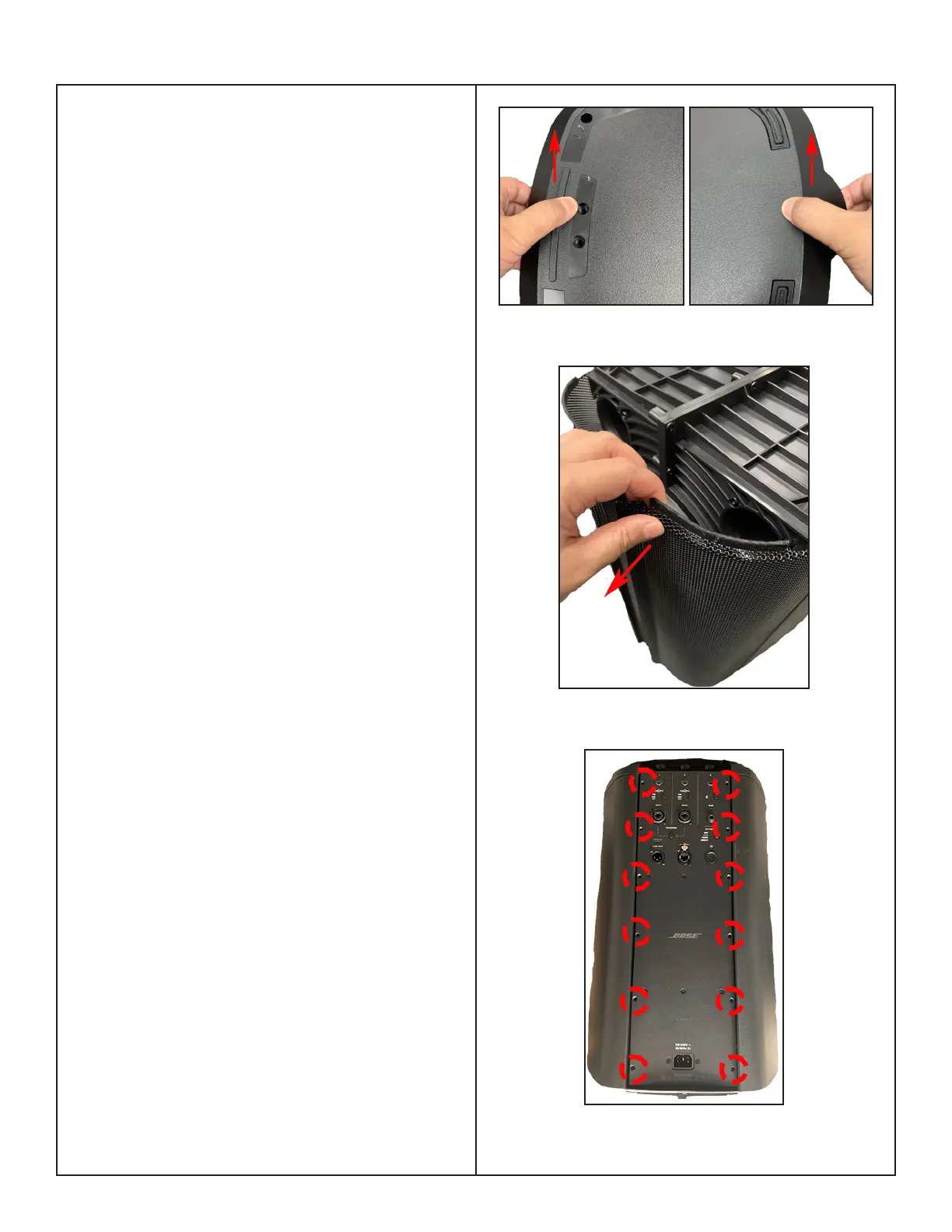

Figure 9. Enclosure Bottom Removal
Figure 10. Grille Removal
Figure 11. I/O Panel Assy Screws Removal

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
