Bose L1 Pro16 Service Manual

42
DISASSEMBLY PROCEDURE
6. Volume Board Removal
6.1 Perform step 3.
6.2 Remove the 4 screws that secure the
Volume board as indicated in Figure 22.
6.3 Pull the 3 Volume knobs out and lift o󰀨 the
board.
7. Woofer Removal
7.1 Perform step 2.
7.2 Remove the 12 screws securing the
Woofer as indicated in Figure 23.
7.3 Detach the 2 Cable harnesses from the
Woofer by pressing the white fastener.
Figure 24.
Note: Be careful the Woofer is very heavy.
L1 Pro16 Array Procedures
1. Grille Removal
1.1 Remove the 8 screws that secure the
Endcaps from both ends of the Line Array as
indicated in Figure 25.

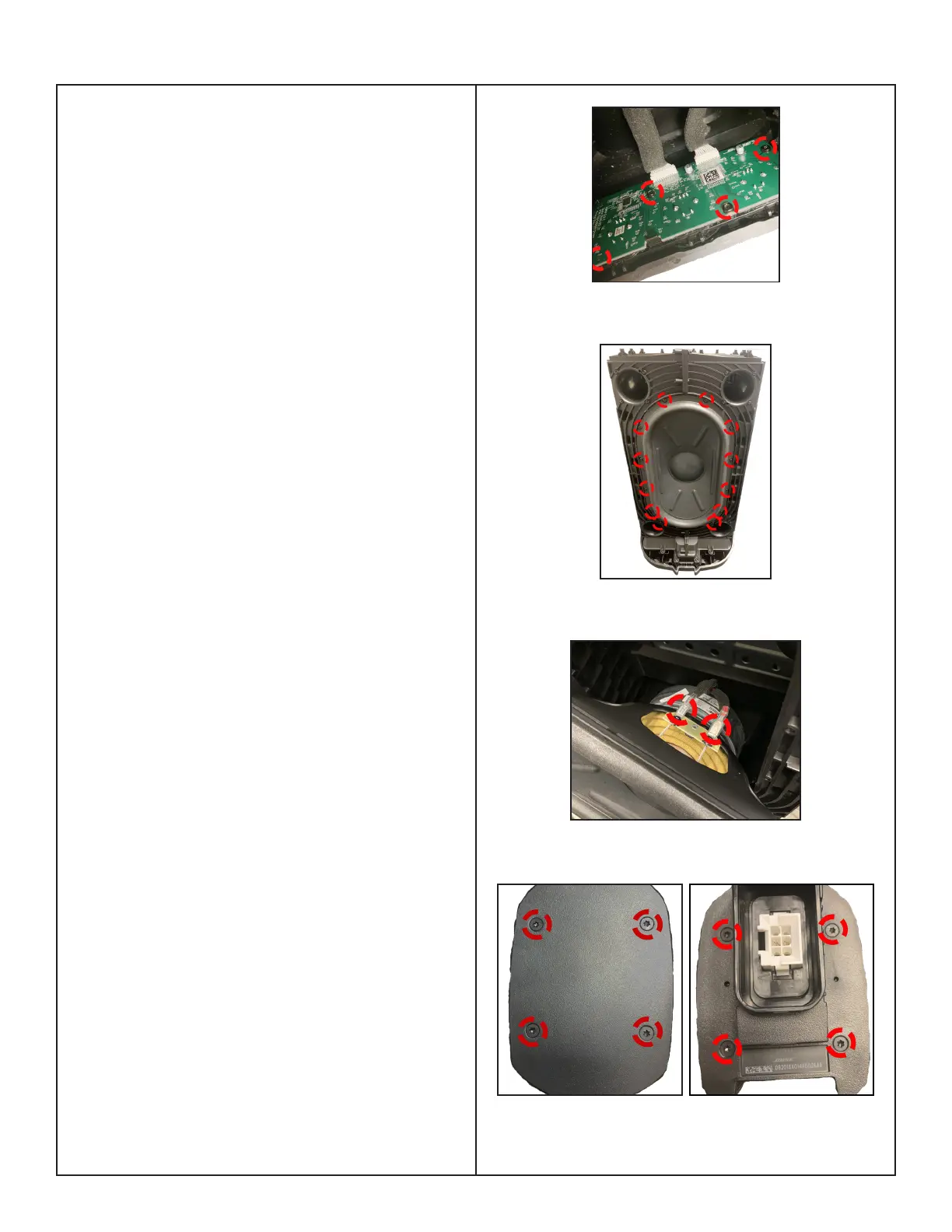

Figure 23. Woofer Screws Removal
Figure 24. Press the White Fastener
Figure 25. Both Ends of Endcaps Screws
Removal
Figure 22. Volume Board Screws Removal

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
