Bose L1 Pro16 Service Manual

43
DISASSEMBLY PROCEDURE
1.2 Lift o󰀨 the Top and Lower endcap. Figure
26.
Note: Be careful the cable of Lower endcap is
very short.
1.3 Grasp the Grille and carefully slide the
grille o󰀨 of the ba󰀪e. Figure 27.
Re-assembly Note: Be sure there is su󰀩cient
gasket material on the Grille to prevent buzzes
as the red arrow indicated in Figure 28.
Gasket material PN: 843112-0101
Perform the Array sweep tests after replacing
the Grille.
2. Drivers Removal
2.1 Perform procedure 1.
2.2 Remove the 4 screws securing the 1
Driver to the Ba󰀪e as indicated in Figure 29
(left).
2.3 Detach the Driver's cable by pressing the
white fastener. Figure 29 (right).
Array Extensions
Note: The Array extensions are not repair-
able.
If damaged they must be replaced.

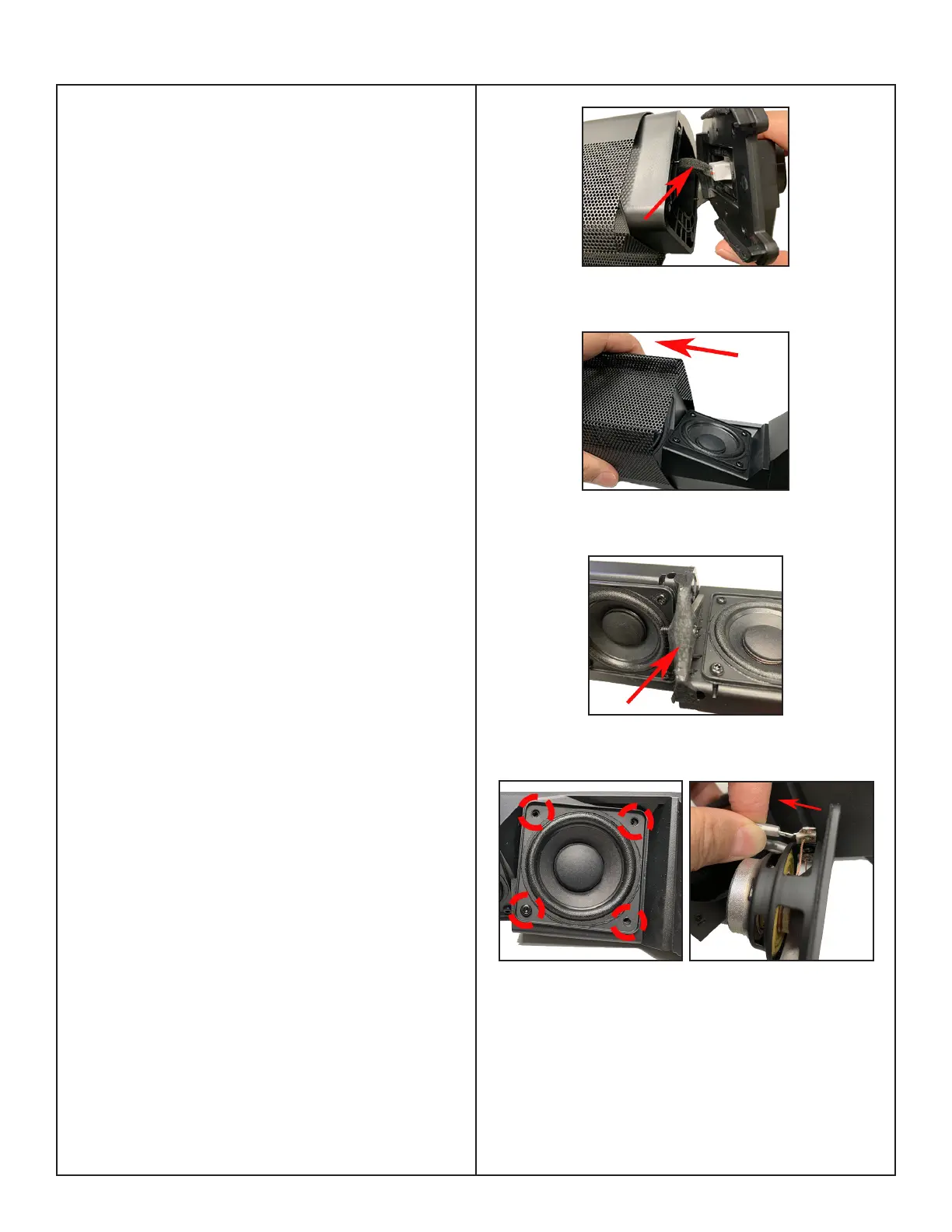

Figure 26. Lower Endcap Removal
Figure 27. Array Grille Removal
Figure 28. Gasket Material Locations
Figure 29. Driver Screws & Cable Removal

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
