DISASSEMBLY PROCEDURE
2. Drivers Removal
2.1 Perform procedure 1.
2.2 Remove the 4 screws securing the 1
Driver to the Ba󰀪e as indicated in Figure 19
(left).
2.3 Detach the Driver's cable by pressing the
white fastener. Figure 19 (right).
L1 Pro32 Lower Mid-high Array Procedures
1. Grille Removal
1.1 Remove the 8 screws that secure the
Endcaps from both ends of the Upper Array as
indicated in Figure 20.
1.2 Same procedures as Upper Array
disassembly from step 1.2 to step 2.3.

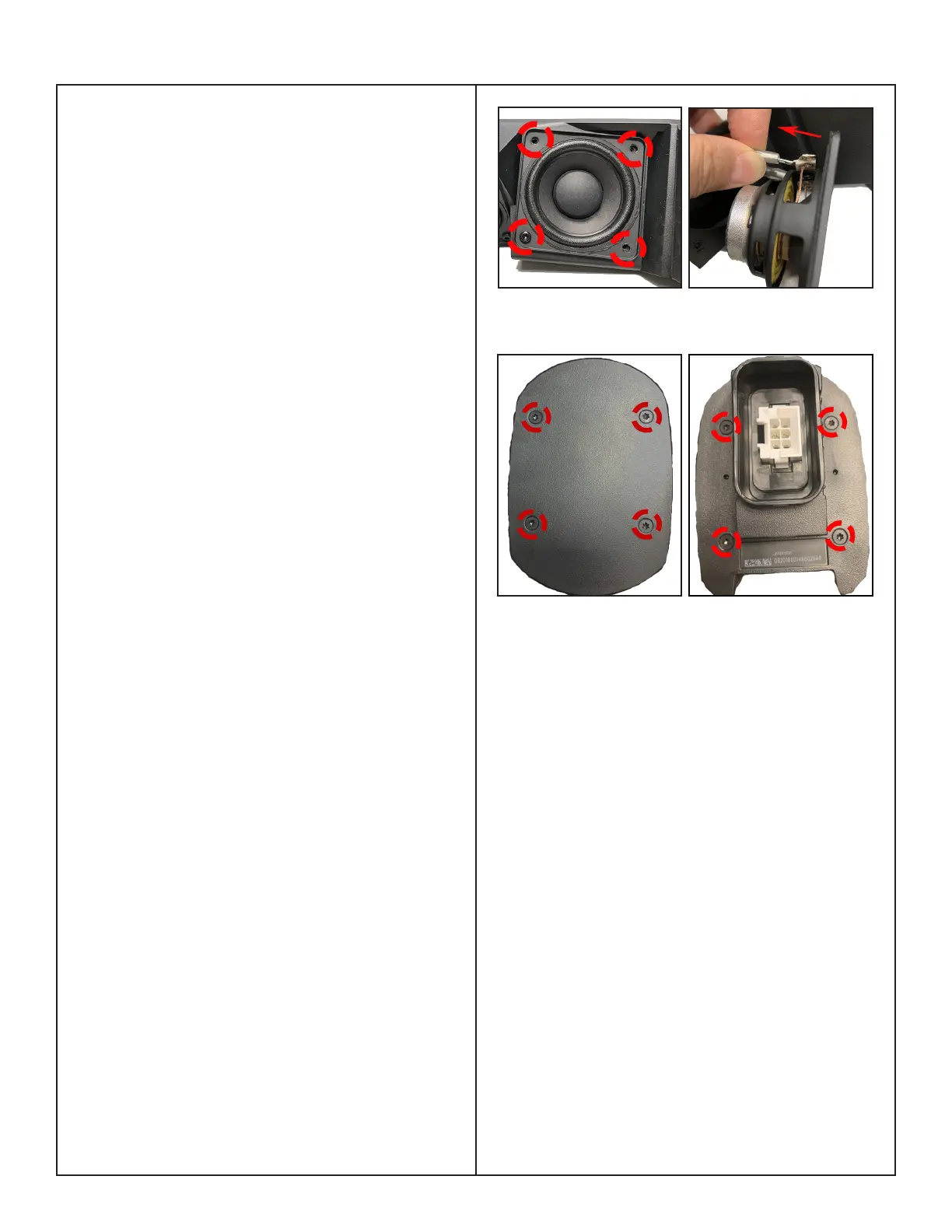

Figure 19. Driver Screws & Cable Removal
Figure 20. Both Ends of Endcaps Screws
Removal

Bose L1 Pro32 Specifications

General

Coverage Pattern	180° H x 0° V
Bluetooth	Yes
Battery Life	Not applicable
Type	Portable Line Array System
Maximum SPL	126dB
System Power	2000W peak
Inputs	2 x XLR-1/4" combo
Outputs	XLR line output
