Setup

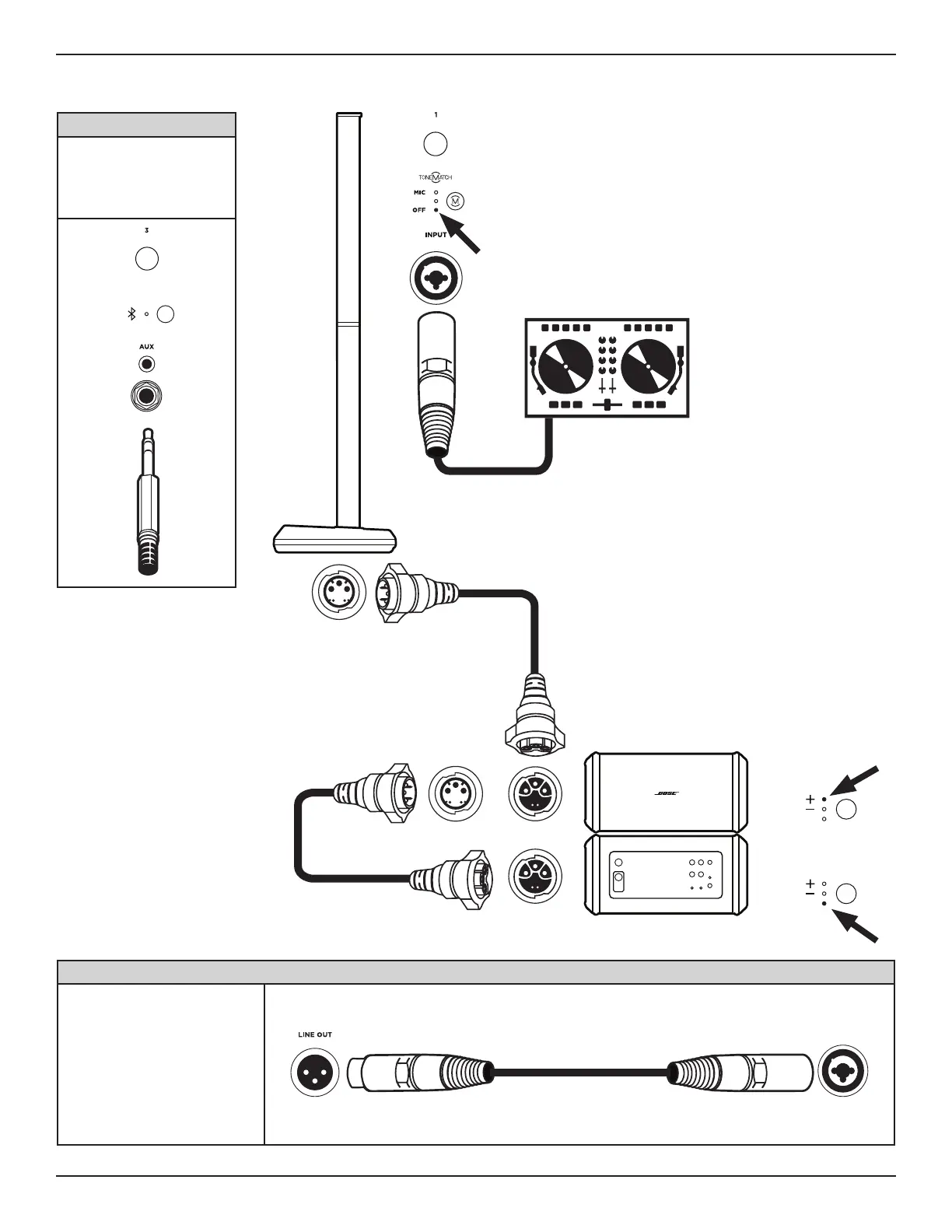

DJ Mono (with Two Stacked Cardioid Subs)
*Alternate Connection
This scenario may require a
specialized cable or adapter.
Connect a TRS cable to the
TRS Line Input to allow for a
wider range of volume control.
MUTE MUTE MUTE
INST INST
*
**
MUTE
INST
PHASE/PATTERN
CARDIOID
PHASE/PATTERN
CARDIOID
**Alternate Connection
The L1 Pro32 can be connected to
a Sub1/Sub2 by analog connection.
Two Subs can also be connected
together by analog connection.
When connecting two Subs
together by analog connection,
connect the Line Output of the first
Sub to the Line Input of the second
Sub with an XLR cable. Subs set up
without a SubMatch cable must be
connected to a power source.
LINE IN 1
(Facing performer)
(Facing audience)

Bose L1 Pro32 Specifications

General

Coverage Pattern	180° H x 0° V
Bluetooth	Yes
Battery Life	Not applicable
Type	Portable Line Array System
Maximum SPL	126dB
System Power	2000W peak
Inputs	2 x XLR-1/4" combo
Outputs	XLR line output
