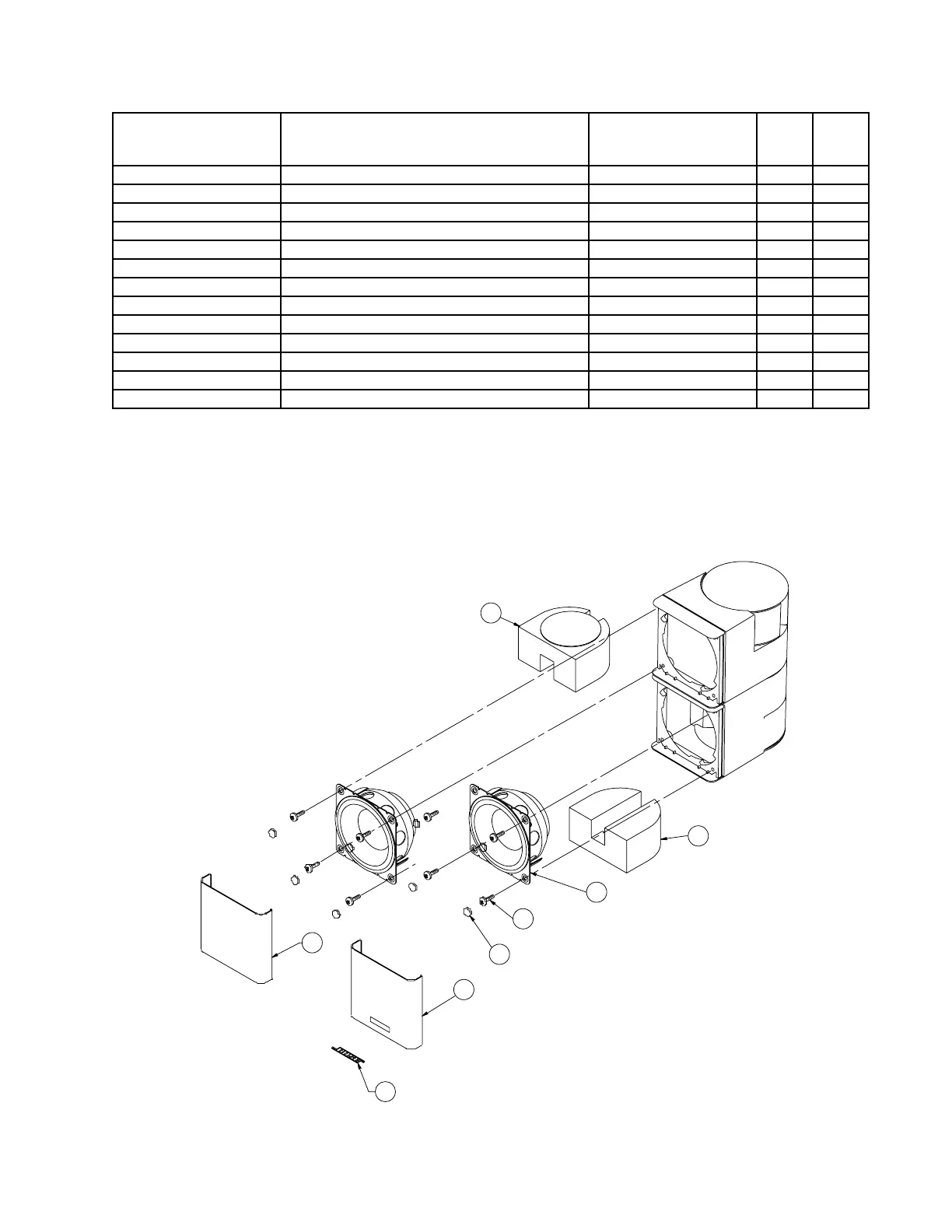

Figure 22. Satellite Exploded View
SATELLITE PART LIST
3
1
2
4
5
7
6
7
Item
Number
Description Part
Number
Qty
Per
Assy
Note
1 Grille Assembly, Upper Black 192935-01 1
1 Grille Assembly, Upper White 192935-03 1
2 Grille Assembly, Lower Black 192935-02 1
2 Grille Assembly, Lower White 192935-04 1
3 Nameplate, Black 178725-01 1
3 Nameplate, White 178725-02 1
4 Twiddler™, 2.25" 273244-002 or 291636-001 2
5 Screw, Tapp, 4-16x.375, Pan, Xrec 181621-06 8
6 Grommet, Anti-Buzz 183891 8
7 Foam, Acoustic, Diecut, W/Screen 178714 2 1
- Harness Assy, Twiddler 178719 1 2
- H-Ring, Seal 178710-01 1 2
- Snap Ring, Cube 313536-001 1 2
