Bose PowerMatch PM8250 Service Manual

10

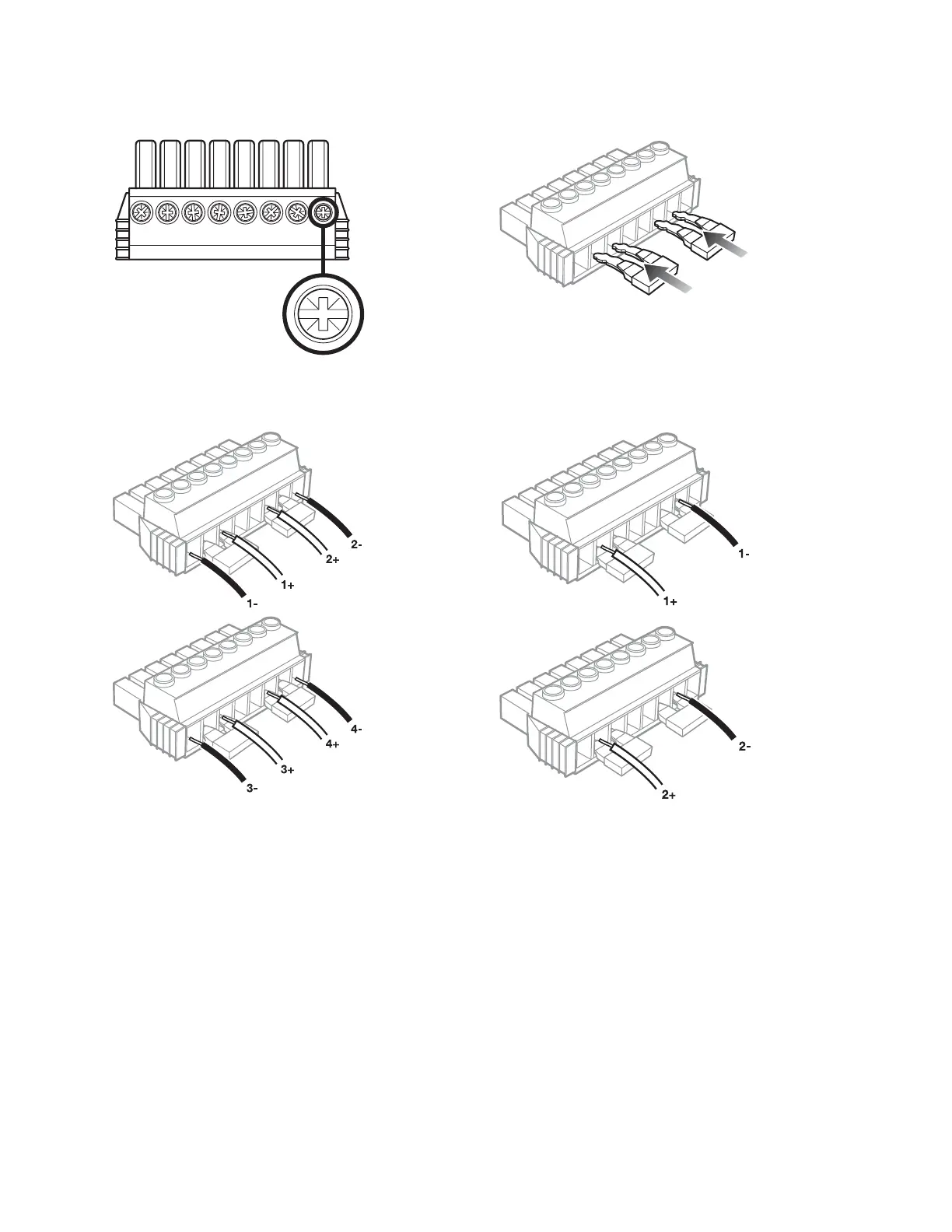

Loudspeaker Wiring for Quad Bridge
Configurations
Loudspeaker Wiring for I-Share
configurations
Shorting Jumper Positions for I-Share
and Quad Bridge Configurations
Methods for Setup Configuration
The PowerMatch
®
amplifiers allow setup and configuration via the front-panel controls for all
basic functions and recall of presets for Bose
®
Professional loudspeakers. Advanced features,
such as custom loudspeaker PEQ filters, may be accessed using the front-panel USB connec-
tion to any PC running Bose ControlSpace
®
V3.0 (or greater) software. Additionally, network
capable (N) models add the flexibility of remote setup and configuration using standard Ethernet
network equipment.
Screw Head for 8-Pin Output Connectors

Bose PowerMatch PM8250 Specifications

General

Damping factor	1000
Amplifier class	D
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	99 dB
Total Harmonic Distortion (THD)	0.4 %
Bridge-mode power output per channel (4 Ohm)	500 W
Purpose	Performance/stage
Equalizer	Yes
Product color	Black
Connectivity technology	Wired
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Speakers connectivity type	-
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	11100 g
