30

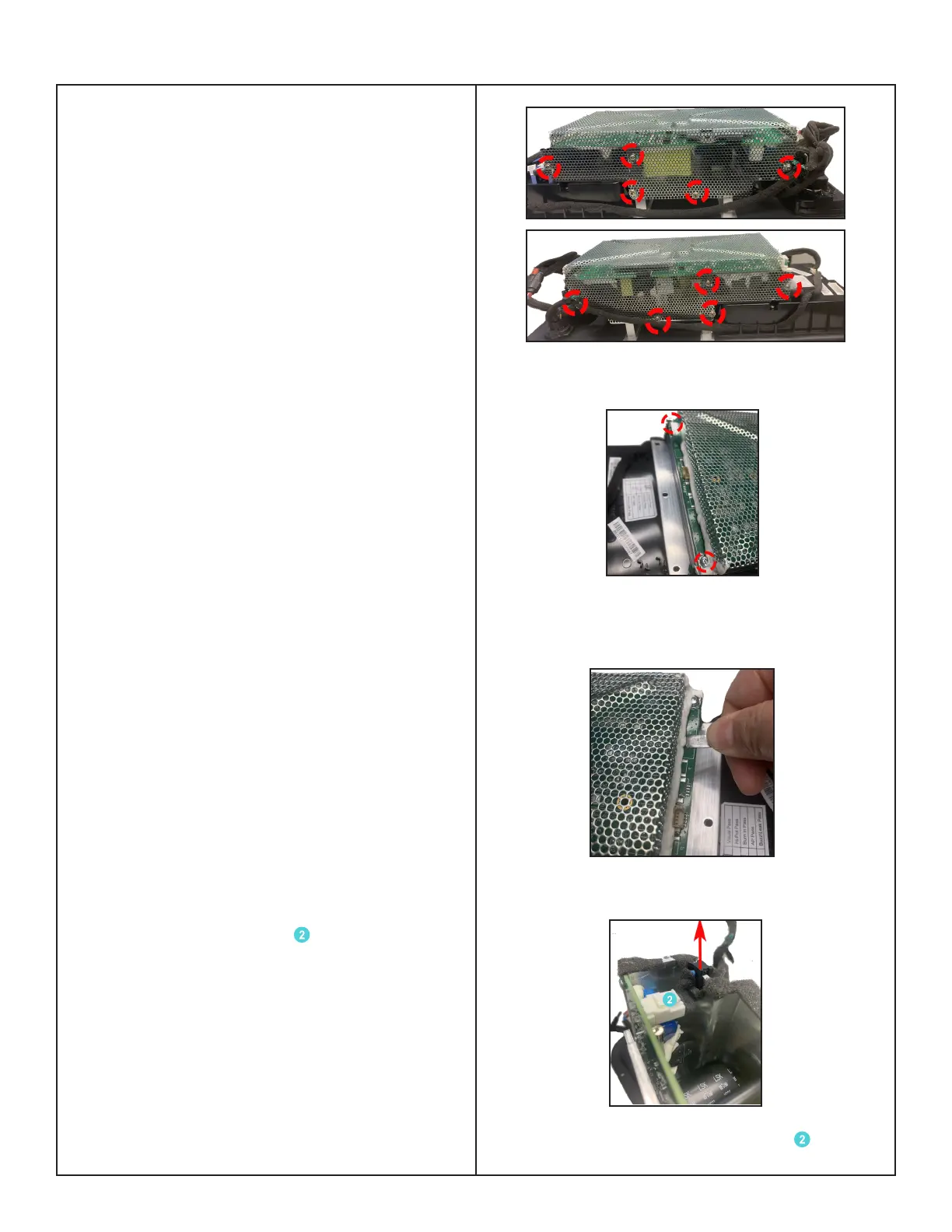

DISASSEMBLY PROCEDURE
Figure 9. Shield Cover Screws Removal 2
2.4 Remove the 12 screws that secure the
Shield cover of Power-Amp board as
indicated in Figure 8 & Figure 9.
Note: When installing the Shield cover, RTV
need to be used to prevent buzz and vibration.
2.5 Use a spudger to separate the white glue
from the edge of PCB as indicated in Figure
10.
Note: Be careful when regluing the RTV to x
the shield cover.
2.6 Disconnect the cable
2
that are attaching
the AC Plug as indicated in Figure 11.
Figure 8. Shield Cover Screws Removal 1
Figure 10. White Glue Removal
Figure 11. Disconnect Cable
2
